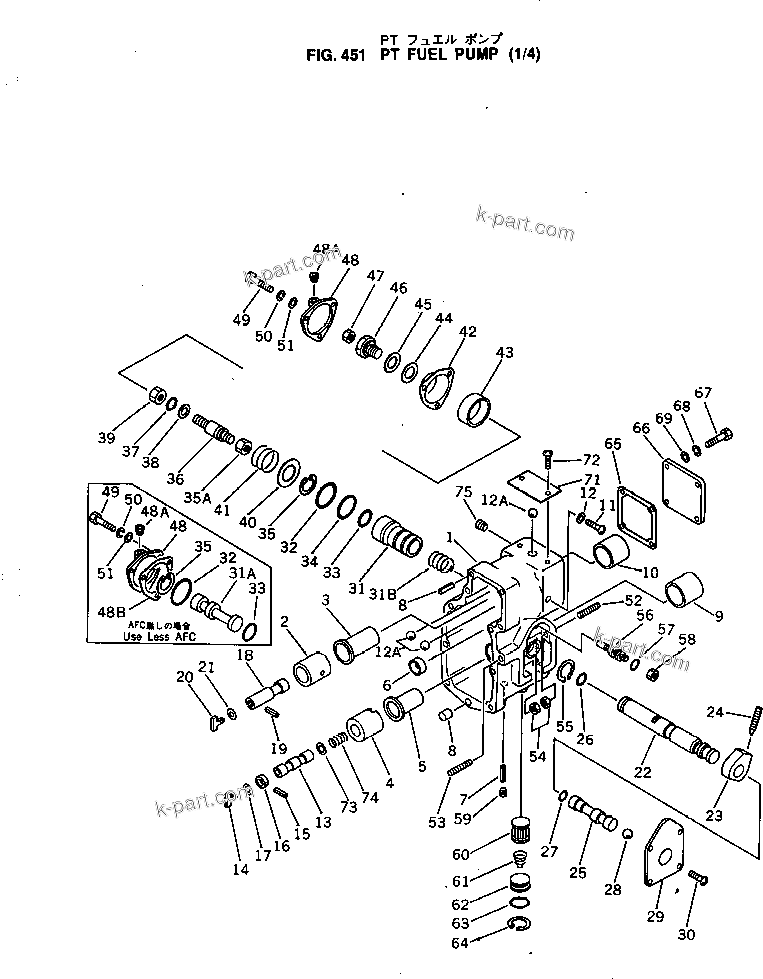

PT FUEL PUMP (1/4) (INNER PARTS) | KT-1150-1A S/N 101153-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	CU3201513	PT FUEL PUMP ASS'Y,(CODE NO.E705A)	1	SN: 128174-UP
?	CU3021966	PT FUEL PUMP ASS'Y,(CODE NO.E705)	1	SN: 127993-128173
?	CU3021966	PT FUEL PUMP ASS'Y,(CODE NO.E637)	1	SN: 127972-127972
?	CU3021966	PT FUEL PUMP ASS'Y,(CODE NO.E705)	1	SN: 127971-127971
?	CU3021966	PT FUEL PUMP ASS'Y,(CODE NO.E637)	1	SN: 124063-127970
?	CU3021966	PT FUEL PUMP ASS'Y,(CODE NO.E587)	1	SN: .-118594
?	CU3201005	PT FUEL PUMP ASS'Y,(CODE NO.E587)	1	SN: 116112-.
?	CUAR-41049	PT FUEL PUMP ASS'Y,(CODE NO.E592)	1	SN: 115833-115855
?	CUAR-41049	PT FUEL PUMP ASS'Y,(CODE NO.E572)	1	SN: 115616-115620
?	CUAR-41048	PT FUEL PUMP ASS'Y,(CODE NO.E522) (PTG-VS AFC)	1	SN: 115546-115546
?	CUAR-41049	PT FUEL PUMP ASS'Y,(CODE NO.E592)	1	SN: 115545-115545
?	CUAR-41048	PT FUEL PUMP ASS'Y,(CODE NO.E522) (PTG-VS AFC)	1	SN: 115543-115544
?	CUAR-41048	PT FUEL PUMP ASS'Y,(CODE NO.E522) (PTG-VS AFC)	1	SN: 105543-114741
?	CUAR-41049	PT FUEL PUMP ASS'Y,(CODE NO.E592)	1	SN: 105542-105542
?	CUAR-41048	PT FUEL PUMP ASS'Y,(CODE NO.E522) (PTG-VS AFC)	1	SN: 105541-105541
?	CUAR-41049	PT FUEL PUMP ASS'Y,(CODE NO.E592)	1	SN: 105538-105540
?	CUAR-41048	PT FUEL PUMP ASS'Y,(CODE NO.E522) (PTG-VS AFC)	1	SN: 101153-105537
?	CU3021966	PT FUEL PUMP ASS'Y,(CODE NO.E637)(USA LARGE TIRE)	1	SN: 130921-UP
?	CU3021956	HOUSING ASS'Y	1	SN: 101153-UP
?	CU217797	HOUSING	1	SN: 101153-UP
?	CUAR-40423	BARREL ASS'Y,UPPER, 8 HOLES (STD)	1	SN: 101153-UP
?	CUAR-40426	BARREL,UPPER, 9 HOLES (STD)	1	SN: 101153-UP
?	CUAR-40424	BARREL A., 0.25MM,UPPER, 8 HOLES (OS)	1	SN: 101153-UP
?	CUAR-40427	BARREL A., 0.25MM,UPPER, 9 HOLES (OS)	1	SN: 101153-UP
?	CUAR-40425	BARREL A., 0.51MM,UPPER, 8 HOLES (OS)	1	SN: 101153-UP
?	CUAR-40428	BARREL A., 0.51MM,UPPER, 9 HOLES (OS)	1	SN: 101153-UP
?		BARREL,UPPER (STD)	1	SN: 101153-UP
?		BARREL, 0.25MM,UPPER (OS)	1	SN: 101153-UP
?		BARREL, 0.51MM,UPPER (OS)	1	SN: 101153-UP
?	CU212148	SLEEVE,8 HOLES (NOT SHOWN)	1	SN: 101153-UP
?	CU213514	SLEEVE,9 HOLES (NOT SHOWN)	1	SN: 101153-UP
?	CU3011058	BARREL ASS'Y,LOWER, 14 HOLES (STD)	1	SN: 101153-UP
?	CU3001737	BARREL ASS'Y,LOWER, 16 HOLES (STD)	1	SN: 101153-UP
?	CU3011059	BARREL A., 0.25MM,LOWER, 14 HOLES (OS)	1	SN: 101153-UP
?	CU3001738	BARREL A., 0.25MM,LOWER, 16 HOLES (OS)	1	SN: 101153-UP
?	CU3011060	BARREL A., 0.51MM,LOWER, 14 HOLES (OS)	1	SN: 101153-UP
?	CU3001739	BARREL A., 0.51MM,LOWER, 16 HOLES (OS)	1	SN: 101153-UP
?		BARREL,LOWER (STD)	1	SN: 101153-UP
?		BARREL, 0.25MM,LOWER (OS)	1	SN: 101153-UP
?		BARREL, 0.51MM,LOWER (OS)	1	SN: 101153-UP
?	CU3006773	SLEEVE,14 HOLES	1	SN: 101153-UP
?	CU177150	SLEEVE,16 HOLES	1	SN: 101153-UP
?	CU100193	BUSHING	1	SN: 101153-UP
?	CU163733	CLIP	1	SN: 101153-UP
?	CU118227	RING	2	SN: 101153-UP
?	CU202682	HOUSING	1	SN: 101153-UP
?	CU108384	HOUSING	1	SN: 101153-UP
?	CU3000594	SCREW	1	SN: 101153-UP
?	CU70815	SEAL	1	SN: 101153-UP
?	CU214139	BALL	3	SN: 101153-UP
?	CU3010810	PLUNGER ASS'Y,LOWER, RED, CLASS 0	1	SN: ..-UP
?	CUAR-40130	PLUNGER ASS'Y,LOWER, RED, CLASS 0	1	SN: .-..
?	CUAR-73880	PLUNGER ASS'Y,LOWER, RED, CLASS 0	1	SN: 101153-.
?	CU3010811	PLUNGER ASS'Y,LOWER, BLUE, CLASS 1	1	SN: ..-UP
?	CUAR-40131	PLUNGER ASS'Y,LOWER, BLUE, CLASS 1	1	SN: .-..
?	CUAR-73881	PLUNGER ASS'Y,LOWER, BLUE, CLASS 1	1	SN: 101153-.
?	CU3010812	PLUNGER ASS'Y,LOWER, GREEN, CLASS 2	1	SN: ..-UP
?	CUAR-40132	PLUNGER ASS'Y,LOWER, GREEN, CLASS 2	1	SN: .-..
?	CUAR-73882	PLUNGER ASS'Y,LOWER, GREEN, CLASS 2	1	SN: 101153-.
?	CU3010813	PLUNGER ASS'Y,LOWER, YELLOW, CLASS 3	1	SN: ..-UP
?	CUAR-40133	PLUNGER ASS'Y,LOWER, YELLOW, CLASS 3	1	SN: .-..
?	CUAR-73883	PLUNGER ASS'Y,LOWER, YELLOW, CLASS 3	1	SN: 101153-.
?	CU3010814	PLUNGER ASS'Y,LOWER, ORANGE, CLASS 4	1	SN: ..-UP
?	CUAR-40134	PLUNGER ASS'Y,LOWER, ORANGE, CLASS 4	1	SN: .-..
?	CUAR-73884	PLUNGER ASS'Y,LOWER, ORANGE, CLASS 4	1	SN: 101153-.
?	CU3010815	PLUNGER ASS'Y,LOWER, BLACK, CLASS 5	1	SN: ..-UP
?	CUAR-40135	PLUNGER ASS'Y,LOWER, BLACK, CLASS 5	1	SN: .-..
?	CUAR-73885	PLUNGER ASS'Y,LOWER, BLACK, CLASS 5	1	SN: 101153-.
?	CU3010816	PLUNGER ASS'Y,LOWER, GREY, CLASS 6	1	SN: ..-UP
?	CUAR-40136	PLUNGER ASS'Y,LOWER, GREY, CLASS 6	1	SN: .-..
?	CUAR-73886	PLUNGER ASS'Y,LOWER, GREY, CLASS 6	1	SN: 101153-.
?	CU3010817	PLUNGER ASS'Y,LOWER, PURPLE, CLASS 7	1	SN: ..-UP
?	CUAR-40137	PLUNGER ASS'Y,LOWER, PURPLE, CLASS 7	1	SN: .-..
?	CUAR-73887	PLUNGER ASS'Y,LOWER, PURPLE, CLASS 7	1	SN: 101153-.
?	CU3009380	PLUNGER,LOWER, RED, CLASS 0	1	SN: .-UP
?	CU203350	PLUNGER,LOWER, RED, CLASS 0	1	SN: 101153-.
?	CU3009381	PLUNGER,LOWER, BLUE, CLASS 1	1	SN: .-UP
?	CU203351	PLUNGER,LOWER, BLUE, CLASS 1	1	SN: 101153-.
?	CU3009382	PLUNGER,LOWER, GREEN, CLASS 2	1	SN: .-UP
?	CU203352	PLUNGER,LOWER, GREEN, CLASS 2	1	SN: 101153-.
?	CU3009383	PLUNGER,LOWER, YELLOW, CLASS 3	1	SN: .-UP
?	CU203353	PLUNGER,LOWER, YELLOW, CLASS 3	1	SN: 101153-.
?	CU3009384	PLUNGER,LOWER, ORANGE, CLASS 4	1	SN: .-UP
?	CU203354	PLUNGER,LOWER, ORANGE, CLASS 4	1	SN: 101153-.
?	CU3009385	PLUNGER,LOWER, BLACK, CLASS 5	1	SN: .-UP
?	CU203355	PLUNGER,LOWER, BLACK, CLASS 5	1	SN: 101153-.
?	CU3009386	PLUNGER,LOWER, GREY, CLASS 6	1	SN: .-UP
?	CU203356	PLUNGER,LOWER, GREY, CLASS 6	1	SN: 101153-.
?	CU3009387	PLUNGER,LOWER, PURPLE, CLASS 7	1	SN: .-UP
?	CU203357	PLUNGER,LOWER, PURPLE, CLASS 7	1	SN: 101153-.
?	CU70690	DRIVER	1	SN: 101153-.
?	CU137372	PIN	1	SN: 101153-UP
?	CU144302	SPACER	1	SN: 101153-UP
?	CU3027633	BEARING	1	SN: .-UP
?	CU138905	WASHER	1	SN: 101153-.
?	CUAR-40230	PLUNGER ASS'Y,UPPER, RED, CLASS 0	1	SN: 101153-UP
?	CUAR-40231	PLUNGER ASS'Y,UPPER, BLUE, CLASS 1	1	SN: 101153-UP
?	CUAR-40232	PLUNGER ASS'Y,UPPER, GREEN, CLASS 2	1	SN: 101153-UP
?	CUAR-40233	PLUNGER ASS'Y,UPPER, YELLOW, CLASS 3	1	SN: 101153-UP
?	CUAR-40234	PLUNGER ASS'Y,UPPER, ORANGE, CLASS 4	1	SN: 101153-UP
?	CUAR-40235	PLUNGER ASS'Y,UPPER, BLACK, CLASS 5	1	SN: 101153-UP
?	CU212350	PLUNGER,UPPER, RED, CLASS 0	1	SN: 101153-UP
?	CU212351	PLUNGER,UPPER, BLUE, CLASS 1	1	SN: 101153-UP
?	CU212352	PLUNGER,UPPER, GREEN, CLASS 2	1	SN: 101153-UP
?	CU212353	PLUNGER,UPPER, YELLOW, CLASS 3	1	SN: 101153-UP
?	CU212354	PLUNGER,UPPER, ORANGE, CLASS 4	1	SN: 101153-UP
?	CU212355	PLUNGER,UPPER, BLACK, CLASS 5	1	SN: 101153-UP
?	CU70740	PIN	1	SN: 101153-UP
?	CU70690	DRIVER	1	SN: 101153-UP
?	CU101921	WASHER	1	SN: 101153-UP
?	CUAR-41010	SHAFT ASS'Y,RED	1	SN: 101153-UP
?	CUAR-41011	SHAFT ASS'Y,BLUE	1	SN: 101153-UP
?	CUAR-41012	SHAFT ASS'Y,GREEN	1	SN: 101153-UP
?	CUAR-41013	SHAFT ASS'Y,YELLOW	1	SN: 101153-UP
?	CUAR-41014	SHAFT ASS'Y,ORANGE	1	SN: 101153-UP
?	CUAR-41015	SHAFT ASS'Y,BLACK	1	SN: 101153-UP
?	CU3006430	SHAFT ASS'Y,RED, CLASS 0	1	SN: 101153-UP
?	CU3006431	SHAFT ASS'Y,BLUE, CLASS 1	1	SN: 101153-UP
?	CU3006432	SHAFT ASS'Y,GREEN, CLASS 2	1	SN: 101153-UP
?	CU3006433	SHAFT ASS'Y,YELLOW, CLASS 3	1	SN: 101153-UP
?	CU3006434	SHAFT ASS'Y,ORANGE, CLASS 4	1	SN: 101153-UP
?	CU3006435	SHAFT ASS'Y,BLACK, CLASS 5	1	SN: 101153-UP
?	CU3006350	SHAFT,RED, CLASS 0	1	SN: 101153-UP
?	CU3006351	SHAFT,BLUE, CLASS 1	1	SN: 101153-UP
?	CU3006352	SHAFT,GREEN, CLASS 2	1	SN: 101153-UP
?	CU3006353	SHAFT,YELLOW, CLASS 3	1	SN: 101153-UP
?	CU3006354	SHAFT,ORANGE, CLASS 4	1	SN: 101153-UP
?	CU3006355	SHAFT,BLACK, CLASS 5	1	SN: 101153-UP
?	CU3006343	STOP	1	SN: 101153-UP
?	CU3006344	SCREW	1	SN: 101153-UP
?	CU3006175	SCREW	1	SN: 101153-UP
?	CU100478	O-RING	1	SN: 101153-UP
?	CU213768	O-RING	1	SN: 101153-UP
?	CU213769	BALL	1	SN: 101153-UP
?	CU3000446	COVER	1	SN: 101153-UP
?	CUS-2286	SCREW	4	SN: 101153-UP
?	CU3021068	BARREL,(WITH AFC)	1	SN: 101153-UP
?	CU3000438	BARREL,(WITHOUT AFC)	1	SN: 101153-UP
?	CU3018655	SPRING	1	SN: 101153-UP
?	CU145505	O-RING	1	SN: 101153-UP
?	CU70775	O-RING	1	SN: .-UP
?	CU193934	O-RING	1	SN: 101153-.
?	CU190876	O-RING,(WITH AFC)	1	SN: 101153-UP
?	CUS-16240	RING	1	SN: 101153-UP
?	CUS-213-A	NUT	1	SN: 101153-UP
?	CUAR-45677	PLUNGER,(WITH AFC)	1	SN: 101153-UP
?	CU214145	PLUNGER	1	SN: 101153-UP
?	CU3002481	O-RING	1	SN: 101153-UP
?	CU3023088	WASHER	1	SN: 101153-UP
?	CUS-253	NUT,(WITH AFC)	1	SN: 101153-UP
?	CU3001707	SHIM,(WITH AFC)	1	SN: 101153-UP
?	CU179804	SPRING,WHITE	1	SN: 101153-UP
?	CU179806	SPRING,ORANGE	1	SN: 101153-UP
?	CU179808	SPRING,PURPLE	1	SN: 101153-UP
?	CU179816	SPRING,BLUE-WHITE	1	SN: 101153-UP
?	CU179818	SPRING,BLUE-ORANGE	1	SN: 101153-UP
?	CU179820	SPRING,BLUE-PURPLE	1	SN: 101153-UP
?	CU179822	SPRING,WHITE-GREEN	1	SN: 101153-UP
?	CU179824	SPRING,WHITE-RED	1	SN: 101153-UP
?	CU179826	SPRING,WHITE-YELLOW	1	SN: 101153-UP
?	CU179828	SPRING,GREEN-RED	1	SN: 101153-UP
?	CU179830	SPRING,GREEN-YELLOW	1	SN: 101153-UP
?	CU179832	SPRING,ORANGE-PURPLE	1	SN: 101153-UP
?	CU179834	SPRING,RED-PURPLE	1	SN: 101153-UP
?	CU179836	SPRING,PURPLE-YELLOW	1	SN: 101153-UP
?	CU3000592	SPRING,LIGHTGREEN	1	SN: 101153-UP
?	CU3013811	BELLOWS,(WITH AFC)	1	SN: 101153-UP
?	CU3013810	PISTON,(WITH AFC)	1	SN: 101153-UP
?	CU214150	WASHER	1	SN: 101153-UP
?	CU3023870	WASHER	1	SN: 101153-UP
?	CU3023171	BOLT,(WITH AFC)	1	SN: 101153-UP
?	CUS-251	NUT,(WITH AFC)	1	SN: 101153-UP
?	CU3015520	COVER	1	SN: 101153-UP
?	02720-20204	PLUG	1	SN: 101153-UP
?	CU3028064	GASKET,(WITH AFC)	1	SN: 101153-UP
?	CU3012558	BOLT	1	SN: 101153-UP
?	CU70772-B	BOLT	2	SN: 101153-UP
?	CUS-600	WASHER,SPRING	3	SN: 101153-UP
?	CU70704	WASHER	3	SN: 101153-UP
?	CU109915	SCREW	1	SN: 101153-UP
?	CU109915	SCREW	1	SN: 101153-UP
?	CUS-251	NUT	2	SN: 101153-UP
?	CUS-16240	RING	1	SN: 101153-UP
?	CU214144	VALVE	1	SN: 101153-UP
?	CU190875	O-RING	1	SN: 101153-UP
?	CUS-248	NUT	1	SN: 101153-UP
?	CU200635	PLUG	4	SN: 101153-UP
?	CU146483	SCREEN	1	SN: 101153-UP
?	CU70700	SPRING	1	SN: 101153-UP
?	CU139473	PLUG	1	SN: 101153-UP
?	CU145504	O-RING	1	SN: 101153-UP
?	CU128807	RING	1	SN: 101153-UP
?	CU70705	GASKET	1	SN: 101153-UP
?	CU3015494	PLATE	1	SN: 101153-UP
?	CUS-168	BOLT	4	SN: 101153-UP
?	CU181466	WASHER,SPRING	4	SN: 101153-UP
?	CU70704	WASHER	4	SN: 101153-UP
?	CU3003156	SEAL,(NOT SHOWN)	1	SN: 101153-UP
?	CU105375	PLATE, NAME	1	SN: 101153-UP
?	CUS-2286	SCREW	2	SN: 101153-UP
?	CU101841	SHIM, 0.005INCH	-2	SN: 101153-UP
?	CU101842	SHIM, 0.010INCH	-2	SN: 101153-UP
?	CU101843	SHIM, 0.020INCH	-2	SN: 101153-UP
?	CU138768	SPRING,RED	1	SN: 101153-UP
?	CU138769	SPRING,BLUE	1	SN: 101153-UP
?	CU138780	SPRING,BROWN	1	SN: 101153-UP
?	CU138781	SPRING,YELLOW	1	SN: 101153-UP
?	CU138782	SPRING,RED-BLUE	1	SN: 101153-UP
?	CU138783	SPRING,RED-BROWN	1	SN: 101153-UP
?	CU138784	SPRING,RED-YELLOW	1	SN: 101153-UP
?	CU138785	SPRING,RED	1	SN: 101153-UP
?	CU138786	SPRING,BLUE	1	SN: 101153-UP
?	CU138787	SPRING,BROWN	1	SN: 101153-UP
?	CU138788	SPRING,YELLOW	1	SN: 101153-UP
?	CU138789	SPRING,RED-BLUE	1	SN: 101153-UP
?	CU138790	SPRING,RED-BROWN	1	SN: 101153-UP
?	CU138791	SPRING,RED-YELLOW	1	SN: 101153-UP
?	CU138792	SPRING,BLUE-BROWN	1	SN: 101153-UP
?	CU138793	SPRING,RED	1	SN: 101153-UP
?	CU138794	SPRING,BLUE	1	SN: 101153-UP
?	CU138795	SPRING,BROWN	1	SN: 101153-UP
?	CU138796	SPRING,YELLOW	1	SN: 101153-UP
?	CU138797	SPRING,RED-BLUE	1	SN: 101153-UP
?	CU138798	SPRING,RED-BROWN	1	SN: 101153-UP
?	CU138799	SPRING,RED-YELLOW	1	SN: 101153-UP
?	CU138800	SPRING,BLUE-BROWN	1	SN: 101153-UP
?	CU138801	SPRING,BLUE-YELLOW	1	SN: 101153-UP
?	CU138802	SPRING,BROWN-YELLOW	1	SN: 101153-UP
?	CU138803	SPRING,RED	1	SN: 101153-UP
?	CU138804	SPRING,BLUE	1	SN: 101153-UP
?	CU138805	SPRING,BROWN	1	SN: 101153-UP
?	CU138993	SPRING,YELLOW	1	SN: 101153-UP
?	CU138994	SPRING,RED-BLUE	1	SN: 101153-UP
?	CU138995	SPRING,RED-BROWN	1	SN: 101153-UP
?	CU138996	SPRING,RED-YELLOW	1	SN: 101153-UP
?	CU138997	SPRING,BLUE-BROWN	1	SN: 101153-UP
?	CU138998	SPRING,BLUE-YELLOW	1	SN: 101153-UP
?	CU138999	SPRING,BROWN-YELLOW	1	SN: 101153-UP
?	CU139584	SPRING,BLUE-BROWN	1	SN: 101153-UP
?	CU139585	SPRING,BLUE-YELLOW	1	SN: 101153-UP
?	CU139586	SPRING,BROWN-YELLOW	1	SN: 101153-UP
?	CU139587	SPRING,BLUE-YELLOW	1	SN: 101153-UP
?	CU139588	SPRING,BROWN-YELLOW	1	SN: 101153-UP
?	CU3025460	PLUG	4	SN: 101153-UP

Search in All Books

Komatsu KT-1150-1A S/N 101153-UP parts catalog PDF

How to get full access?
