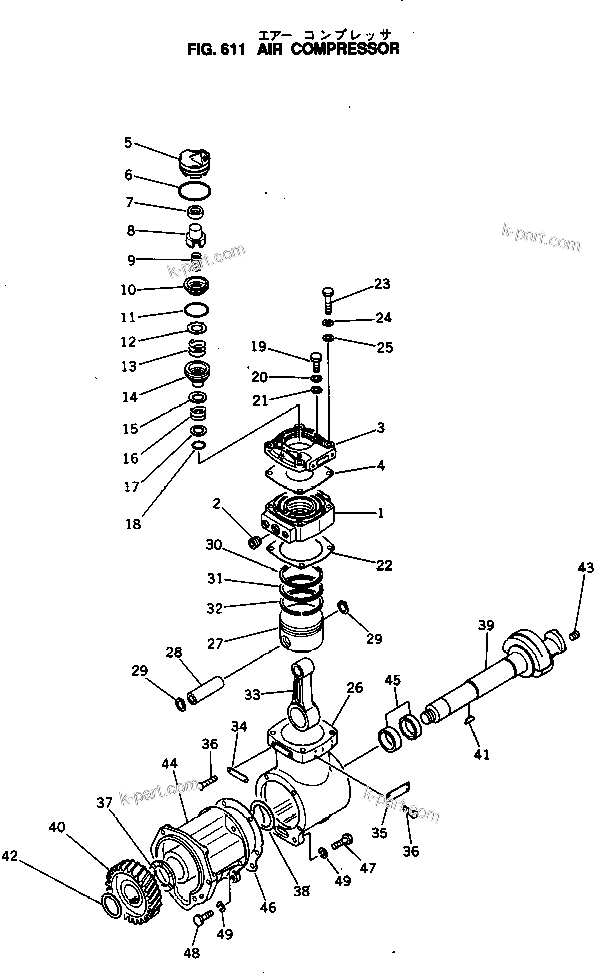

AIR COMPRESSOR | NTO-6-CI-1B S/N 25762-UP | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6684-91-1003	AIR COMPRESSOR A.	1	SN: 131834-UP
?	6684-91-1002	AIR COMPRESSOR A.	1	SN: 102489-131833
?	6684-91-1001	AIR COMPRESSOR A.	1	SN: 25762-102489
?		(6684-91-1003{6684-71-2381 ?}	-1
?		?6684-71-7711)	-1
?	6684-91-1011	CRANKCASE ASS'Y,CYLINDER	1	SN: 25762-UP
?	6684-91-1111	HEAD	1	SN: 25762-UP
?	02720-20810	PLUG	1	SN: 25762-UP
?	6684-91-1120	COVER,HEAD	1	SN: 25762-UP
?	6684-91-1130	GASKET (K5)	1	SN: 25762-UP
?	6684-91-1611	BODY,UNLOADER VALVE	1	SN: 25762-UP
?	6684-91-1621	O-RING (K5)	1	SN: 25762-UP
?	6684-91-1521	SEAL (K5)	1	SN: 25762-UP
?	6684-91-1411	CAP,UNLOADER VALVE	1	SN: 25762-UP
?	6684-91-1421	SPRING,UNLOADER VALVE	1	SN: 131834-UP
?	6684-91-1420	SPRING,UNLOADER VALVE	1	SN: 25762-131833
?	6684-91-1330	SEAT,INTAKE VALVE	1	SN: 25762-UP
?	6684-91-1250	O-RING (K5)	1	SN: 25762-UP
?	6684-91-1311	VALVE,INTAKE	1	SN: .-UP
?	6684-91-1310	VALVE,INTAKE	1	SN: 25762-.
?	6684-91-1321	SPRING,INTAKE VALVE	1	SN: 25762-UP
?	6684-91-1230	SEAT,INTAKE VALVE	1	SN: 25762-UP
?	6684-91-1210	VALVE,EXHAUST	1	SN: 25762-UP
?	6684-91-1220	SPRING,EXHAUST VALVE	1	SN: 25762-UP
?	6684-91-1260	PLATE,WEAR	1	SN: 25762-UP
?	6684-91-1241	O-RING (K5)	1	SN: 25762-UP
?	02010-20522	BOLT	2	SN: 25762-UP
?	02310-11020	WASHER,SPRING	2	SN: 25762-UP
?	6684-91-1140	WASHER	2	SN: 25762-UP
?	6684-91-1151	GASKET (K5)	1	SN: 25762-UP
?	02010-20570	BOLT	4	SN: 25762-UP
?	02310-11020	WASHER,SPRING	4	SN: 25762-UP
?	02300-11120	WASHER	4	SN: 25762-UP
?	6684-91-2111	CRANKCASE	1	SN: 25762-UP
?		STANDARD	-1
?	6684-91-3201	PISTON ASS'Y	1	SN: 25762-UP
?	6684-91-3211	PISTON	1	SN: 25762-UP
?	6684-91-3250	PIN,PISTON	1	SN: 25762-UP
?	6684-91-3260	RING,SNAP	2	SN: 25762-UP
?		OVERSIZE 0.25MM	-1
?	6684-99-3201	PISTON ASS'Y	1	SN: 25762-UP
?	6684-99-3211	PISTON	1	SN: 25762-UP
?	6684-91-3250	PIN,PISTON	1	SN: 25762-UP
?	6684-91-3260	RING,SNAP	2	SN: 25762-UP
?		OVERSIZE 0.50MM	-1
?	6684-98-3201	PISTON ASS'Y	1	SN: 25762-UP
?	6684-98-3211	PISTON	1	SN: 25762-UP
?	6684-91-3250	PIN,PISTON	1	SN: 25762-UP
?	6684-91-3260	RING,SNAP	2	SN: 25762-UP
?		OVERSIZE 0.75MM	-1
?	6684-97-3201	PISTON ASS'Y	1	SN: 25762-UP
?	6684-97-2311	PISTON	1	SN: 25762-UP
?	6684-91-3250	PIN,PISTON	1	SN: 25762-UP
?	6684-91-3260	RING,SNAP	2	SN: 25762-UP
?		STANDARD	-1
?	6684-91-3021	PISTON RING ASS'Y	1	SN: 25762-UP
?		RING,PISTON	1	SN: .-UP
?		RING,PISTON	1	SN: 25762-.
?		RING,PISTON	1	SN: 25762-UP
?		RING,OIL	1	SN: 25762-UP
?		OVERSIZE 0.25MM	-1
?	6684-99-3021	PISTON RING ASS'Y	1	SN: 25762-UP
?		RING,PISTON	1	SN: .-UP
?		RING,PISTON	1	SN: 25762-.
?		RING,PISTON	1	SN: 25762-UP
?		RING,OIL	1	SN: 25762-UP
?		OVERSIZE 0.50MM	-1
?	6684-98-3021	PISTON RING ASS'Y	1	SN: 25762-UP
?		RING,PISTON	1	SN: .-UP
?		RING,PISTON	1	SN: 25762-.
?		RING,PISTON	1	SN: 25762-UP
?		RING,OIL	1	SN: 25762-UP
?		OVERSIZE 0.75MM	-1
?	6684-97-3021	PISTON RING ASS'Y	1	SN: 25762-UP
?		RING,PISTON	1	SN: .-UP
?		RING,PISTON	1	SN: 25762-.
?		RING,PISTON	1	SN: 25762-UP
?		RING,OIL	1	SN: 25762-UP
?	6684-91-3312	ROD,CONNECTING	1	SN: 25762-UP
?	6684-91-2610	PLATE ? NAME,(LIMITED SUPPLY)	1	SN: 25762-UP
?	6684-91-2710	PLATE ? NAME,(LIMITED SUPPLY)	1	SN: 25762-UP
?	04418-02550	SCREW	6	SN: 25762-UP
?	6684-91-2411	METAL,THRUST ? 2.24-2.29MM	1	SN: .-UP
?	6684-91-2410	METAL,THRUST ? 2.24-2.29MM	1	SN: 25762-.
?	6684-91-2421	METAL,THRUST ? 2.29-2.34MM	1	SN: .-UP
?	6684-91-2420	METAL,THRUST ? 2.29-2.34MM	1	SN: 25762-.
?	6684-91-2431	METAL,THRUST ? 2.54-2.59MM	1	SN: .-UP
?	6684-91-2430	METAL,THRUST ? 2.54-2.59MM	1	SN: 25762-.
?	6684-91-2441	METAL,THRUST ? 2.34-2.39MM	1	SN: .-UP
?	6684-91-2440	WASHER,THRUST ? 2.34-2.39MM	1	SN: 25762-.
?	6684-91-2511	METAL,THRUST ? 2.27-2.30MM	1	SN: .-UP
?	6684-91-2510	METAL,THRUST ? 2.27-2.30MM	1	SN: 25762-.
?	6684-91-2521	METAL,THRUST ? 2.30-2.32MM	1	SN: .-UP
?	6684-91-2520	METAL ? 0.25MM,THRUST ? 2.30-2.32MM	1	SN: 25762-.
?	6684-91-2531	METAL,THRUST ? 2.32-2.35MM	1	SN: .-UP
?	6684-91-2530	METAL ? 0.10MM,THRUST ? 2.32-2.35MM	1	SN: 25762-.
?	6684-91-3102	DRIVE ASS'Y,AIR COMPRESSOR	1	SN: 102490-UP
?	6684-91-3101	DRIVE ASS'Y,AIR COMPRESSOR	1	SN: 25762-102489
?	6684-91-3112	CRANKSHAFT	1	SN: 102490-UP
?	6684-91-3111	CRANKSHAFT	1	SN: 25762-102489
?		(6684-91-1003{6684-91-3112 ?}	-1
?		?6684-71-7711)	-1
?	6610-71-7220	GEAR,ACCESSORY DRIVE	1	SN: 25762-UP
?	02410-01025	KEY	1	SN: 25762-UP
?	6610-71-7251	SEAL,OIL	1	SN: 25762-UP
?	02720-20204	PLUG	1	SN: 25762-UP
?	6684-91-2201	SUPPORT ASS'Y	1	SN: 25762-UP
?	6684-91-2211	SUPPORT	1	SN: 25762-UP
?	6684-91-2311	BUSHING	2	SN: 25762-UP
?	6684-91-2221	GASKET (K5)	1	SN: 25762-UP
?	02010-20638	BOLT	2	SN: 25762-UP
?	02010-20632	BOLT	4	SN: 25762-UP
?	02310-11224	WASHER,SPRING	6	SN: 25762-UP
