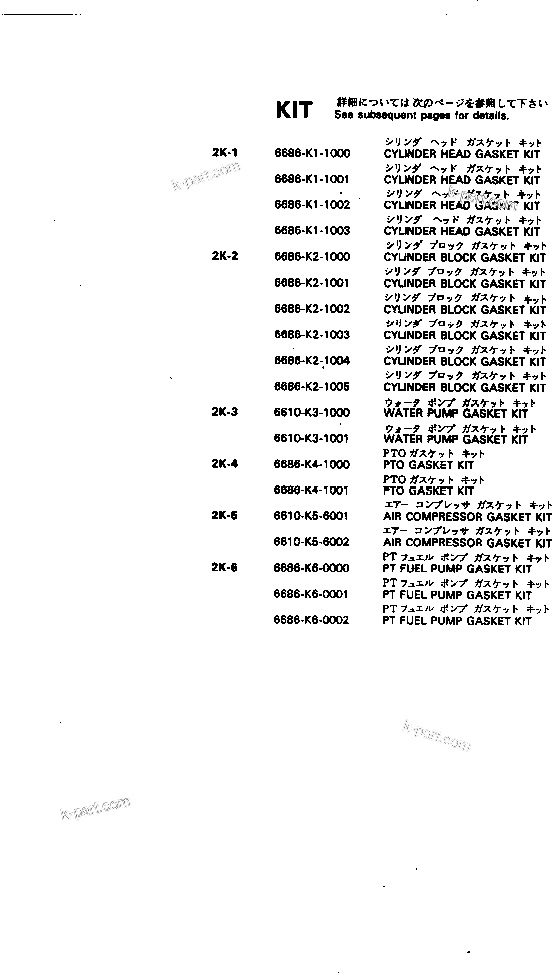

GASKET KIT | NTO-6-CI-1B S/N 25762-UP | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6686-K1-1003	GASKET KIT,CYLINDER HEAD	1	SN: .-UP
?	6686-K1-1002	GASKET KIT,CYLINDER HEAD	1	SN: 131834-.
?	6686-K1-1001	GASKET KIT,CYLINDER HEAD	1	SN: 114020-131833
?	6686-K1-1000	GASKET KIT,CYLINDER HEAD	1	SN: 25762-114019
?	6610-11-1711	GASKET	3	SN: .-UP
?	6610-11-1710	GASKET	3	SN: 25762-.
?	6610-11-1811	GASKET	3	SN: 131834-UP
?	6610-11-1810	GASKET	3	SN: 25762-131833
?	6610-11-1850	RETAINER	24	SN: 25762-UP
?	6610-11-7811	GASKET	3	SN: 25762-UP
?	6610-11-7340	PLATE	3	SN: 25762-114019
?	6610-11-7320	GASKET	3	SN: 25762-UP
?	6610-11-8810	GASKET	3	SN: 25762-UP
?	6685-21-7430	GASKET	1	SN: 25762-UP
?	07000-03020	O-RING	1	SN: 25762-UP
?	02891-02016	O-RING	2	SN: 25762-UP
?	6610-11-4812	GASKET	3	SN: .-UP
?	6610-11-4811	GASKET	3	SN: 25762-.
?	6127-11-4640	GASKET	2	SN: .-UP
?	6685-11-4860	GASKET	2	SN: 25762-.
?	6685-11-4222	GASKET	1	SN: 25762-UP
?	6675-11-4960	GASKET	1	SN: 25762-UP
?	6685-11-5811	GASKET	6	SN: .-UP
?	6685-11-5810	GASKET	6	SN: 25762-.
?	6685-11-5220	PLATE	5	SN: 25762-UP
?	6610-11-5220	PLATE	2	SN: 25762-UP
?	6685-81-9510	GASKET	1	SN: 25762-UP
?	07003-01824	GASKET	1	SN: 25762-UP
?	02893-05043	O-RING	4	SN: 25762-UP
?	6610-11-6810	PLATE	6	SN: 25762-UP
?	6610-11-6820	RING	6	SN: 25762-UP
?	6710-11-6451	SEAL	1	SN: 25762-UP
?	6620-11-6430	GASKET	1	SN: 25762-UP
?	6610-11-6330	GASKET	1	SN: 25762-UP
?	6684-91-5510	GASKET	3	SN: 25762-UP
?	6686-K2-1006	GASKET KIT,CYLINDER BLOCK	1	SN: 159720-UP
?	6686-K2-1005	GASKET KIT,CYLINDER BLOCK	1	SN: 134933-159719
?	6686-K2-1004	GASKET KIT,CYLINDER BLOCK	1	SN: 112257-134932
?	6686-K2-1003	GASKET KIT,CYLINDER BLOCK	1	SN: 111368-112256
?	6686-K2-1002	GASKET KIT,CYLINDER BLOCK	1	SN: 39297-111367
?	6686-K2-1001	GASKET KIT,CYLINDER BLOCK	1	SN: 35772-39296
?	6686-K2-1000	GASKET KIT,CYLINDER BLOCK	1	SN: 25762-35771
?	6610-21-1720	WASHER	14	SN: 25762-UP
?	6610-21-6720	GASKET	2	SN: 25762-UP
?	02892-03031	O-RING	1	SN: 25762-35771
?	6610-21-2221	O-RING	6	SN: 25762-UP
?	6610-21-2240	SEAL	6	SN: 25762-UP
?	6610-21-2250	O-RING	6	SN: 25762-UP
?	6610-21-5671	GASKET	1	SN: 111454-UP
?	6610-21-5670	GASKET	1	SN: 25762-111453
?	6623-21-6770	GASKET	1	SN: 25762-UP
?	6610-21-1330	GASKET	1	SN: 25762-UP
?	6610-21-1321	SEAL ? REAR	1	SN: 25762-UP
?	6610-21-1350	GASKET	1	SN: 25762-UP
?	07000-06240	O-RING	1	SN: 25762-UP
?	6610-21-5311	O-RING	1	SN: 25762-UP
?	6685-21-3240	O-RING	1	SN: 25762-UP
?	6685-21-3310	SHIM ? 0.25MM	4	SN: 25762-UP
?	6685-21-3320	SHIM ? 0.13MM	4	SN: 25762-UP
?	6685-21-3330	SHIM ? 0.05MM	4	SN: 25762-UP
?	6710-21-3310	SHIM ? 0.64MM	1	SN: 111368-UP
?	6685-21-3810	GASKET	1	SN: 25762-UP
?	07002-03634	O-RING	1	SN: .-148462
?	07000-03032	O-RING	1	SN: 25762-.
?	6685-21-5620	GASKET	1	SN: 25762-UP
?	6685-21-5540	GASKET	2	SN: 25762-UP
?	6623-21-5811	GASKET	1	SN: 107813-UP
?	6623-21-5810	GASKET	1	SN: 25762-107812
?	6643-21-5421	GASKET	1	SN: 25762-UP
?	07000-63028	O-RING	1	SN: 25762-UP
?	6610-31-1362	PLATE	3	SN: 25762-118435
?	07000-02060	O-RING	1	SN: 25762-UP
?	07000-03040	O-RING	1	SN: 25762-UP
?	07000-03022	O-RING	1	SN: 25762-UP
?	6610-21-4581	GASKET	1	SN: .-UP
?	6610-21-4580	GASKET	1	SN: 25762-.
?	6670-31-1450	WASHER	1	SN: 100814-UP
?	6685-31-1451	WASHER	1	SN: 25762-100813
?	6685-31-1471	GASKET	1	SN: 100814-UP
?	6685-31-1470	GASKET	1	SN: 25762-100813
?	07000-03022	O-RING	1	SN: 25762-UP
?	6610-21-3520	SEAL	1	SN: 25762-UP
?	6610-31-3330	PLATE	12	SN: 25762-39296
?	6610-41-2810	GASKET ? 0.80MM	9	SN: 112257-UP
?	6610-41-2810	GASKET ? 0.80MM	3	SN: 25762-112256
?	6610-41-2820	GASKET ? 0.38MM	3	SN: 25762-UP
?	6610-41-2840	GASKET ? 0.38MM	3	SN: 159720-UP
?	6610-41-2830	GASKET ? 0.18MM	9	SN: 112257-UP
?	6610-41-2830	GASKET ? 0.18MM	3	SN: 25762-112256
?	6610-51-1811	GASKET	1	SN: 25762-UP
?	6685-51-2811	GASKET	1	SN: 25762-UP
?	07000-03020	O-RING	2	SN: 25762-UP
?	07000-03028	O-RING	4	SN: 25762-UP
?	07000-03035	O-RING	1	SN: 25762-UP
?	07000-03030	O-RING	1	SN: 25762-UP
?	07000-02012	O-RING	22	SN: 25762-35771
?	6620-61-5130	O-RING	2	SN: 25762-UP
?	6610-61-5811	GASKET	1	SN: 25762-UP
?	6693-62-9120	GASKET	1	SN: 25762-134932
?	6686-61-6270	GASKET	1	SN: 25762-134932
?	6610-61-1810	GASKET	1	SN: 25762-UP
?	07010-00052	SEAL	1	SN: 134933-UP
?	6610-61-2170	SEAL	1	SN: 25762-134932
?	6671-61-2420	GASKET	1	SN: 25762-UP
?	6600-01-3420	PIN	1	SN: 25762-UP
?	07012-00045	SEAL	1	SN: 25762-134932
?	01653-01012	WASHER	1	SN: 25762-134932
?	6113-63-4810	GASKET	1	SN: 25762-134932
?	07012-00025	SEAL	1	SN: 134933-UP
?	01658-02416	WASHER	1	SN: 134933-UP
?	6667-61-2870	GASKET	1	SN: 134933-UP
?	6610-81-2210	GASKET	1	SN: 25762-UP
?	07005-01412	GASKET	4	SN: 25762-134932
?	07003-01419	GASKET	2	SN: 134933-UP
?	6686-71-7810	GASKET	1	SN: 25762-UP
?	6610-K3-0001	GASKET KIT,WATER PUMP	1	SN: 138794-UP
?	6610-K3-0000	GASKET KIT,WATER PUMP	1	SN: 25762-138794
?	6610-61-1512	SEAL ? WATER	1	SN: 138794-UP
?	6610-61-1511	SEAL ? WATER	1	SN: 25762-138793
?	6610-61-1331	SEAT	1	SN: 25762-138793
?	6610-69-1210	FILTER	1	SN: 25762-138793
?	6610-61-1810	GASKET	1	SN: 25762-UP
?	6686-K4-1001	GASKET KIT	1	SN: 33930-UP
?	6686-K4-1000	GASKET KIT	1	SN: 25762-33929
?	07000-62010	O-RING	1	SN: 25762-UP
?	07000-02015	O-RING	1	SN: 25762-UP
?	6631-21-4390	PLATE	1	SN: 25762-.
?	6631-21-4460	PLATE	3	SN: 25762-UP
?	6631-21-4480	GASKET	1	SN: 25762-UP
?	6631-21-4570	GASKET	1	SN: 25762-UP
?	07000-02070	O-RING	1	SN: 25762-UP
?	6631-21-4490	GASKET	1	SN: 25762-UP
?	01658-26223	WASHER	2	SN: 25762-UP
?	07000-05110	O-RING	1	SN: 25762-UP
?	6631-21-4750	GASKET	1	SN: 25762-UP
?	07000-02085	O-RING	1	SN: 25762-UP
?	6631-21-4671	GASKET	1	SN: 25762-UP
?	6631-21-4761	GASKET	1	SN: 25762-UP
?	01650-01212	WASHER	2	SN: 25762-UP
?	6631-21-4690	PLATE	3	SN: 25762-UP
?	6631-21-4680	GASKET	1	SN: 25762-33929
?	07000-02095	O-RING	1	SN: 33930-UP
?	07000-02070	O-RING	1	SN: 25762-UP
?	07000-03088	O-RING	1	SN: 25762-UP
?	6610-K5-6002	GASKET KIT,AIR COMPRESSOR	1	SN: .-UP
?	6610-K5-6001	GASKET KIT,AIR COMPRESSOR	1	SN: 25762-.
?	6684-91-1241	O-RING	1	SN: 25762-UP
?	6684-91-1250	O-RING	1	SN: 25762-UP
?	6684-91-1521	SEAL	1	SN: 25762-UP
?	6684-91-1621	O-RING	1	SN: 25762-UP
?	6684-91-1130	GASKET	1	SN: 25762-UP
?	6684-91-1151	GASKET	1	SN: 25762-UP
?	6684-91-2221	GASKET	1	SN: 25762-UP
?	6684-91-1721	GASKET	1	SN: 25762-UP
?	07005-01412	GASKET	1	SN: .-UP
?	6686-71-7810	GASKET	1	SN: .-UP
?	6686-K6-1002	GASKET KIT,PT FUEL PUMP	1	SN: 104326-UP
?	6686-K6-1001	GASKET KIT,PT FUEL PUMP	1	SN: 101674-104325
?	6686-K6-1000	GASKET KIT,PT FUEL PUMP	1	SN: 25762-101673
?	6610-71-1320	O-RING	1	SN: 25762-UP
?	02891-02018	O-RING	1	SN: 25762-UP
?	6610-71-2320	SEAL	1	SN: 25762-UP
?	6610-71-2410	GASKET	1	SN: 25762-UP
?	6610-71-7821	GASKET	1	SN: 25762-UP
?	6610-71-1821	GASKET	1	SN: 25762-UP
?	6610-71-4241	O-RING	1	SN: 25762-UP
?	6610-71-4160	O-RING	1	SN: 25762-UP
?	6610-71-3520	O-RING	1	SN: 25762-UP
?	6610-71-2541	GASKET	1	SN: 25762-UP
?	6610-71-2811	GASKET	1	SN: 101674-UP
?	6610-71-2810	GASKET	1	SN: 25762-101673
?	6610-71-2771	RING	1	SN: 25762-UP
?	6610-71-2741	RING	1	SN: 25762-UP
?	6610-71-2750	SEAL	1	SN: 25762-UP
?	6610-71-1911	SEAL	1	SN: 25762-UP
?	6610-71-1960	WASHER	1	SN: 104326-UP
?	6610-71-3150	O-RING	2	SN: 25762-UP
?	02891-02047	O-RING	1	SN: 25762-UP
?	6610-71-1821	GASKET	1	SN: 25762-UP
?	6610-71-3510	RING	1	SN: 25762-UP
?	6610-71-3520	O-RING	1	SN: 25762-UP
?	6610-71-3530	RING	1	SN: 25762-UP
?	6610-71-3550	SEAL	1	SN: 25762-UP
?	6610-71-3850	O-RING	1	SN: 25762-UP
?	6610-71-3820	RING	1	SN: 25762-UP
