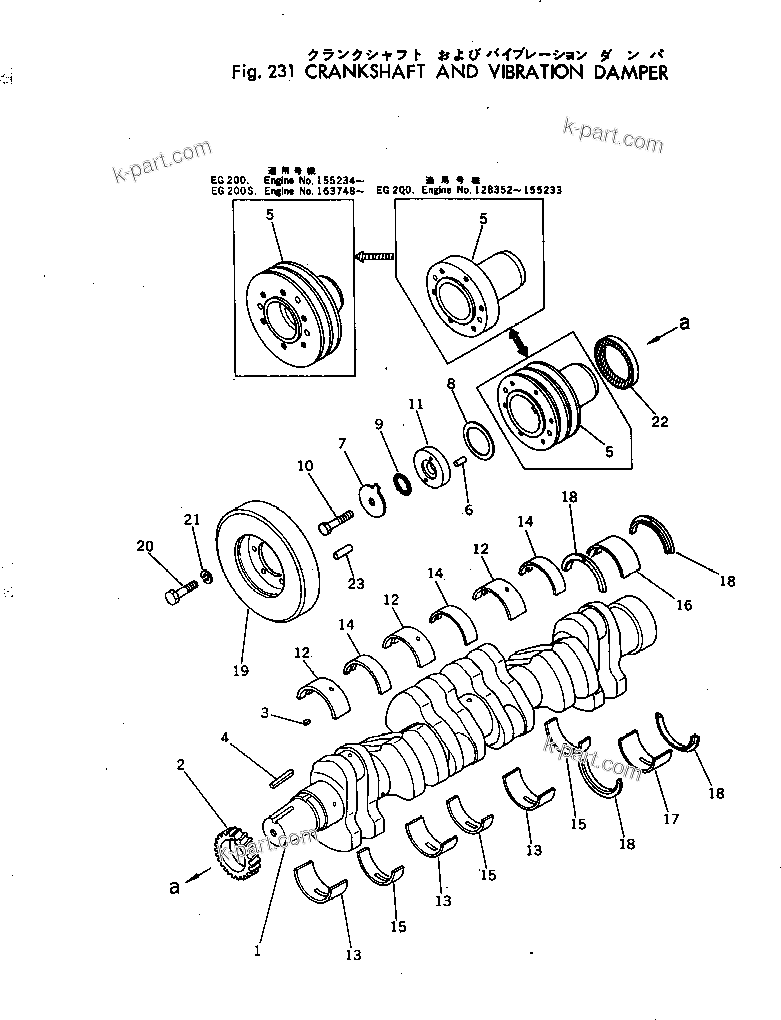

CRANKSHAFT AND VIBRATION DAMPER | NTC-743-1B S/N 108380-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6657-31-1010	CRANKSHAFT ASS'Y	1	SN: 108380-UP
?		CRANKSHAFT	1	SN: 108380-UP
?	02720-20204	PLUG	6	SN: 108380-UP
?	6623-31-1120	GEAR	1	SN: 108380-UP
?	6610-31-1130	KEY	1	SN: 108380-UP
?	6643-31-1421	KEY	1	SN: 108380-UP
?	6657-32-1410	PULLEY	1	SN: 108380-UP
?	6657-33-1410	PULLEY,(SANDY AND DUSTY SPEC.)	1	SN: 108380-UP
?	04020-00514	PIN	1	SN: 108380-UP
?	6685-31-1471	GASKET (KIT)	1	SN: .-UP
?	6685-31-1470	GASKET (KIT)	1	SN: 108380-.
?	6631-31-1430	BOLT	1	SN: 118436-UP
?	6670-31-1441	RETAINER	1	SN: 108380-118435
?	6643-31-1440	RETAINER	1	SN: 118436-UP
?	6610-21-8010	METAL ASS'Y (STD)	1	SN: 108380-UP
?	6610-21-8070	MAIN METAL ASS'Y	1	SN: 108380-UP
?	6610-21-8020	MAIN METAL ASS'Y	3	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?	6610-21-8030	MAIN METAL ASS'Y	3	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?	6610-21-8040	MAIN METAL ASS'Y	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?	6610-21-8051	THRUST METAL ASS'Y	1	SN: 108380-UP
?		METAL	4	SN: 108380-UP
?	6610-29-8070	MAIN METAL ASS'Y,0.25MM (US)	1	SN: 108380-UP
?	6610-29-8020	MAIN METAL ASS'Y	3	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?	6610-29-8030	MAIN METAL ASS'Y	3	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?	6610-29-8040	MAIN METAL ASS'Y	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?	6610-28-8070	MAIN METAL ASS'Y,0.50MM (US)	1	SN: 108380-UP
?	6610-28-8020	MAIN METAL ASS'Y	3	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?	6610-28-8030	MAIN METAL ASS'Y	3	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?	6610-28-8040	MAIN METAL ASS'Y	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?	6610-27-8070	MAIN METAL ASS'Y,0.75MM (US)	1	SN: 108380-UP
?	6610-27-8020	MAIN METAL ASS'Y	3	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?	6610-27-8030	MAIN METAL ASS'Y	3	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?	6610-27-8040	MAIN METAL ASS'Y	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?	6610-26-8070	MAIN METAL ASS'Y,1.0MM (US)	1	SN: 108380-UP
?	6610-26-8020	MAIN METAL ASS'Y	3	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?	6610-26-8030	MAIN METAL ASS'Y	3	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?	6610-26-8040	MAIN METAL ASS'Y	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?		METAL	1	SN: 108380-UP
?	6610-29-8051	THRUST METAL ASS'Y,0.25MM (OS)	1	SN: 108380-UP
?		METAL	2	SN: 108380-UP
?		METAL	2	SN: 108380-UP
?	6610-28-8051	THRUST METAL ASS'Y,0.50MM (OS)	1	SN: 108380-UP
?		METAL	4	SN: 108380-UP
?	6610-27-8051	THRUST METAL ASS'Y,0.75MM (OS)	1	SN: 108380-UP
?		METAL	2	SN: 108380-UP
?		METAL	2	SN: 108380-UP
?	6610-26-8051	THRUST METAL ASS'Y,0.10MM (OS)	1	SN: 108380-UP
?		METAL	4	SN: 108380-UP
?	6623-31-8102	DAMPER ASS'Y	1	SN: 108380-UP
?	01010-31225	BOLT	6	SN: 108380-UP
?	01602-01236	WASHER	6	SN: 108380-UP
?	6610-21-3520	SEAL (KIT)	1	SN: 108380-UP
