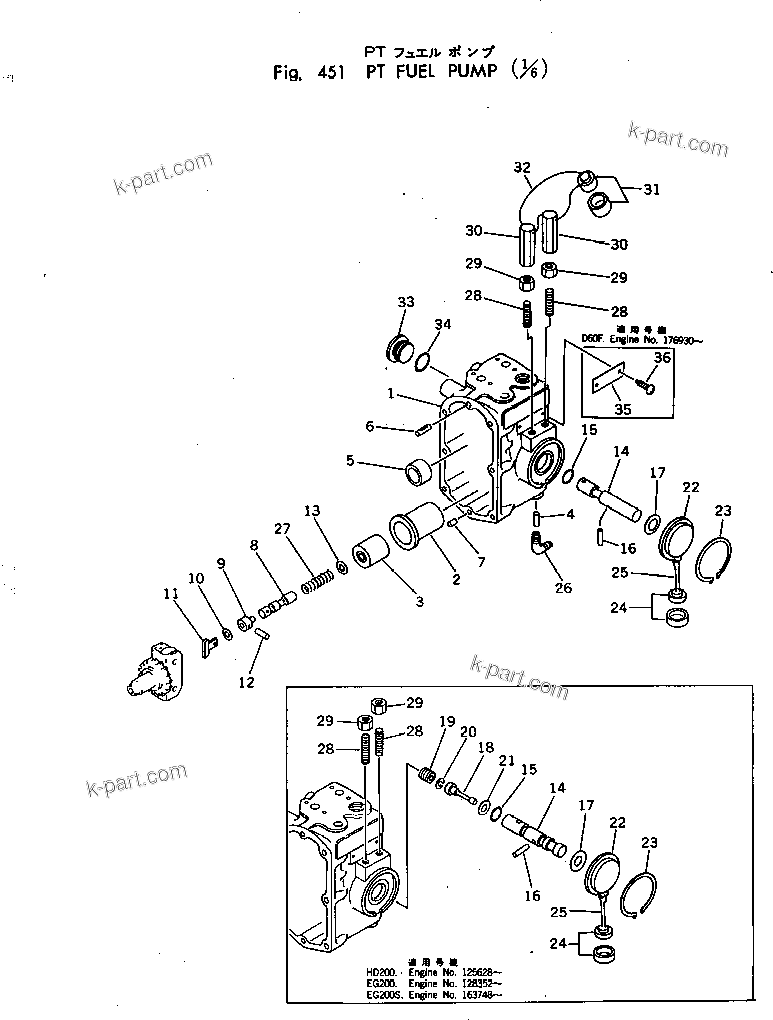

PT FUEL PUMP (1/6) | NTC-743-1B S/N 108380-UP | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6667-71-1101	PT FUEL PUMP ASS'Y	1	SN: 139523-UP
?	6667-71-1100	PT FUEL PUMP ASS'Y	1	SN: 108380-139522
?	6610-71-1011	HOUSING ASS'Y	1	SN: 108380-UP
?	6610-71-1020	HOUSING ASS'Y	1	SN: 108380-UP
?		HOUSING	1	SN: 108380-UP
?		PLUG	1	SN: 108380-UP
?		SLEEVE	1	SN: 108380-UP
?		SLEEVE	1	SN: 108380-UP
?		HOUSING	1	SN: 108380-UP
?	6610-71-1030	BARREL ASS'Y (STD)	1	SN: 108380-UP
?	6610-79-1030	BARREL ASS'Y,0.25MM (OS)	1	SN: 108380-UP
?	6610-78-1030	BARREL ASS'Y,0.50MM (OS)	1	SN: 108380-UP
?		BARREL (STD)	1	SN: 108380-UP
?		BARREL,0.25MM (OS)	1	SN: 108380-UP
?		BARREL,0.50MM (OS)	1	SN: 108380-UP
?		SLEEVE	1	SN: 108380-UP
?	6610-71-1180	CLIP	1	SN: 108380-UP
?		BUSHING	1	SN: 108380-UP
?	6610-71-1160	PIN	1	SN: 108380-UP
?	6610-71-1151	RING	1	SN: 139523-UP
?	6610-71-1150	PIN	1	SN: 108380-139522
?	6610-71-1041	PLUNGER ASS'Y,RED ? CLASS 0	1	SN: 108380-UP
?	6610-79-1041	PLUNGER ASS'Y,BLUE ? CLASS 1	1	SN: 108380-UP
?	6610-78-1041	PLUNGER ASS'Y,GREEN ? CLASS 2	1	SN: 108380-UP
?	6610-77-1041	PLUNGER ASS'Y,YELLOW ? CLASS 3	1	SN: 108380-UP
?	6610-76-1041	PLUNGER ASS'Y,BROWN ? CLASS 4	1	SN: 108380-UP
?	6610-75-1041	PLUNGER ASS'Y,BLACK ? CLASS 5	1	SN: 108380-UP
?	6610-74-1041	PLUNGER ASS'Y,GRAY ? CLASS 6 (OS)	1	SN: 108380-UP
?	6610-73-1041	PLUNGER ASS'Y,PARPLE ? CLASS 7 (OS)	1	SN: 108380-UP
?	6610-71-1411	PLUNGER	1	SN: 108380-UP
?	6610-79-1411	PLUNGER	1	SN: 108380-UP
?	6610-78-1411	PLUNGER	1	SN: 108380-UP
?	6610-77-1411	PLUNGER	1	SN: 108380-UP
?	6610-76-1411	PLUNGER	1	SN: 108380-UP
?	6610-75-1411	PLUNGER	1	SN: 108380-UP
?	6610-74-1411	PLUNGER (OS)	1	SN: 108030-UP
?	6610-73-1411	PLUNGER (OS)	1	SN: 108380-UP
?	6610-71-1452	SPACER	1	SN: .-UP
?	6610-71-1451	SPACER	1	SN: 108380-.
?	6610-71-1420	WASHER	1	SN: 108380-UP
?	6610-71-1430	DRIVE	1	SN: 108380-UP
?	6610-71-1440	PIN	1	SN: 108380-UP
?	6610-71-1460	SHIM ? 0.13MM	-2	SN: 108380-UP
?	6610-71-1470	SHIM ? 0.25MM	-2	SN: 108380-UP
?	6610-71-1480	SHIM ? 0.51MM	-2	SN: 108380-UP
?	6610-71-1090	SHAFT ASS'Y,RED ? CLASS 0	1	SN: 108380-UP
?	6610-79-1090	SHAFT ASS'Y,BLUE ? CLASS 1	1	SN: 108380-UP
?	6610-78-1090	SHAFT ASS'Y,GREEN ? CLASS 2	1	SN: 108380-UP
?	6610-77-1090	SHAFT ASS'Y,YELLOW ? CLASS 3	1	SN: 108380-UP
?	6610-76-1090	SHAFT ASS'Y,BROWN ? CLASS 4	1	SN: 108380-UP
?	6610-75-1090	SHAFT ASS'Y,BLACK ? CLASS 5	1	SN: 108380-UP
?	6610-71-1340	SHAFT	1	SN: 108380-UP
?	6610-79-1340	SHAFT	1	SN: 108380-UP
?	6610-78-1340	SHAFT	1	SN: 108380-UP
?	6610-77-1340	SHAFT	1	SN: 108380-UP
?	6610-76-1340	SHAFT	1	SN: 108380-UP
?	6610-75-1340	SHAFT	1	SN: 108380-UP
?	6610-71-1320	O-RING (KIT)	1	SN: 108380-UP
?	6610-71-1360	PIN	1	SN: 108380-UP
?	6610-71-1370	WASHER	2	SN: 108380-UP
?	6610-71-1730	COVER	1	SN: 125628-UP
?	6600-01-3110	RING	1	SN: 108380-UP
?	6610-71-1760	SEAL	1	SN: 108380-UP
?	02720-20204	PLUG	1	SN: 108380-UP
?	6610-71-5100	SPRING	1	SN: 108380-UP
?	6610-71-1790	SCREW	2	SN: 125628-UP
?	02216-10404	NUT	2	SN: 108380-UP
?	6610-71-1760	SEAL	1	SN: 108380-UP
?	6610-71-1771	WIRE	1	SN: 108380-UP
?	6610-71-1870	PLUG	1	SN: 108380-UP
?	02891-02018	O-RING (KIT)	1	SN: 108380-UP
