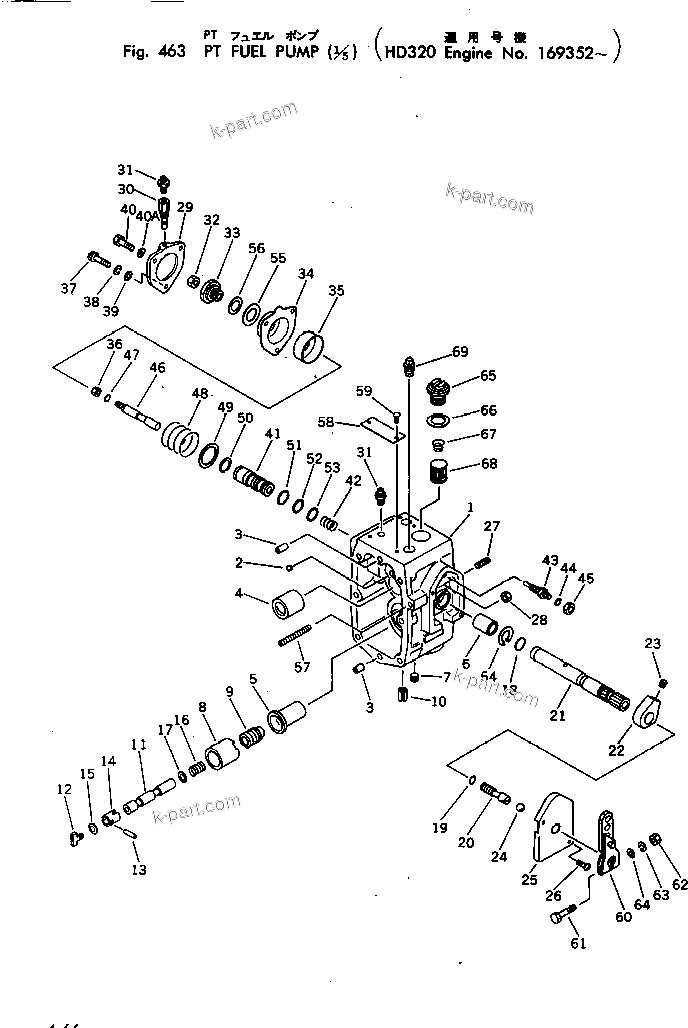

PT FUEL PUMP (1/5)(#169352-) | NTA-855-1A S/N 102754-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6710-71-1060	PT FUEL PUMP ASS'Y	1	SN: 169352-UP
?	6710-72-2100	HOUSING ASS'Y	1	SN: 169352-UP
?		HOUSING	1	SN: 169352-UP
?	6710-71-1720	BALL	2	SN: 169352-UP
?	6610-71-1151	RING	2	SN: 169352-UP
?	6610-71-1120	BUSHING	1	SN: 169352-UP
?	6710-72-1140	HOUSING	1	SN: 169352-UP
?	6710-71-1130	SLEEVE	1	SN: 169352-UP
?	02720-40204	PLUG	4	SN: 169352-UP
?	6710-72-1200	BARREL ASS'Y	1	SN: 169352-UP
?		BARREL	1	SN: 169352-UP
?		SLEEVE	1	SN: 169352-UP
?	6610-71-1180	CLIP	1	SN: 169352-UP
?	6711-71-1401	PLUNGER ASS'Y,(RED ? CLASS 0)	1	SN: 169352-UP
?	6711-79-1401	PLUNGER ASS'Y,(BLUE ? CLASS 1)	1	SN: 169352-UP
?	6711-78-1401	PLUNGER ASS'Y,(GREEN ? CLASS 2)	1	SN: 169352-UP
?	6711-77-1401	PLUNGER ASS'Y,(YELLOW ? CLASS 3)	1	SN: 169352-UP
?	6711-76-1401	PLUNGER ASS'Y,(ORANGE ? CLASS 4)	1	SN: 169352-UP
?	6711-75-1401	PLUNGER ASS'Y,(BLACK ? CLASS 5)	1	SN: 169352-UP
?	6711-74-1401	PLUNGER ASS'Y,(GRAY ? CLASS 6)	1	SN: 169352-UP
?	6711-73-1401	PLUNGER ASS'Y,(PURPLE ? CLASS 7)	1	SN: 169352-UP
?	6710-71-1410	PLUNGER,(RED ? CLASS 0)	1	SN: 169352-UP
?	6710-79-1410	PLUNGER,(BLUE ? CLASS 1)	1	SN: 169352-UP
?	6710-78-1410	PLUNGER,(GREEN ? CLASS 2)	1	SN: 169352-UP
?	6710-77-1410	PLUNGER,(YELLOW ? CLASS 3)	1	SN: 169352-UP
?	6710-76-1410	PLUNGER,(ORANGE ? CLASS 4)	1	SN: 169352-UP
?	6710-75-1410	PLUNGER,(BLACK ? CLASS 5)	1	SN: 169352-UP
?	6710-74-1410	PLUNGER,(GRAY ? CLASS 6)	1	SN: 169352-UP
?	6710-73-1410	PLUNGER,(PURPLE ? CLASS 7)	1	SN: 169352-UP
?	6610-71-1430	DRIVE	1	SN: 169352-UP
?	6610-71-1440	PIN	1	SN: 169352-UP
?	6610-71-1452	SPACER	1	SN: 169352-UP
?	6610-71-1420	WASHER	1	SN: 169352-UP
?		SPRING 16.3-16.8MM	-1
?	6610-71-5100	SPRING,(RED)	1	SN: 169352-UP
?	6610-71-5110	SPRING,(BLUE)	1	SN: 169352-UP
?	6610-71-5120	SPRING,(LIGHTBROWN)	1	SN: 169352-UP
?	6610-71-5130	SPRING,(YELLOW)	1	SN: 169352-UP
?	6610-71-5140	SPRING,(RED-BLUE)	1	SN: 169352-UP
?	6610-71-5150	SPRING,(RED-LIGHTBROWN)	1	SN: 169352-UP
?	6610-71-5160	SPRING,(RED-YELLOW)	1	SN: 169352-UP
?	6610-71-5170	SPRING,(BLUE-LIGHTBROWN)	1	SN: 169352-UP
?	6610-71-5180	SPRING,(BLUE-YELLOW)	1	SN: 169352-UP
?	6610-71-5190	SPRING,(LIGHTBROWN-YELLOW)	1	SN: 169352-UP
?		SPRING 15.0-15.5MM	-1
?	6610-71-5200	SPRING,(RED)	1	SN: 169352-UP
?	6610-71-5210	SPRING,(BLUE)	1	SN: 169352-UP
?	6610-71-5220	SPRING,(LIGHTBROWN)	1	SN: 169352-UP
?	6610-71-5230	SPRING,(YELLOW)	1	SN: 169352-UP
?	6610-71-5240	SPRING,(RED-BLUE)	1	SN: 169352-UP
?	6610-71-5250	SPRING,(RED-LIGHTBROWN)	1	SN: 169352-UP
?	6610-71-5260	SPRING,(RED-YELLOW)	1	SN: 169352-UP
?	6610-71-5270	SPRING,(BLUE-LIGHTBROWN)	1	SN: 169352-UP
?	6610-71-5280	SPRING,(BLUE-YELLOW)	1	SN: 169352-UP
?	6610-71-5290	SPRING,(LIGHTBROWN-YELLOW)	1	SN: 169352-UP
?		SPRING 13.7-14.2MM	-1
?	6610-71-5300	SPRING,(RED)	1	SN: 169352-UP
?	6610-71-5310	SPRING,(BLUE)	1	SN: 169352-UP
?	6610-71-5320	SPRING,(LIGHTBROWN)	1	SN: 169352-UP
?	6610-71-5330	SPRING,(YELLOW)	1	SN: 169352-UP
?	6610-71-5340	SPRING,(RED-BLUE)	1	SN: 169352-UP
?	6610-71-5350	SPRING,(RED-LIGHTBROWN)	1	SN: 169352-UP
?	6610-71-5360	SPRING,(RED-YELLOW)	1	SN: 169352-UP
?	6610-71-5370	SPRING,(BLUE-LIGHTBROWN)	1	SN: 169352-UP
?	6610-71-5380	SPRING,(BLUE-YELLOW)	1	SN: 169352-UP
?	6610-71-5390	SPRING,(LIGHTBROWN-YELLOW)	1	SN: 169352-UP
?		SPRING 12.5-13.0MM	-1
?	6610-71-5400	SPRING,(RED)	1	SN: 169352-UP
?	6610-71-5410	SPRING,(BLUE)	1	SN: 169352-UP
?	6610-71-5420	SPRING,(LIGHTBROWN)	1	SN: 169352-UP
?	6610-71-5430	SPRING,(YELLOW)	1	SN: 169352-UP
?	6610-71-5440	SPRING,(RED-BLUE)	1	SN: 169352-UP
?	6610-71-5450	SPRING,(RED-LIGHTBROWN)	1	SN: 169352-UP
?	6610-71-5460	SPRING,(RED-YELLOW)	1	SN: 169352-UP
?	6610-71-5470	SPRING,(BLUE-LIGHTBROWN)	1	SN: 169352-UP
?	6610-71-5480	SPRING,(BLUE-YELLOW)	1	SN: 169352-UP
?	6610-71-5490	SPRING,(LIGHTBROWN-YELLOW)	1	SN: 169352-UP
?	6610-71-1460	SHIM ? 0.13MM	-2	SN: 169352-UP
?	6610-71-1470	SHIM ? 0.25MM	-2	SN: 169352-UP
?	6610-71-1480	SHIM ? 0.51MM	-2	SN: 169352-UP
?	6610-71-1320	O-RING (K6)	1	SN: 169352-UP
?	6610-71-3150	O-RING	1	SN: 169352-UP
?	6710-71-1331	SCREW	1	SN: 169352-UP
?	6711-71-1300	SHAFT ASS'Y,(RED ? CLASS 0)	1	SN: 169352-UP
?	6711-79-1300	SHAFT ASS'Y,(BLUE ? CLASS 1)	1	SN: 169352-UP
?	6711-78-1300	SHAFT ASS'Y,(GREEN ? CLASS 2)	1	SN: 169352-UP
?	6711-77-1300	SHAFT ASS'Y,(YELLOW ? CLASS 3)	1	SN: 169352-UP
?	6711-76-1300	SHAFT ASS'Y,(ORANGE ? CLASS 4)	1	SN: 169352-UP
?	6711-75-1300	SHAFT ASS'Y,(BLACK ? CLASS 5)	1	SN: 169352-UP
?	6711-74-1300	SHAFT ASS'Y,(GREY ? CLASS 6)	1	SN: 169352-UP
?	6711-73-1300	SHAFT ASS'Y,(PURPLE ? CLASS 7)	1	SN: 169352-UP
?	6710-71-1312	SHAFT,(RED ? CLASS 0)	1	SN: 169352-UP
?	6710-79-1312	SHAFT,(BLUE ? CLASS 1)	1	SN: 169352-UP
?	6710-78-1312	SHAFT,(GREEN ? CLASS 2)	1	SN: 169352-UP
?	6710-77-1312	SHAFT,(YELLOW ? CLASS 3)	1	SN: 169352-UP
?	6710-76-1312	SHAFT,(ORANGE ? CLASS 4)	1	SN: 169352-UP
?	6710-75-1312	SHAFT,(BLACK ? CLASS 5)	1	SN: 169352-UP
?	6710-74-1312	SHAFT,(GREY ? CLASS 6)	1	SN: 169352-UP
?	6710-73-1312	SHAFT,(PURPLE ? CLASS 7)	1	SN: 169352-UP
?	6710-71-3141	STOP	1	SN: 169352-UP
?	6710-71-2730	SCREW	1	SN: 169352-UP
?	6710-71-2930	BALL	1	SN: 169352-UP
?	6710-71-1731	COVER	1	SN: 169352-UP
?	6685-82-9370	SCREW	2	SN: 169352-UP
?	6710-71-1791	SCREW	1	SN: 169352-UP
?	02216-10404	NUT	2	SN: 169352-UP
?	6710-71-2912	COVER	1	SN: 169352-UP
?	6710-71-3800	VALVE ASS'Y	1	SN: 169352-UP
?	6710-71-9610	CONNECTOR	2	SN: 169352-UP
?	02216-10404	NUT	1	SN: 169352-UP
?	6710-71-2820	BOLT	1	SN: 169352-UP
?	6710-71-2841	BELLOWS	1	SN: 169352-UP
?	6710-71-2851	PISTON	1	SN: 169352-UP
?	02216-10808	NUT	1	SN: 169352-UP
?	6710-71-2770	BOLT	1	SN: 169352-UP
?	01602-00720	WASHER	3	SN: 169352-UP
?	6610-71-1840	WASHER	3	SN: 169352-UP
?	02010-70425	BOLT	2	SN: 169352-UP
?	6710-81-8730	WASHER	2	SN: 169352-UP
?	6710-71-2892	BARREL	1	SN: .-UP
?	6710-71-2891	BARREL ? AFC	1	SN: 169352-.
?	6610-71-5180	SPRING	1	SN: 169352-UP
?	6710-71-2960	VALVE	1	SN: 169352-UP
?	6710-71-2951	O-RING	1	SN: 169352-UP
?	02216-10505	NUT	1	SN: 169352-UP
?	6710-73-1031	PLUNGER ASS'Y	1	SN: 169352-UP
?		PLUNGER	1	SN: 169352-UP
?	02890-01007	O-RING	1	SN: 169352-UP
?	6710-72-2910	SPRING	1	SN: 169352-UP
?	6710-71-2810	SHIM	1	SN: 169352-UP
?	6600-01-3120	RING	1	SN: 169352-UP
?	02890-01020	O-RING	1	SN: 169352-UP
?	02890-01018	O-RING	1	SN: 169352-UP
?	6710-71-2880	O-RING	1	SN: 169352-UP
?	6610-71-2131	RING	1	SN: 169352-UP
?	6710-71-2860	WASHER	1	SN: 169352-UP
?	6710-71-2920	WASHER	1	SN: 169352-UP
?	6710-71-2760	SCREW	1	SN: 169352-UP
?	6610-71-1712	PLATE ? NAME	1	SN: 169352-UP
?	6685-82-9370	SCREW	2	SN: 169352-UP
?	6710-71-1300	LEVER	1	SN: 169352-UP
?	02030-20438	BOLT	1	SN: 169352-UP
?	02216-10404	NUT	1	SN: 169352-UP
?	02310-10916	WASHER	1	SN: 169352-UP
?	6610-71-1840	WASHER	1	SN: 169352-UP
?	6684-71-3811	CAP	1	SN: 169352-UP
?	6610-71-3530	RING (K6)	1	SN: 169352-UP
?	6610-71-3830	SPRING	1	SN: 169352-UP
?	6684-71-3601	SCREEN	1	SN: 169352-UP
?	6610-71-1860	PLUG	1	SN: 169352-UP
