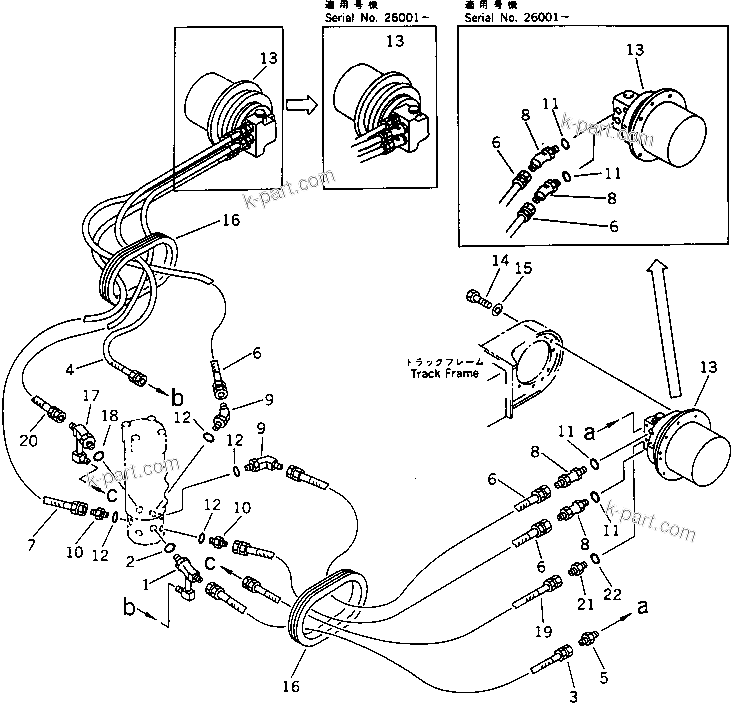

HYDRAULIC PIPING (SWIVEL JOINT TO/FROM TRAVEL MOTOR) (FOR 2ND TRAVEL SPEED) (OP) | PC20-6 S/N 24001-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	20S-62-32111	TEE	1	SN: 24001-UP
?	07002-11823	O-RING	1	SN: 24001-UP
?	07182-20310	HOSE	1	SN: 24001-UP
?	07182-20311	HOSE	1	SN: 24001-UP
?	176-62-15490	NIPPLE,(FOR 2ND TRAVEL SPEED) (OP)	2	SN: 24001-UP
?	20S-62-32250	HOSE	3	SN: 28280-UP
?	20S-62-32130	HOSE	3	SN: 24001-28279
?	20S-62-32260	HOSE	1	SN: 28280-UP
?	20S-62-32141	HOSE	1	SN: 24001-28279
?	20S-62-32180	ELBOW,(FOR 2ND TRAVEL SPEED) (OP)	4	SN: 26001-UP
?	20S-62-32190	NIPPLE,(FOR 2ND TRAVEL SPEED) (OP)	4	SN: 24001-26000
?	20R-62-21541	ELBOW	2	SN: 24001-UP
?	20S-62-15591	ELBOW	2	SN: 24001-UP
?	07002-12034	O-RING	4	SN: 24001-UP
?	07002-11823	O-RING	4	SN: 24001-UP
?	20S-60-33101	TRAVEL MOTOR ASS'Y,(FOR 2ND TRAVEL SPEED) (OP)	2	SN: 29361-UP
?	20S-60-33100	TRAVEL MOTOR ASS'Y,(FOR 2ND TRAVEL SPEED) (OP)	2	SN: 26001-29360
?	20S-60-32100	TRAVEL MOTOR ASS'Y,(FOR 2ND TRAVEL SPEED) (OP)	2	SN: 24001-26000
?	01010-51230	BOLT	18	SN: 24001-UP
?	01643-31232	WASHER	18	SN: 24001-UP
?	20S-62-32120	GROMMET	2	SN: 24001-UP
?	20S-62-32210	TEE,(FOR 2ND TRAVEL SPEED) (OP)	1	SN: 24001-UP
?	07002-11823	O-RING,(FOR 2ND TRAVEL SPEED) (OP)	1	SN: 24001-UP
?	07108-20211	HOSE,(FOR 2ND TRAVEL SPEED) (OP)	1	SN: 24001-UP
?	07108-20210	HOSE,(FOR 2ND TRAVEL SPEED) (OP)	1	SN: 24001-UP
?	07230-10210	UNION,(FOR 2ND TRAVEL SPEED) (OP)	2	SN: 24001-UP
?	07002-11423	O-RING,(FOR 2ND TRAVEL SPEED) (OP)	2	SN: 24001-UP
