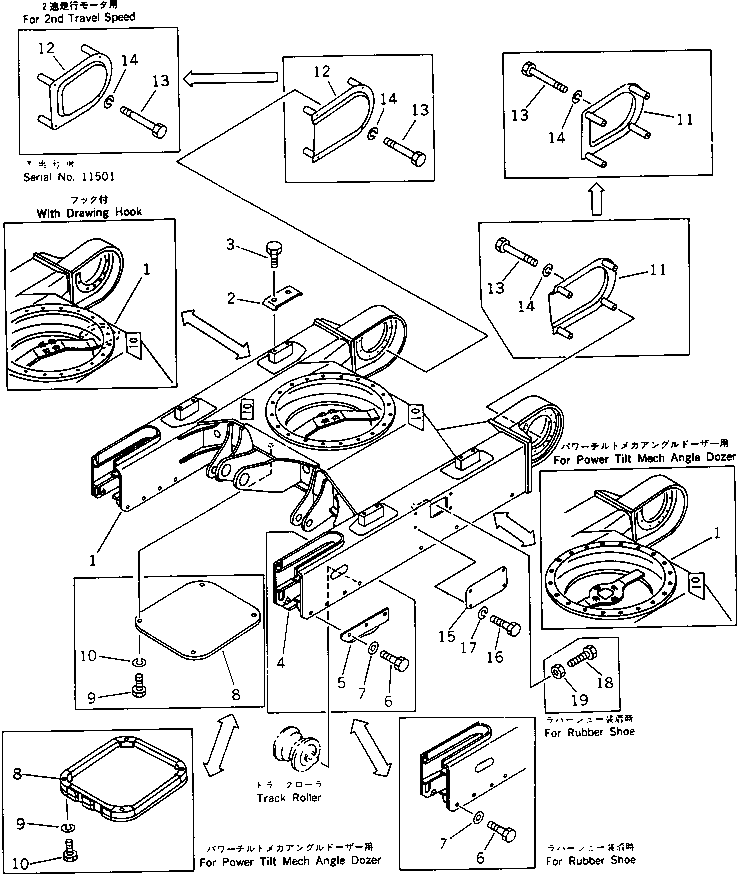

TRACK FRAME | PC20-6 S/N 24001-UP | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
G-1	20S-30-X2100	FRAME GROUP,(WITH DRAWING HOOK)	1	SN: 24001-UP
\|$$2		====================	-1
1	20S-30-32510	FRAME,(WITH DRAWING HOOK)	1	SN: 24001-UP
\|$$4		====================	-1
\|1	20S-30-31112	FRAME,TRACK	1	SN: 29361-UP
\|1	20S-30-31111	FRAME,TRACK	1	SN: 28280-29360
\|1	20S-30-31110	FRAME,TRACK	1	SN: 24001-28279
\|1	20S-910-3150	FRAME,TRACK (FOR POWER TILT M/ANGLE)	1	SN: 29361-UP
2	20S-30-31190	PLATE	4	SN: 24001-UP
3	01010-51225	BOLT	8	SN: 24001-UP
4	20S-30-31222	GUARD,L.H. INNER AND R.H. OUTER	2	SN: 28280-UP
\|4	20S-30-31221	GUARD,L.H. INNER AND R.H. OUTER	2	SN: 24001-28279
5	20S-30-31212	GUARD,L.H. OUTER AND R.H. INNER	2	SN: 28280-UP
\|5	20S-30-31211	GUARD,L.H. OUTER AND R.H. INNER	2	SN: 24001-28279
6	01010-51430	BOLT	12	SN: 24001-UP
\|6	01010-51425	BOLT,(FOR RUBBER SHOE)	12	SN: 24001-UP
7	01643-31445	WASHER	12	SN: 24001-UP
8	20S-30-21120	COVER	1	SN: 24001-UP
\|8	20T-910-4140	COVER,(FOR POWER TILT MECH ANGLE)	1	SN: 29361-UP
9	01010-51025	BOLT	4	SN: 24001-UP
\|9	01010-51045	BOLT,(FOR POWER TILT MECH ANGLE)	4	SN: 26361-UP
10	01602-21030	WASHER,SPRING	4	SN: 24001-UP
11	20S-30-31230	COVER,L.H.	1	SN: 24001-UP
\|11	20S-30-31330	COVER,L.H. (FOR 2ND TRAVEL SPEED) (OP)	1	SN: 26001-UP
\|11	20S-30-31230	COVER,L.H. (FOR 2ND TRAVEL SPEED) (OP)	1	SN: 24001-26000
12	20S-30-31240	COVER,R.H.	1	SN: 24001-UP
\|12	20S-30-31340	COVER,R.H. (FOR 2ND TRAVEL SPEED) (OP)	1	SN: 26001-UP
\|12	20S-30-31240	COVER,R.H. (FOR 2ND TRAVEL SPEED) (OP)	1	SN: 24001-26000
13	01010-51085	BOLT	8	SN: 24001-UP
\|13	01010-51095	BOLT,(FOR 2ND TRAVEL SPEED) (OP)	8	SN: 26001-UP
\|13	01010-51085	BOLT,(FOR 2ND TRAVEL SPEED) (OP)	8	SN: 24001-26000
14	01602-21030	WASHER,SPRING	8	SN: 24001-UP
15	20S-30-31170	COVER	2	SN: 24001-UP
16	01010-51020	BOLT	8	SN: 24001-UP
17	01602-21030	WASHER,SPRING	8	SN: 24001-UP
18	20S-30-31180	BOLT,(FOR RUBBER SHOE)	2	SN: 24001-UP
19	01580-13326	NUT,(FOR RUBBER SHOE)	2	SN: 24001-UP
