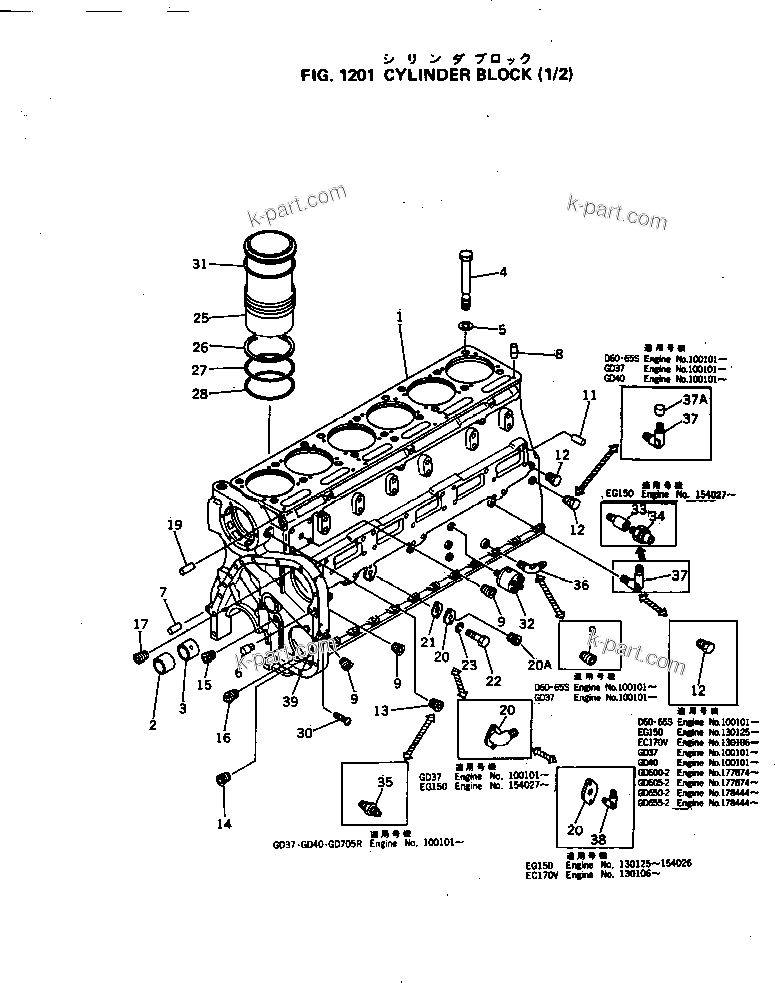

CYLINDER BLOCK (1/2) | NH-220-CI-2V S/N 141402-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6643-21-1016	CYLINDER BLOCK A.	1	SN: .-UP
?	6631-21-1004	CYLINDER BLOCK A.	1	SN: 141402-.
?	6643-21-1026	CYLINDER BLOCK A.	1	SN: .-UP
?	6631-21-1023	CYLINDER BLOCK A.	1	SN: 141402-.
?		BLOCK	1	SN: 141402-UP
?	6610-21-1040	BUSHING ASS'Y,CAMSHAFT	1	SN: 141402-UP
?	6610-21-1410	BUSHING,FRONT	1	SN: 141402-UP
?	6610-21-1420	BUSHING	6	SN: 141402-UP
?	6610-11-1611	BOLT	18	SN: 141402-UP
?	6610-11-1620	WASHER	18	SN: 141402-UP
?	6620-21-3610	PIN,DOWEL, GEAR COVER	1	SN: 141402-UP
?	6620-21-3620	PIN,DOWEL, GEAR COVER	1	SN: 141402-UP
?	6610-11-1410	PIN,DOWEL, CYLINDER HEAD	9	SN: 141402-UP
?	02720-20810	PLUG	3	SN: 141402-UP
?	02400-10416	PIN,DOWEL, CAM FOLLOWER	6	SN: 141402-UP
?	6610-21-2720	PLUG,OIL HEADER	6	SN: 141402-UP
?	02720-20607	PLUG	4	SN: 141402-UP
?	02720-20204	PLUG	1	SN: 141402-UP
?	02720-20810	PLUG	1	SN: 141402-UP
?	6600-01-2860	PLUG	1	SN: 141402-UP
?	02720-21214	PLUG	1	SN: 141402-UP
?	6610-21-2790	PIN,DOWEL	1	SN: 141402-UP
?	6691-51-9930	FLANGE,OIL HEADER	1	SN: .-UP
?	6610-21-6730	FLANGE,OIL HEADER	1	SN: 141402-.
?	02720-20810	PLUG	1	SN: .-UP
?	6610-21-5671	GASKET (K2)	1	SN: 141402-UP
?	02030-20625	BOLT	2	SN: 141402-UP
?	02310-11224	WASHER,SPRING	2	SN: 141402-UP
?	6610-21-2213	LINER,CYLINDER	6	SN: .-UP
?	6610-21-2212	LINER,CYLINDER	6	SN: 141402-.
?	6610-21-2240	SEAL,CREVICE (K2)	6	SN: 141402-UP
?	6610-21-2221	O-RING (K2)	6	SN: 141402-UP
?	6610-21-2250	O-RING (K2)	6	SN: 141402-UP
?	04418-02550	SCREW	4	SN: 141402-UP
?	6610-29-2330	SHIM, 0.18MM,(SERVICE PARTS)	-2	SN: 141402-UP
?	6610-28-2330	SHIM, 0.20MM,(SERVICE PARTS)	-2	SN: 141402-UP
?	6610-27-2330	SHIM, 0.23MM,(SERVICE PARTS)	-2	SN: 141402-UP
?	6610-26-2330	SHIM, 0.51MM,(SERVICE PARTS)	-2	SN: 141402-UP
?	6610-25-2330	SHIM, 0.79MM,(SERVICE PARTS)	-2	SN: 141402-UP
?	6610-24-2330	SHIM, 1.57MM,(SERVICE PARTS)	-2	SN: 141402-UP
?	02701-11208	ELBOW	1	SN: 141402-UP
?	6610-81-8820	ELBOW,PRESSURE GAUGE	1	SN: 141402-UP
?	6610-81-8950	CAP	1	SN: 141402-UP
?	6620-81-1117	PLATE, NAME,(LIMITED SUPPLY)	1	SN: 141402-UP
