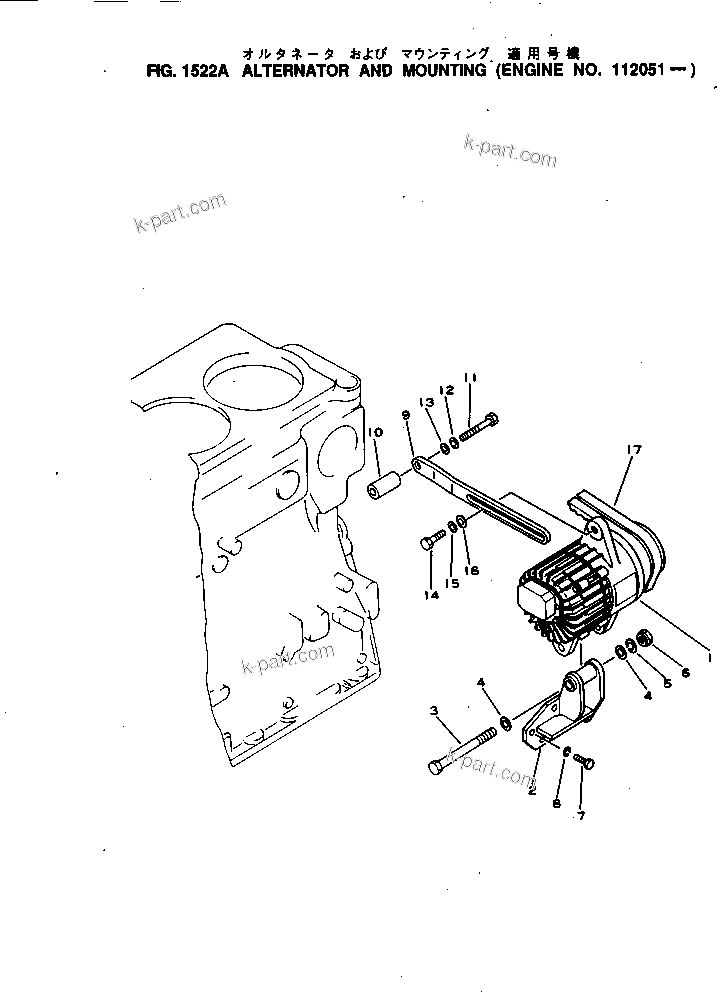

ALTERNATOR AND MOUNTING(#112051-) | NH-220-CI-2K S/N 100101-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	600-821-3350	ALTERNATOR A. (13A)	1	SN: 112051-UP
?	600-821-8170	ALTERNATOR A.,(COLD WEATHER SPEC.)	1	SN: 112051-UP
?	6631-22-6320	BRACKET	1	SN: 112051-UP
?	6631-24-6331	BRACKET,(COLD WEATHER SPEC.)	1	SN: 112051-UP
?	6112-21-6580	BOLT	1	SN: 112051-UP
?	6631-24-6320	BOLT,(COLD WEATHER SPEC.)	1	SN: 112051-UP
?	01641-21423	WASHER	2	SN: 112051-UP
?	01602-01442	WASHER,SPRING	1	SN: 112051-UP
?	01580-01411	NUT	1	SN: 112051-UP
?	02010-70625	BOLT	4	SN: 112051-UP
?	02010-70625	BOLT,(COLD WEATHER SPEC.)	3	SN: 112051-UP
?	01602-00929	WASHER,SPRING	4	SN: 112051-UP
?	01602-00929	WASHER,SPRING (COLD WEATHER SPEC.)	3	SN: 112051-UP
?	6691-21-6340	PLATE,ADJUSTING	1	SN: 112051-UP
?	6631-24-6360	PLATE,ADJUSTING (COLD WEATHER SPEC.)	1	SN: 112051-UP
?	6631-22-6390	SPACER	1	SN: 130359-UP
?	6693-22-6390	SPACER	1	SN: 112051-130358
?	01050-31075	BOLT	1	SN: 112051-UP
?	01050-31235	BOLT,(COLD WEATHER SPEC.)	1	SN: 112051-UP
?	01602-01030	WASHER,SPRING	1	SN: 112051-UP
?	01641-21016	WASHER	1	SN: 112051-UP
?	01050-31235	BOLT	1	SN: 112051-UP
?	01602-01236	WASHER,SPRING	1	SN: 112051-UP
?	01641-21016	WASHER	1	SN: 112051-UP
?	6691-21-6360	SPACER,(COLD WEATHER SPEC.)	1	SN: 112051-130358
?	600-736-8460	V-BELT SET	1	SN: 112051-UP
?	04121-12259	V-BELT,(COLD WEATHER SPEC.)	1	SN: 112051-UP
