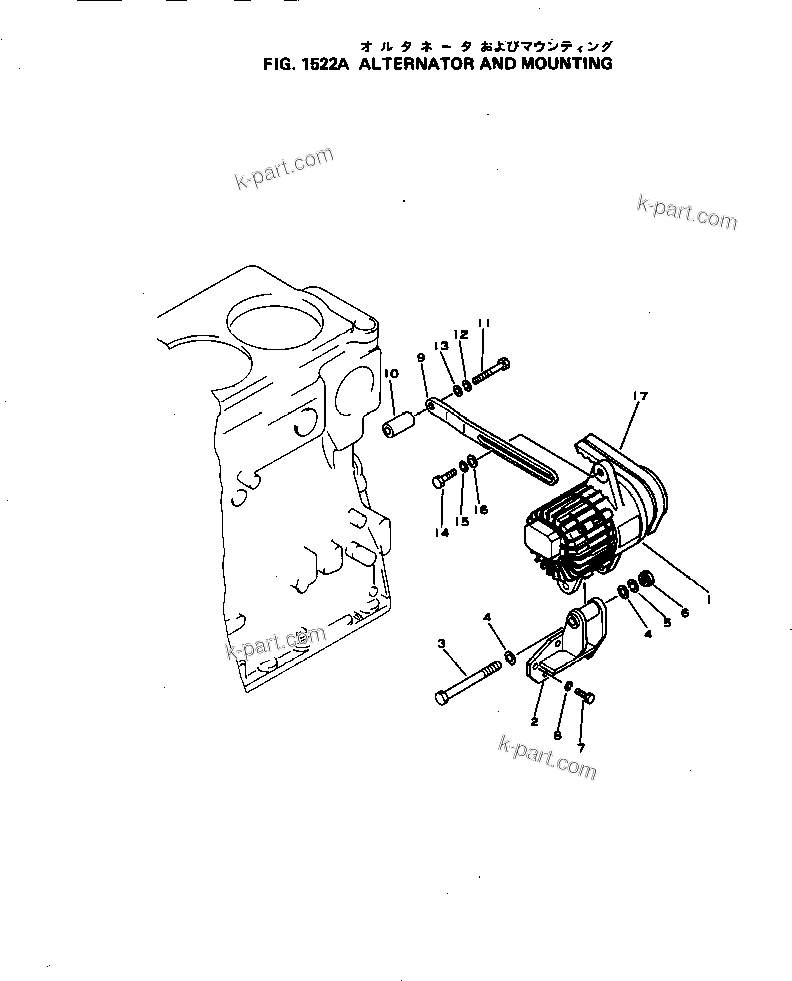

ALTERNATOR AND MOUNTING | NH-220-CI-2AA S/N 143358-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	600-821-3350	ALTERNATOR A. (13A)	1	SN: 143358-UP
?	600-821-8130	ALTERNATOR A. (35A),(COLD WEATHER SPEC.)	1	SN: 143358-UP
?	6631-22-6320	BRACKET	1	SN: 143358-UP
?	6678-24-6310	BRACKET,(COLD WEATHER SPEC.)	1	SN: 143358-UP
?	6112-21-6580	BOLT	1	SN: 143358-UP
?	6675-24-6321	BOLT,(COLD WEATHER SPEC.)	1	SN: 143358-UP
?	01641-21423	WASHER	2	SN: 143358-UP
?	01602-01442	WASHER,SPRING	1	SN: 143358-UP
?	01580-01411	NUT	1	SN: 143358-UP
?	02010-70625	BOLT	4	SN: 143358-UP
?	02010-70625	BOLT,(COLD WEATHER SPEC.)	3	SN: 143358-UP
?	01602-00929	WASHER,SPRING	4	SN: 143358-UP
?	01602-00929	WASHER,SPRING (COLD WEATHER SPEC.)	3	SN: 143358-UP
?	6691-21-6342	PLATE,ADJUSTING	1	SN: .-UP
?	6691-21-6341	PLATE,ADJUSTING	1	SN: 143358-.
?	6679-24-6351	PLATE,ADJUSTING (COLD WEATHER SPEC.)	1	SN: 143358-UP
?	6112-21-6960	SPACER	1	SN: 143358-UP
?	01050-31075	BOLT	1	SN: 143358-UP
?	01010-31030	BOLT,(COLD WEATHER SPEC.)	1	SN: 143358-UP
?	01602-01030	WASHER,SPRING	1	SN: 143358-UP
?	01640-21016	WASHER	1	SN: 143358-UP
?	01640-21123	WASHER,(COLD WEATHER SPEC.)	1	SN: 143358-UP
?	01050-31235	BOLT	1	SN: 143358-UP
?	01050-31240	BOLT,(COLD WEATHER SPEC.)	1	SN: 143358-UP
?	01602-01236	WASHER,SPRING	1	SN: 143358-UP
?	01641-21016	WASHER	1	SN: 143358-UP
?	6691-21-6360	SPACER,(COLD WEATHER SPEC.)	1	SN: 143358-UP
?	04121-22259	V-BELT SET	1	SN: 143358-UP
?	04121-22261	V-BELT SET,(COLD WEATHER SPEC.)	1	SN: 143358-UP
