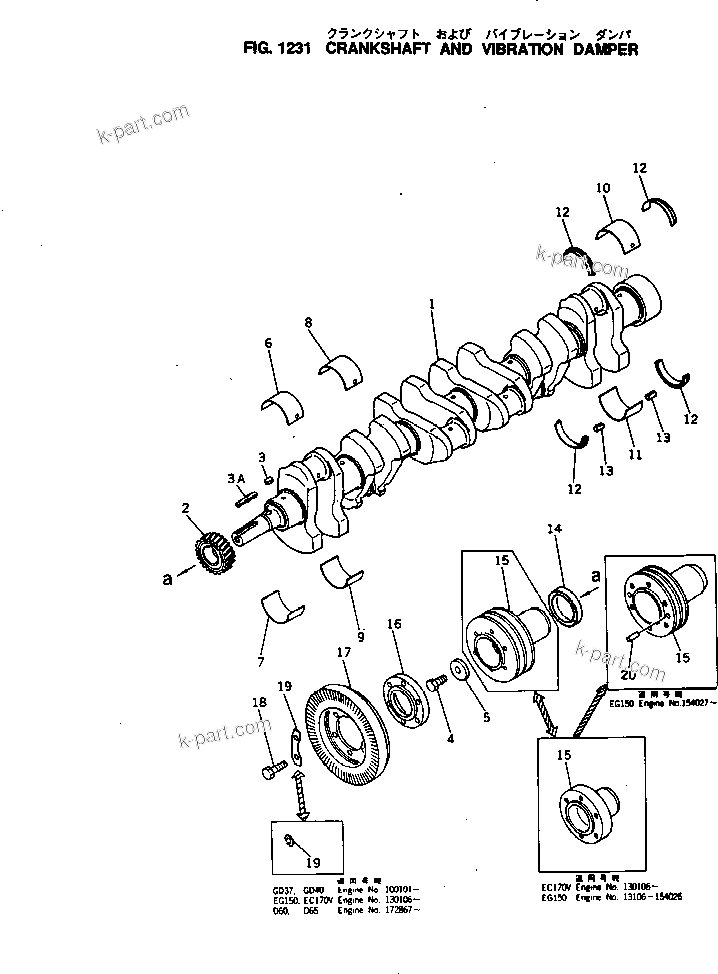

CRANKSHAFT AND VIBRATION DAMPER | NH-220-CI-2H S/N 100101-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6680-31-1011	CRANKSHAFT ASS'Y	1	SN: .-UP
?	6676-31-1010	CRANKSHAFT ASS'Y	1	SN: 100101-.
?	6623-31-1111	CRANKSHAFT	1	SN: 100101-UP
?	02720-20204	PLUG	6	SN: 100101-UP
?	6623-31-1120	GEAR,CRANKSHAFT	1	SN: 100101-UP
?	6610-31-1130	KEY,GEAR	1	SN: 100101-UP
?	6643-31-1421	KEY,CRANKSHAFT	1	SN: 100101-UP
?	6643-31-1430	BOLT	1	SN: 111410-UP
?	6676-33-1430	BOLT	1	SN: 100101-111409
?	6676-33-1440	RETAINER	1	SN: 100101-UP
?		STANDARD	-1
?	6610-21-8010	METAL ASS'Y	1	SN: 100101-UP
?	6610-21-8070	MAIN METAL ASS'Y	1	SN: 100101-UP
?	6610-21-8020	MAIN METAL ASS'Y,NO.1,3,5	3	SN: 100101-UP
?		METAL,UPPER	1	SN: 100101-UP
?		METAL,LOWER	1	SN: 100101-UP
?	6610-21-8030	MAIN METAL ASS'Y,NO.2,4,6	3	SN: 100101-UP
?		METAL,UPPER	1	SN: 100101-UP
?		METAL,LOWER	1	SN: 100101-UP
?	6610-21-8040	MAIN METAL ASS'Y,NO.7	1	SN: 100101-UP
?		METAL,UPPER	1	SN: 100101-UP
?		METAL,LOWER	1	SN: 100101-UP
?	6610-21-8051	THRUST METAL ASS'Y	1	SN: 100101-UP
?		METAL	4	SN: 100101-UP
?		UNDERSIZE 0.25MM	-1
?	6610-29-8070	MAIN METAL ASS'Y	1	SN: 100101-UP
?	6610-29-8020	MAIN METAL ASS'Y,NO.1,3,5	3	SN: 100101-UP
?		METAL,UPPER	1	SN: 100101-UP
?		METAL,LOWER	1	SN: 100101-UP
?	6610-29-8030	MAIN METAL ASS'Y,NO.2,4,6	3	SN: 100101-UP
?		METAL,UPPER	1	SN: 100101-UP
?		METAL,LOWER	1	SN: 100101-UP
?	6610-29-8040	MAIN METAL ASS'Y,NO.7	1	SN: 100101-UP
?		METAL,UPPER	1	SN: 100101-UP
?		METAL,LOWER	1	SN: 100101-UP
?		UNDERSIZE 0.50MM	-1
?	6610-28-8070	MAIN METAL ASS'Y	1	SN: 100101-UP
?	6610-28-8020	MAIN METAL ASS'Y,NO.1,3,5	3	SN: 100101-UP
?		METAL,UPPER	1	SN: 100101-UP
?		METAL,LOWER	1	SN: 100101-UP
?	6610-28-8030	MAIN METAL ASS'Y,NO.2,4,6	3	SN: 100101-UP
?		METAL,UPPER	1	SN: 100101-UP
?		METAL,LOWER	1	SN: 100101-UP
?	6610-28-8040	MAIN METAL ASS'Y,NO.7	1	SN: 100101-UP
?		METAL,UPPER	1	SN: 100101-UP
?		METAL,LOWER	1	SN: 100101-UP
?		UNDERSIZE 0.75MM	-1
?	6610-27-8070	MAIN METAL ASS'Y	1	SN: 100101-UP
?	6610-27-8020	MAIN METAL ASS'Y,NO.1,3,5	3	SN: 100101-UP
?		METAL,UPPER	1	SN: 100101-UP
?		METAL,LOWER	1	SN: 100101-UP
?	6610-27-8030	MAIN METAL ASS'Y,NO.2,4,6	3	SN: 100101-UP
?		METAL,UPPER	1	SN: 100101-UP
?		METAL,LOWER	1	SN: 100101-UP
?	6610-27-8040	MAIN METAL ASS'Y,NO.7	1	SN: 100101-UP
?		METAL,UPPER	1	SN: 100101-UP
?		METAL,LOWER	1	SN: 100101-UP
?		UNDERSIZE 1.00MM	-1
?	6610-26-8070	MAIN METAL ASS'Y	1	SN: 100101-UP
?	6610-26-8020	MAIN METAL ASS'Y,NO.1,3,5	3	SN: 100101-UP
?		METAL,UPPER	1	SN: 100101-UP
?		METAL,LOWER	1	SN: 100101-UP
?	6610-26-8030	MAIN METAL ASS'Y,NO.2,4,6	3	SN: 100101-UP
?		METAL,UPPER	1	SN: 100101-UP
?		METAL,LOWER	1	SN: 100101-UP
?	6610-26-8040	MAIN METAL ASS'Y,NO.7	1	SN: 100101-UP
?		METAL,UPPER	1	SN: 100101-UP
?		METAL,LOWER	1	SN: 100101-UP
?		OVERSIZE 0.25MM	-1
?	6610-29-8051	THRUST METAL ASS'Y	1	SN: 100101-UP
?		METAL	2	SN: 100101-UP
?		METAL	2	SN: 100101-UP
?		OVERSIZE 0.50MM	-1
?	6610-28-8051	THRUST METAL ASS'Y	1	SN: 100101-UP
?		METAL	4	SN: 100101-UP
?		OVERSIZE 0.75MM	-1
?	6610-27-8051	THRUST METAL ASS'Y	1	SN: 100101-UP
?		METAL	2	SN: 100101-UP
?		METAL	2	SN: 100101-UP
?		OVERSIZE 1.00MM	-1
?	6610-26-8051	THRUST METAL ASS'Y	1	SN: 100101-UP
?		METAL	4	SN: 100101-UP
?	6610-21-1281	PIN,SPRING	2	SN: 100101-UP
?	6610-21-3520	SEAL,OIL (K2)	1	SN: 100101-UP
?	6693-32-1421	PULLEY,CRANKSHAFT	1	SN: 114020-UP
?	6672-32-1411	PULLEY,CRANKSHAFT	1	SN: 100101-114019
?	6693-32-1452	SPACER	1	SN: 120983-UP
?	6693-32-1451	SPACER	1	SN: 100101-120982
?	6684-31-8100	DAMPER ASS'Y,VIBRATION	1	SN: 100101-UP
?	01050-31240	BOLT	6	SN: 100101-UP
?	6610-31-1362	PLATE,LOCK (K2)	3	SN: 100101-UP
