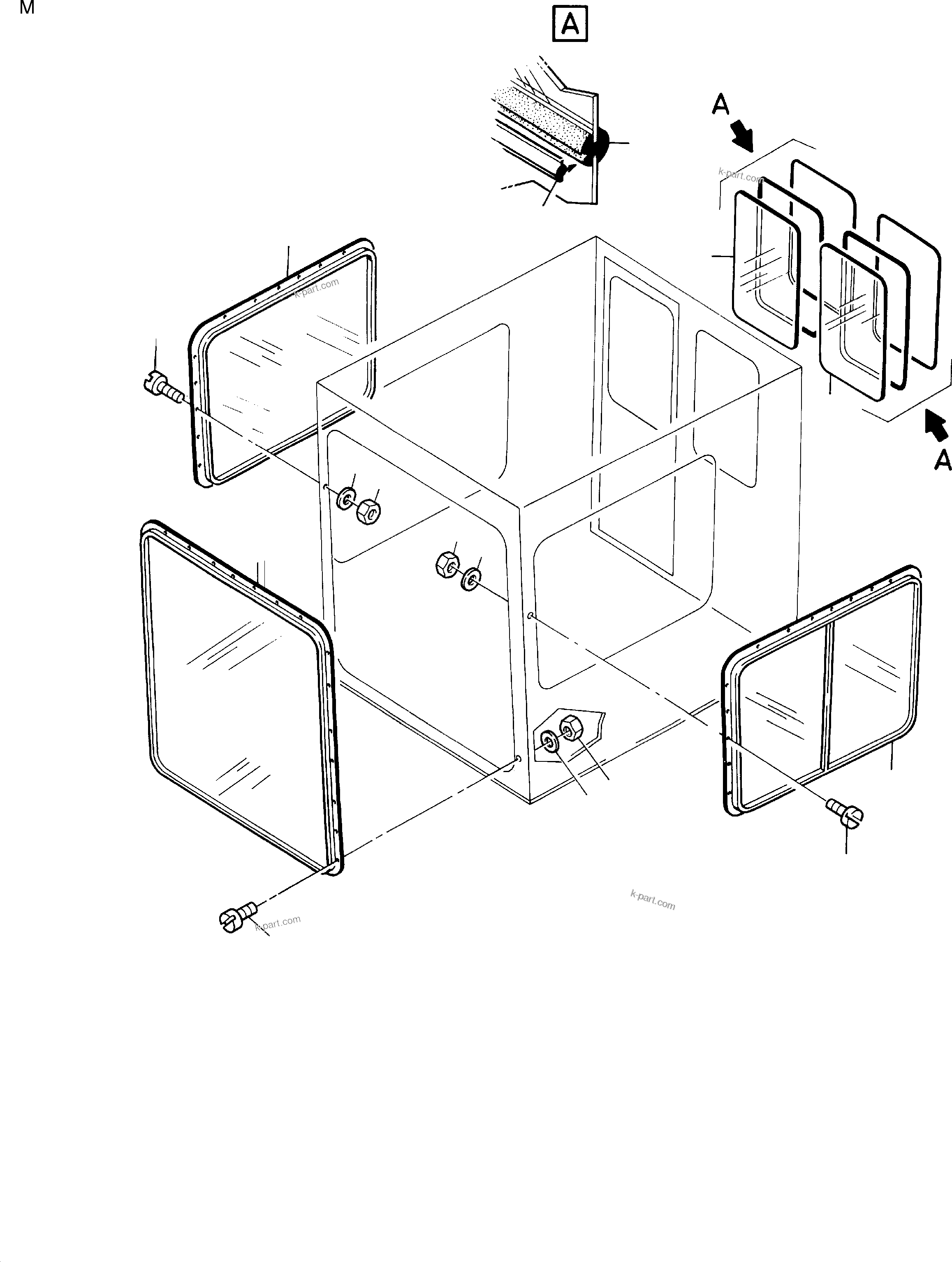

Komatsu parts book diagram for H285S S/N 78129: OPERATOR'S CAB - GLAZING

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	594 742 40	Front window 1422x1672x12	1	InternBDB: Cleff TL \| InternKon: 636 333 40 / 21
	?	635 857 40	Sealing compound to fig no. 01 (310ml)	1
	?	491 009 40	Side window 1470x1073x8	1	InternBDB: Cleff TL \| InternKon: 636 333 40 / 23
	?		Sliding window	1	InternBDB: 490 094 40 \| InternKon: 636 333 40 / 22	090-3215
	?	491 011 40	Rear pane 773x398x5	1	InternBDB: Cleff TL \| InternKon: 636 333 40 / 25
	?	302 020 40	Rear pane 803x458x5	1	InternBDB: Cleff TL \| InternKon: 636 333 40 / 24
	?	082 280 40	Filler section Bulk ware, state length required	-2	InternBDB: GHE 404 0002 \| InternKon: 636 333 40 / 34
	?	082 279 40	Clamping section Bulk ware, state length required	-2	InternBDB: GHE 401 0012 \| InternKon: 636 333 40 / 33
	?	318 107 99	Screw	70	InternBDB: M5x16 /84 \| InternKon: 636 333 40 / 35
	?	507 036 98	Nut	70	InternBDB: M 5 /985 \| InternKon: 636 333 40 / 37
	?	340 462 99	Washer	70	InternBDB: 5,3 /125
