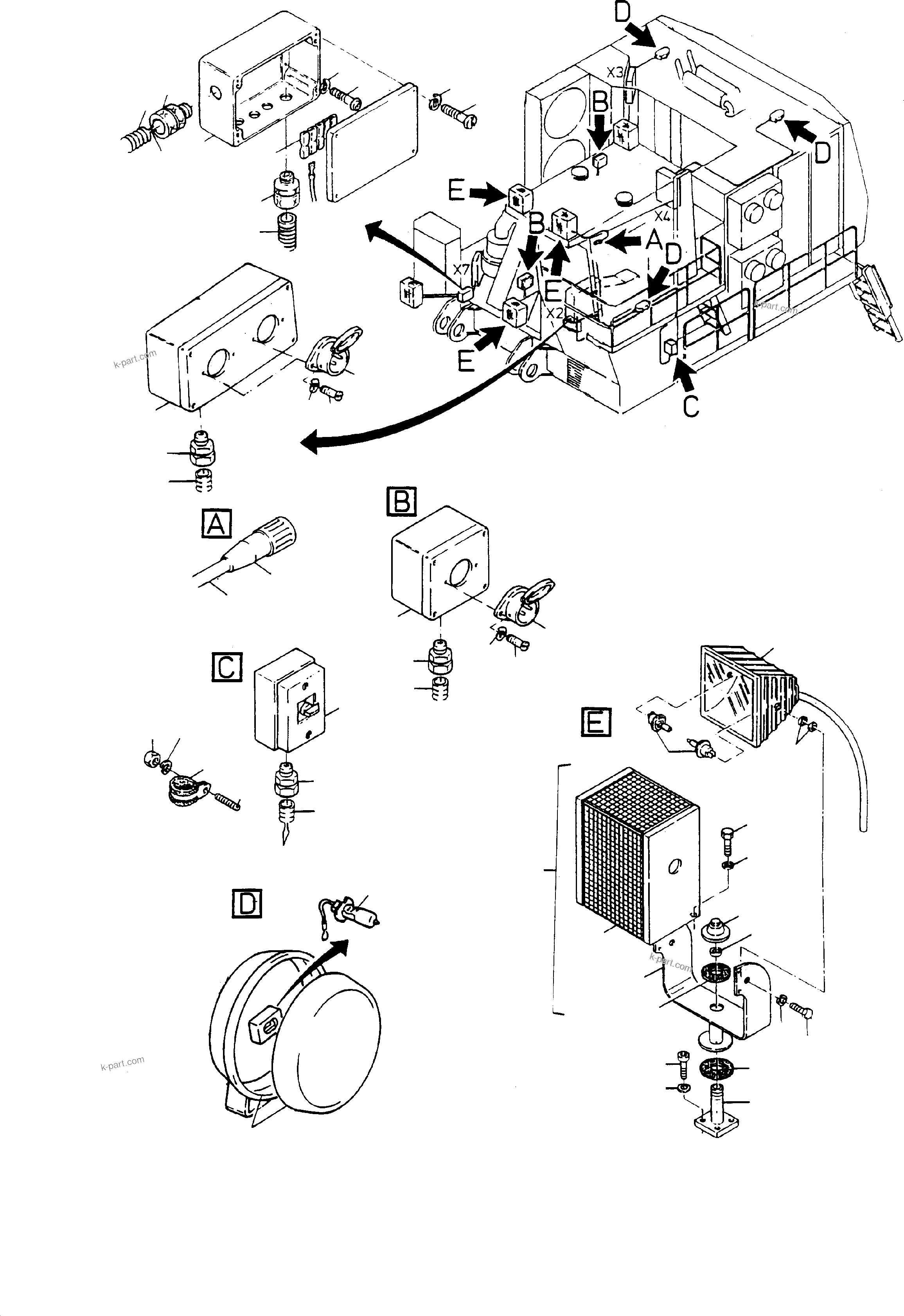

LIGHTING EQUIPMENT | H285S S/N 78129 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

H285S S/N 78129

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	634 009 40	Spotlight inc. fig-no: 02	6	InternBDB: ABL \| InternKon: 630 128 40 / 17
?	507 383 98	Halogen lamp to fig-no: 01	6	InternBDB: ABL 11-50320 /H1, 24V, 70W
?	323 946 40	Thread pin	25	InternBDB: M6x20 /32501 \| InternKon: 630 128 40 / 62
?	323 945 40	Thread pin	25	InternBDB: M6x15 /32501 \| InternKon: 630 128 40 / 61
?	332 110 99	Nut	50	InternBDB: M6 /934 \| InternKon: 630 128 40 / 101
?	346 499 99	Lock washer	50	InternBDB: 6 /128 \| InternKon: 630 128 40 / 100
?	057 278 40	Socket 2-polig	5	InternBDB: Bosch 0352 221 001
?	320 977 99	Screw	6	InternBDB: AM 4x25 /84
?	471 861 99	Cable Bulk ware, state length required	-2	InternBDB: blau 12
?	006 302 98	Clamp	50	InternBDB: RSGU 1100/ 15/15
?	440 373 40	Camswitch	2	InternBDB: Klцckner-Mцller T02/1I 20A 3-polig \| InternKon: 630 128 40 / 23
?	323 950 40	Cable union	20	InternBDB: PG 9 5010.100.009 \| InternKon: 630 128 40 / 69
?	356 238 40	Cable protection hose Bulk ware, state length required	-2	InternBDB: PG 9 220.101.010 \| InternKon: 630 128 40 / 113
?	255 034 40	Housing, empty	3	InternBDB: Bopla A 105
?	471 915 99	Cable Bulk ware, state length required	-2	InternBDB: 4x1,5/97718
?	400 830 40	Headlamp housing, assy. consist. of fig nos. 31 - 44	6
?	403 524 40	Protection casing	1	InternKon: 400 830 40 / 2
?	329 002 40	Head light mount	1	InternKon: 400 830 40 / 3
?	329 003 40	Support	1	InternKon: 400 830 40 / 4
?	329 004 40	Lock washer	1	InternKon: 400 830 40 / 5
?	329 005 40	Lock washer	1	InternKon: 400 830 40 / 6
?	342 096 40	Disk	1	InternKon: 400 830 40 / 7
?	340 409 99	Washer	1	InternBDB: 15 /433 \| InternKon: 400 830 40 / 9
?	340 467 99	Washer	4	InternBDB: 13 /125 \| InternKon: 400 830 40 / 10
?	307 802 99	Bolt	2	InternBDB: M12x25 /933 \| InternKon: 400 830 40 / 11
?	343 112 99	Lock washer	2	InternBDB: 12 /128 \| InternKon: 400 830 40 / 12
?	320 343 99	Screw	4	InternBDB: M10x15 /6912 \| InternKon: 400 830 40 / 15
?	346 500 99	Lock washer	4	InternBDB: 10 /128 \| InternKon: 400 830 40 / 16
?	307 339 99	Bolt	2	InternBDB: M12x15 /933 \| InternKon: 400 830 40 / 13
?	343 006 99	Washer	2	InternBDB: 13 /93 \| InternKon: 400 830 40 / 14
?	256 297 40	Headlamp	6	InternBDB: Schmidt 2x100 W PSH 500 24V
?	269 021 40	Halogen lamp 100 W /24 V	12	InternBDB: QJ 100W /24V Osram - 64460
?	057 245 40	Plug	6	InternBDB: Bosch 0.352.130.001
?	255 309 40	Housing, empty	2	InternBDB: Bopla A 110 \| InternKon: 630 128 40 / 40
?	356 240 40	Cable protection hose Bulk ware, state length required	1	InternBDB: 220.101.015 \| InternKon: 630 128 40 / 66
?	323 952 40	Cable union	1	InternBDB: PG 13,5 5010.100.013 \| InternKon: 630 128 40 / 71
?	471 861 99	Cable Bulk ware, state length required	-2	InternBDB: 1
?	471 729 99	Cable Bulk ware, state length required	-2	InternBDB: 2,5
?	320 975 99	Screw	4	InternBDB: AM4x16/84
?	320 816 99	Screw	4	InternBDB: AM5x10/84
?	346 508 99	Lock washer	14	InternBDB: 4/128
?	343 852 99	Lock washer	4	InternBDB: 5/7980
?	057 296 40	Wiring connection	1
