PC400LC-7-M1 S/N 50001-UP

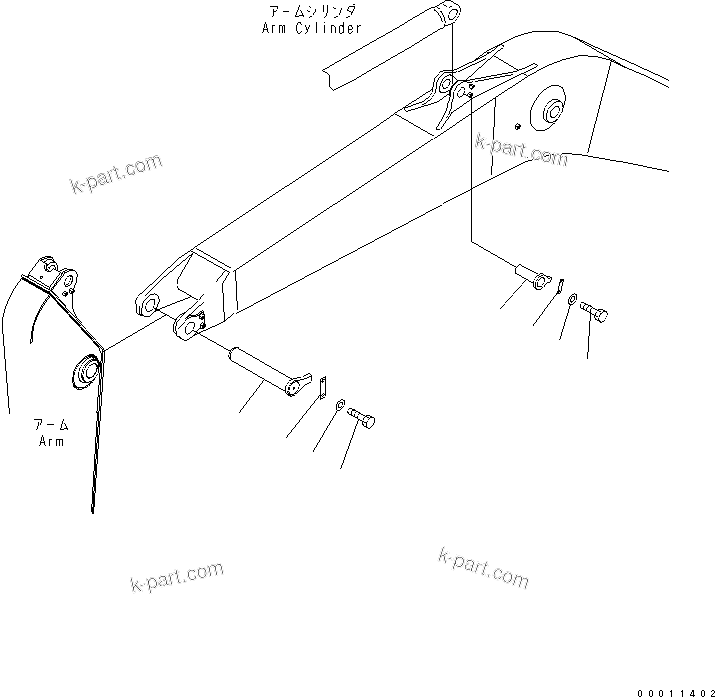

Komatsu parts book diagram for PC400LC-7-M1 S/N 50001-UP: BOOM (TOP PIN AND BOTTOM PIN)

? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	208-70-71580	PIN	1	SN: 50001-UP
	?	208-70-71670	PLATE	1	SN: 50001-UP
	?	01010-82045	BOLT	2	SN: 50001-UP
	?	01643-32060	WASHER	2	SN: 50001-UP
	?	208-70-61191	PIN	1	SN: 50001-UP
	?	205-70-66580	PLATE	1	SN: 50001-UP
	?	01010-81235	BOLT	2	SN: 50001-UP
	?	01643-31232	WASHER	2	SN: 50001-UP

Komatsu PC400LC-7-M1 S/N 50001-UP parts catalog PDF

BOOM (TOP PIN AND BOTTOM PIN) (T1110-02A0) in PC400LC-7-M1 S/N 50001-UP. Diagram image and parts list.
