PC400LC-6Z S/N 30001-UP (Pipe Looper Spec.)

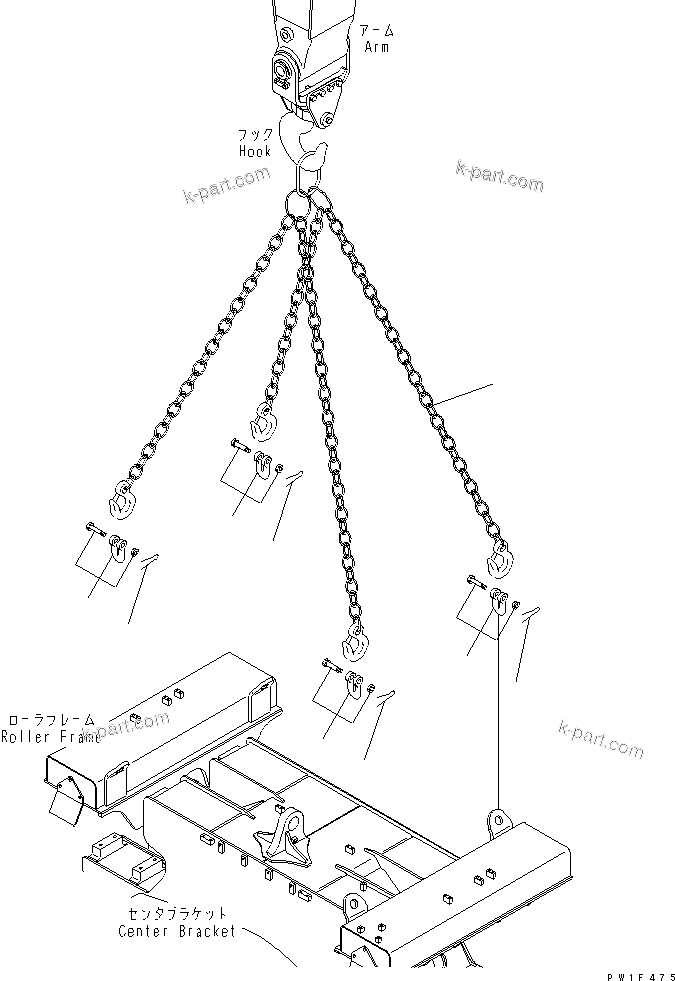

Komatsu parts book diagram for PC400LC-6Z S/N 30001-UP (Pipe Looper Spec.): PIPE LOOPER PIPING (LIFTING PARTS)(#32670-)

? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	208-871-2681	SHACKLE	4	SN: 32921-UP
	?	208-871-2680	SHACKLE	4	SN: 32670-32920
	?	04050-16055	PIN	4	SN: 32921-UP
	?	04050-14030	PIN	4	SN: 32670-32920
	?	208-871-2590	CHAIN ASS'Y	1	SN: 32670-UP

Komatsu PC400LC-6Z S/N 30001-UP (Pipe Looper Spec.) parts catalog PDF

PIPE LOOPER PIPING (LIFTING PARTS)(#32670-) (W8002-20A0) in PC400LC-6Z S/N 30001-UP (Pipe Looper Spec.). Diagram image and parts list.
