S4D95LE-3A-2 S/N 100001-UP

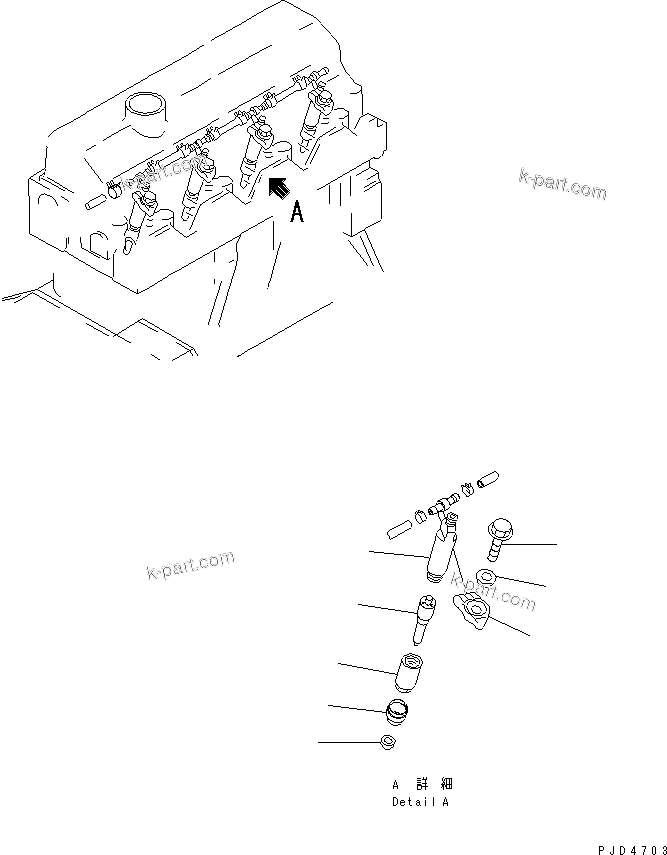

Komatsu parts book diagram for S4D95LE-3A-2 S/N 100001-UP: INJECTION NOZZLE(#100001-108487)

? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	6205-11-3200	NOZZLE HOLDER ASS'Y	4	SN: 100001-@
	?	6204-11-3110	HOLDER ASS'Y,(SEE FIG.A4210-B0A3)	1	SN: 100001-@
	?	6205-11-3220	NOZZLE	1	SN: 100001-@
	?	6204-11-3810	HOLDER	4	SN: 100001-108487
	?	6204-11-3830	WASHER	4	SN: 100001-@
	?	01435-01035	BOLT	4	SN: 100001-@
	?	6204-11-3880	GASKET (K1)	4	SN: 100001-@
	?	6204-11-3850	SEAL,DUST (K1)	4	SN: 100001-@

Komatsu S4D95LE-3A-2 S/N 100001-UP parts catalog PDF

INJECTION NOZZLE(#100001-108487) (A4210-A0A3) in S4D95LE-3A-2 S/N 100001-UP. Diagram image and parts list.
