S4D95L-1K-C S/N 135080-UP

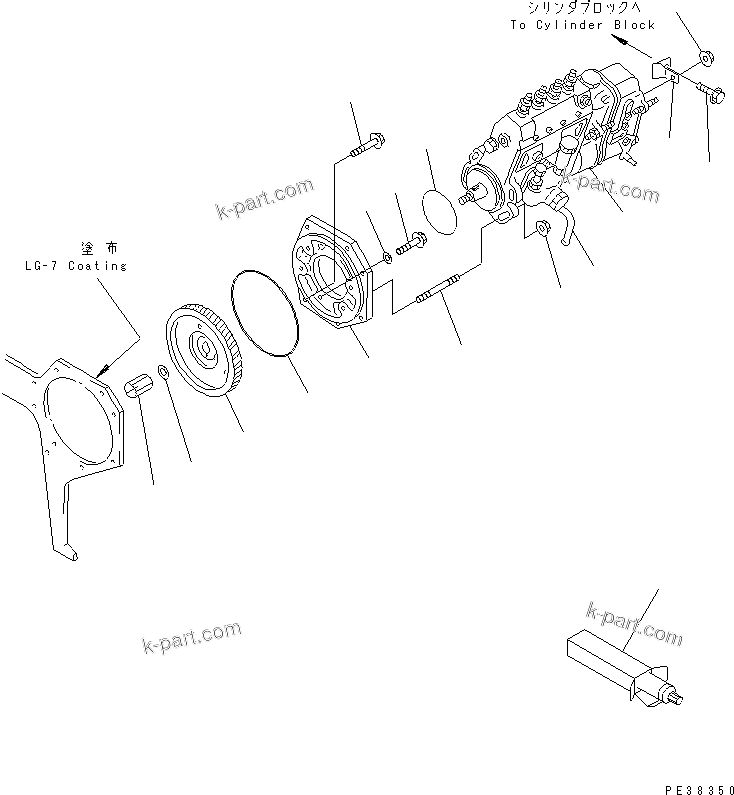

Komatsu parts book diagram for S4D95L-1K-C S/N 135080-UP: FUEL INJECTION PUMP MOUNTING

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	6205-71-1520	INJECTION PUMP ASS'Y,(SEE FIG.A4010-B0P7)	1	SN: 143761-UP
	?	6144-73-5750	JOINT	1	SN: 143761-UP
	?	07000-62065	O-RING (K2)	1	SN: 143761-UP \| KIT-FLAG: S
	?	6206-71-1852	BRACKET	1	SN: 143761-UP
	?	01435-21016	BOLT	1	SN: 143761-UP
	?	01584-00806	NUT	1	SN: 143761-UP
	?	6204-71-3130	GEAR	1	SN: 143761-UP
	?	6204-71-3630	NUT	1	SN: 143761-UP
	?	6114-31-3330	WASHER (K2)	1	SN: 143761-UP
	?	6204-71-3110	HOLDER	1	SN: 143761-UP
	?	01144-51035	STUD	4	SN: 143761-UP
	?	01584-01008	NUT	4	SN: 143761-UP
	?	07000-62135	O-RING (K2)	1	SN: 143761-UP \| KIT-FLAG: S
	?	6204-71-3190	BOLT	1	SN: 143761-UP
	?	01435-20812	BOLT	1	SN: 143761-UP
	?	07005-00812	SEAL, WASHER (K2)	1	SN: 143761-UP \| KIT-FLAG: S
	?	09920-00150	LIQUID GASKET,LG-7, 150G	-2	SN: 143761-UP \| KIT-FLAG: S

Komatsu S4D95L-1K-C S/N 135080-UP parts catalog PDF

FUEL INJECTION PUMP MOUNTING (A4010-A0P7) in S4D95L-1K-C S/N 135080-UP. Diagram image and parts list.
