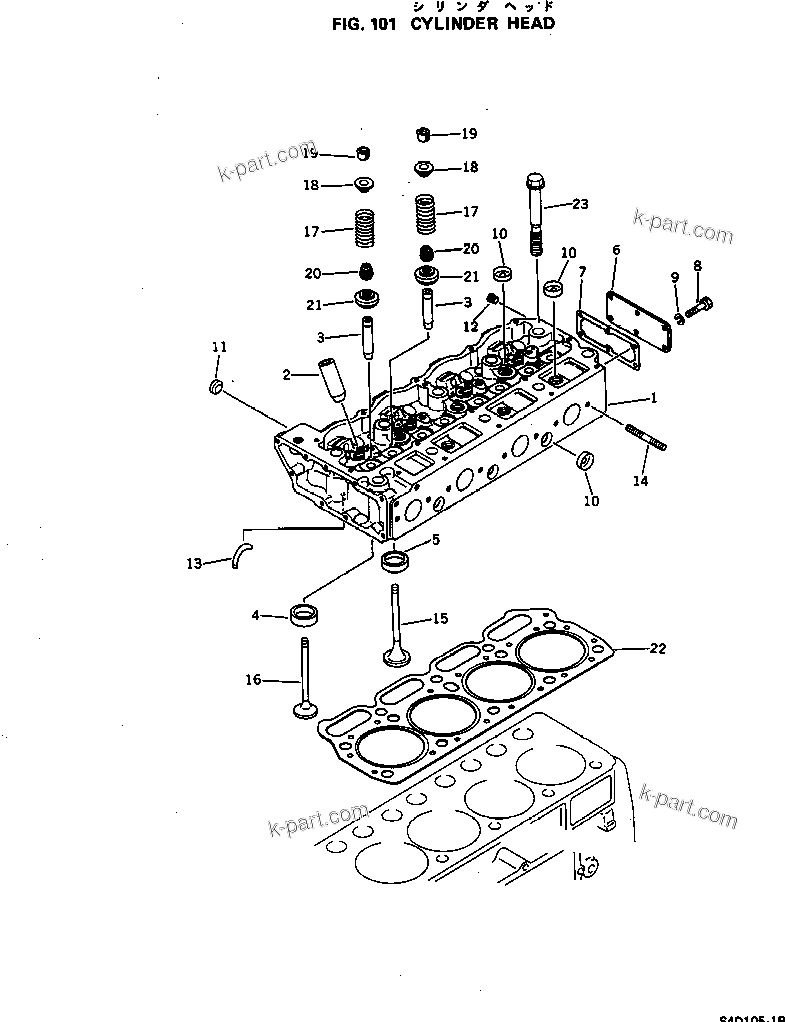

CYLINDER HEAD | S4D105-1B S/N 18273-UP | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6131-11-1001	CYLINDER HEAD ASS'Y,WITH VALVE	1	SN: 18273-UP
?	6131-11-1000	CYLINDER HEAD ASS'Y,WITH VALVE	1	SN: 18273-39999
?	6131-11-1201	CYLINDER HEAD ASS'Y,VALVE LESS	1	SN: 18273-UP
?	6131-11-1200	CYLINDER HEAD ASS'Y,VALVE LESS	1	SN: 18273-39999
?		HEAD,CYLINDER	1	SN: 18273-UP
?	6130-11-1131	SLEEVE	4	SN: 18273-UP
?	6130-11-1310	GUIDE,VALVE	8	SN: 18273-UP
?	6130-11-1323	SEAT,EXHAUST VALVE (STD)	4	SN: 18273-UP
?	6130-19-1323	SEAT ? 0.25MM,EXHAUST VALVE (OS)	4	SN: 18273-UP
?	6130-18-1323	SEAT ? 0.50MM,EXHAUST VALVE (OS)	4	SN: 18273-UP
?	6130-17-1323	SEAT ? 0.75MM,EXHAUST VALVE (OS)	4	SN: 18273-UP
?	6130-16-1323	SEAT ? 1.00MM,EXHAUST VALVE (OS)	4	SN: 18273-UP
?	6131-12-1310	SEAT,INTAKE VALVE (STD)	4	SN: 18273-UP
?	6131-11-1312	SEAT,INTAKE VALVE (STD)	4	SN: (21997-39999)
?	6131-11-1311	SEAT,INTAKE VALVE (STD)	4	SN: (18273-21996)
?	6131-19-1310	SEAT ? 0.25MM,INTAKE VALVE (OS)	4	SN: 18273-UP
?	6131-19-1312	SEAT ? 0.25MM,INTAKE VALVE (OS)	4	SN: (21997-39999)
?	6131-19-1311	SEAT ? 0.25MM,INTAKE VALVE (OS)	4	SN: (18273-21996)
?	6131-18-1310	SEAT ? 0.50MM,INTAKE VALVE (OS)	4	SN: 18273-UP
?	6131-18-1312	SEAT ? 0.50MM,INTAKE VALVE (OS)	4	SN: (21997-39999)
?	6131-18-1311	SEAT ? 0.50MM,INTAKE VALVE (OS)	4	SN: (18273-21996)
?	6131-17-1310	SEAT ? 0.75MM,INTAKE VALVE (OS)	4	SN: 18273-UP
?	6131-17-1312	SEAT ? 0.75MM,INTAKE VALVE (OS)	4	SN: (21997-39999)
?	6131-17-1311	SEAT ? 0.75MM,INTAKE VALVE (OS)	4	SN: (18273-21996)
?	6131-16-1310	SEAT ? 1.00MM,INTAKE VALVE (OS)	4	SN: 18273-UP
?	6131-16-1312	SEAT ? 1.00MM,INTAKE VALVE (OS)	4	SN: (21997-39999)
?	6131-16-1311	SEAT ? 1.00MM,INTAKE VALVE (OS)	4	SN: (18273-21996)
?	6130-11-1931	PLATE	1	SN: 21532-UP
?	6130-11-1930	PLATE	1	SN: 18273-21531
?	6130-11-1940	GASKET (K1)	1	SN: 18273-UP
?	01010-30816	BOLT	6	SN: 18273-UP
?	01602-00825	WASHER,SPRING	6	SN: 18273-UP
?	6130-11-1410	PLUG	9	SN: 18273-UP
?	6130-11-1420	PLUG	4	SN: 18273-UP
?	6100-21-1130	PLUG	2	SN: 18273-UP
?	6130-11-1451	NOZZLE	8	SN: 18273-UP
?	01140-61035	STUD	8	SN: 18273-UP
?	6131-42-4120	VALVE,INTAKE	4	SN: 18273-UP
?	6131-42-4110	VALVE,INTAKE	4	SN: 18273-UP
?	6130-41-4121	VALVE,INTAKE	4	SN: (.-39999)
?	6130-41-4120	VALVE,INTAKE	4	SN: (18273-.)
?	6130-41-4210	VALVE,EXHAUST	4	SN: 18273-UP
?	6130-41-4410	SPRING,VALVE	8	SN: 18273-UP
?	6130-41-4511	GUIDE,SPRING	8	SN: .-UP
?	6130-41-4510	GUIDE,SPRING	8	SN: 18273-.
?	6130-41-4520	COTTER	16	SN: 18273-UP
?	6130-41-4541	SEAL,VALVE STEM (K1)	8	SN: 18273-UP
?	6130-41-4610	COIL	8	SN: 18273-UP
?	6131-11-1810	GASKET (K1)	1	SN: 18273-UP
?	6130-11-1611	BOLT	10	SN: 18273-UP
