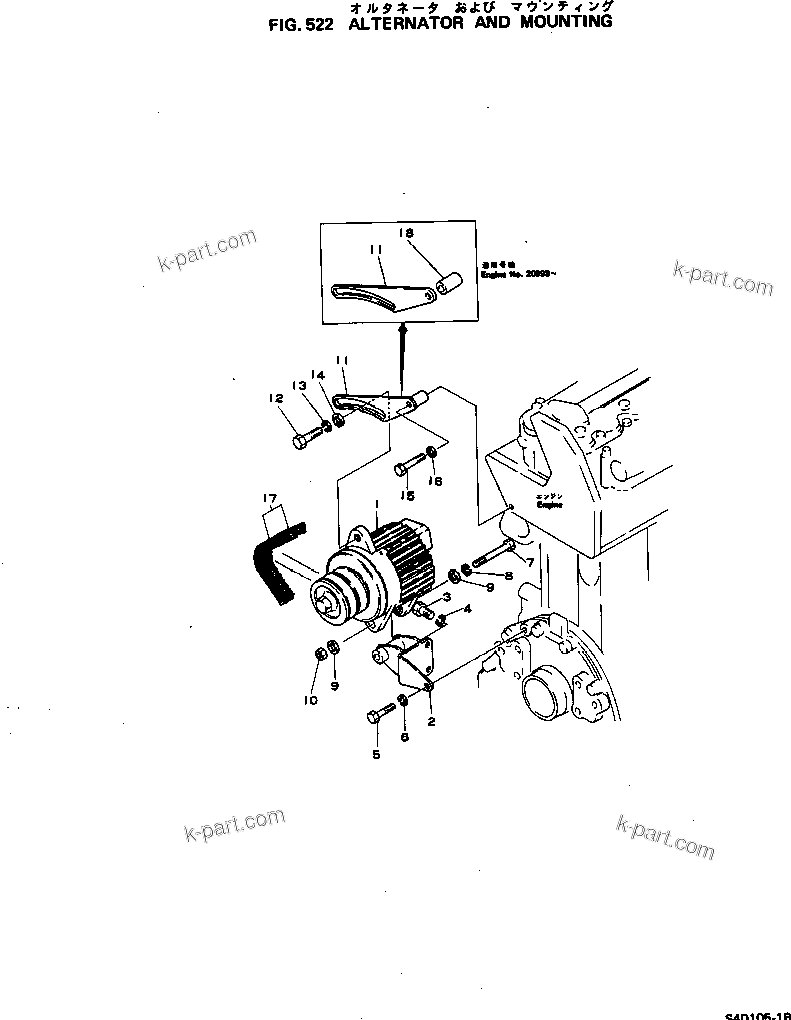

ALTERNATOR AND MOUNTING | S4D105-1B S/N 18273-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	600-821-3350	ALTERNATOR A. (13A),(SEE FIG.542)	1	SN: 18273-UP
?	600-821-8370	ALTERNATOR A.,(800W) (SEE FIG.543)	1	SN: 18273-UP
?	6131-21-6610	BRACKET	1	SN: 18273-UP
?	6131-21-6670	BRACKET,(FOR 800W ALTERNATOR)	1	SN: 18273-UP
?	01010-31225	BOLT	2	SN: 18273-UP
?	01602-01236	WASHER,SPRING	2	SN: 18273-UP
?	01010-31025	BOLT	1	SN: 18273-UP
?	01602-01030	WASHER,SPRING	1	SN: 18273-UP
?	01011-31430	BOLT	1	SN: 18273-UP
?	01011-31455	BOLT,(FOR 800W ALTERNATOR)	1	SN: 18273-UP
?	01602-01442	WASHER,SPRING	1	SN: 18273-UP
?	01641-01423	WASHER	2	SN: 18273-UP
?	01580-01411	NUT	1	SN: 18273-UP
?	6131-21-6760	PLATE,ADJUST	1	SN: 20993-UP
?	6131-21-6740	PLATE,ADJUST	1	SN: 18273-20992
?		(6131-21-6760{6131-31-6770)}	-1
?	6131-21-6680	PLATE,ADJUST (FOR 800W ALTERNATOR)	1	SN: 18273-UP
?	01050-31235	BOLT	1	SN: 18273-UP
?	01602-01236	WASHER,SPRING	1	SN: 18273-UP
?	01643-01232	WASHER	1	SN: 18273-UP
?	01010-31055	BOLT	1	SN: 18273-UP
?	01010-31040	BOLT,(FOR 800W ALTERNATOR)	1	SN: 18273-UP
?	01602-01030	WASHER,SPRING	1	SN: 18273-UP
?	04121-02239	V-BELT	1	SN: 18273-UP
?	04121-22258	V-BELT SET,(FOR 800W ALTERNATOR)	1	SN: 18273-UP
?	6131-21-6770	COLLAR	1	SN: 20993-UP
?	6131-21-6760	PLATE,(FOR 800W ALTERNATOR)	1	SN: 18273-UP
