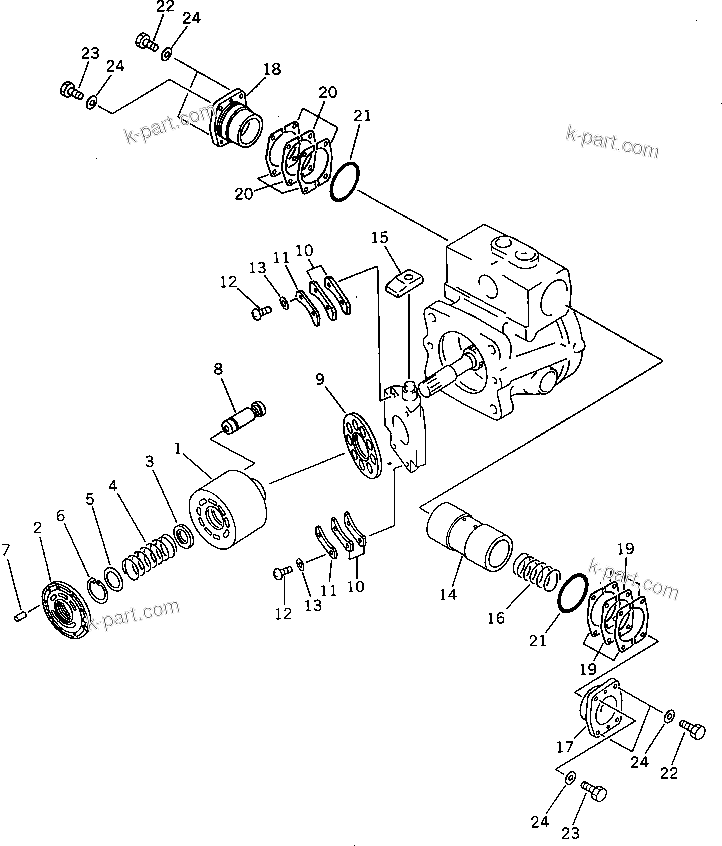

HYDRAULIC PUMP ? REAR (6/6) | PW150-1 S/N 1001-UP

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	708-23-01021	PUMP ASS'Y,(HPV55+55)	1	SN: 1001-UP
?		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6001 TO 6021.	-1
?	708-23-01020	PUMP ASS'Y,(HPV55+55)	1	SN: (1186-1291)
?		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6001 TO 6021.	-1
?	708-23-10201	PUMP ASS'Y,(HPV55+55)	1	SN: (1118-1185)
?		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6001 TO 6021.	-1
?	708-23-10200	PUMP ASS'Y,(HPV55+55)	1	SN: (1001-1117)
?		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6001 TO 6021.	-1
?	708-23-11202	PUMP SUB ASS'Y	1	SN: 1001-UP
?		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6002 TO 6006.	-1
?	708-23-11201	PUMP SUB ASS'Y	1	SN: (1118-1291)
?		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6002 TO 6006.	-1
?	708-23-11200	PUMP SUB ASS'Y	1	SN: (1001-1117)
?		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6002 TO 6006.	-1
?	708-23-00621	CYLINDER BLOCK ASS'Y,REAR	1	SN: ..-UP
?	708-23-00620	CYLINDER BLOCK ASS'Y,REAR	1	SN: .-..
?	708-23-00020	BLOCK ASS'Y,REAR	1	SN: 1001-.
?	708-23-13151	CYLINDER BLOCK	1	SN: 1292-UP
?	708-23-13150	CYLINDER BLOCK	1	SN: 1001-1291
?		(708-23-00621{78-23-13312(9) ?}	-1
?		708-23-05042{708-23-13342)}	-1
?	708-23-13621	PLATE,VALVE	1	SN: ..-UP
?	708-23-13620	PLATE,VALVE	1	SN: .-..
?	708-23-13220	PLATE,VALVE	1	SN: 1001-.
?	708-23-13130	WASHER	1	SN: 1001-UP
?	708-23-13140	SPRING	1	SN: 1001-UP
?	708-23-13120	WASHER	1	SN: 1001-UP
?	04065-03815	RING,SNAP	1	SN: 1001-UP
?	720-68-19610	PIN	1	SN: 1001-UP
?	708-23-13312	PISTON ASS'Y	9	SN: .-UP
?	708-23-13311	PISTON ASS'Y	9	SN: 1292-.
?	\4\708-23-13310	PISTON ASS'Y	9	SN: 1001-1291
?		(708-23-13312(9){708-23-05042 ?}	-1
?		708-23-00621{708-23-13342)}	-1
?	708-23-13342	RETAINER,SHOE	1	SN: .-UP
?	\4\708-23-13341	RETAINER,SHOE	1	SN: 1001-.
?		(708-23-13342{708-23-00621 ?}	-1
?		708-23-13312(9){708-23-05042)}	-1
?	708-23-05042	SPACER KIT	1	SN: 1292-UP
?	708-23-05040	SPACER KIT	2	SN: 1001-1291
?		SPACER	2	SN: 1292-UP
?		SPACER	1	SN: 1001-1291
?		SPACER	2	SN: 1292-UP
?		SPACER	1	SN: 1001-1291
?		SPACER	2	SN: 1292-UP
?		SPACER	1	SN: 1001-1291
?	708-23-13431	RETAINER,BEARING	2	SN: 1001-UP
?	708-23-13460	SCREW	4	SN: 1001-UP
?	01643-30623	WASHER	4	SN: 1001-UP
?	708-23-14111	PISTON	1	SN: .-UP
?	708-23-14110	PISTON	1	SN: 1001-.
?	708-23-14120	SLIDER	1	SN: 1001-UP
?	708-23-14130	SPRING	1	SN: 1001-UP
?	708-23-14140	CAP	1	SN: 1001-UP
?	708-23-14150	CAP	1	SN: 1001-UP
?	708-23-05050	SHIM KIT	1	SN: 1001-UP
?		SHIM	4	SN: 1001-UP
?		SHIM	4	SN: 1001-UP
?		SHIM	10	SN: 1001-UP
?	708-23-14210	SHIM	2	SN: 1001-UP
?	708-23-05060	SHIM KIT	1	SN: 1001-UP
?		SHIM	4	SN: 1001-UP
?		SHIM	4	SN: 1001-UP
?		SHIM	6	SN: 1001-UP
?	708-23-14210	SHIM	2	SN: 1001-UP
?	07000-02055	O-RING	2	SN: 1001-UP
?	01016-50840	BOLT	4	SN: .-UP
?	01010-50830	BOLT	4	SN: 1001-.
?	01010-30823	BOLT	4	SN: .-UP
?	01643-30823	WASHER	8	SN: 1001-UP
