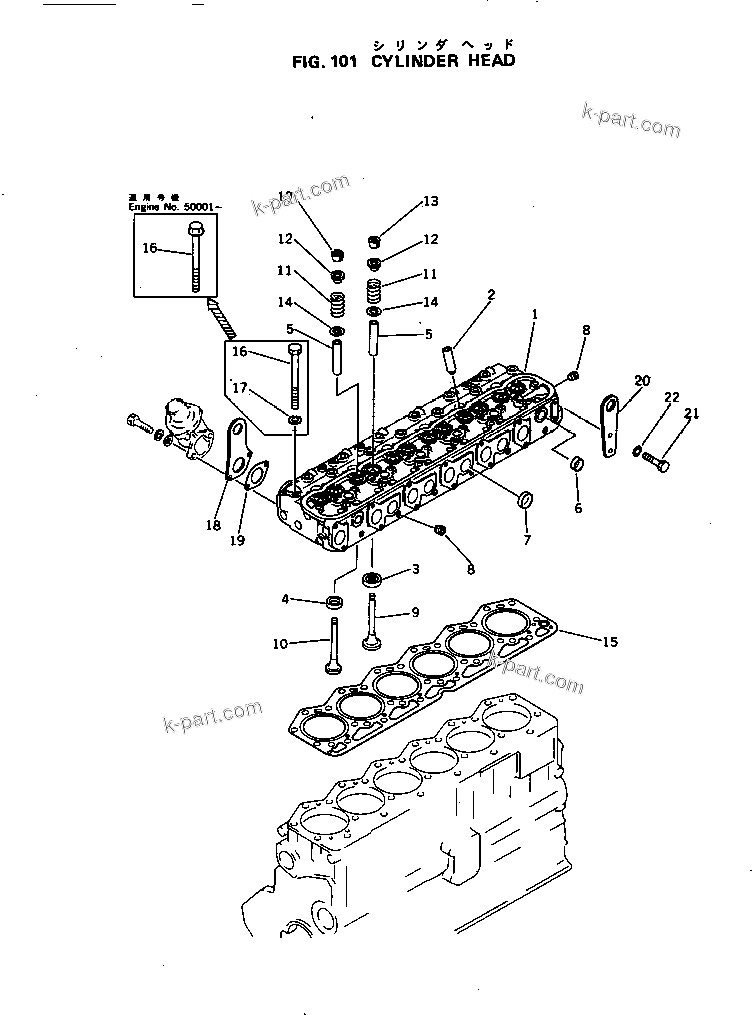

CYLINDER HEAD | S6D105-1C S/N 11370-UP | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6137-12-1011	CYLINDER HEAD ASS'Y,WITH VALVE	1	SN: 50007-UP
?	6137-12-1010	CYLINDER HEAD ASS'Y,WITH VALVE	1	SN: 50001-50006
?	6137-11-1011	CYLINDER HEAD ASS'Y,WITH VALVE	1	SN: 11370-49999
?	6137-11-1010	CYLINDER HEAD ASS'Y,WITH VALVE	1	SN: 11370-49999
?	6137-12-1101	CYLINDER HEAD ASS'Y,VALVE LESS	1	SN: 50007-UP
?	6137-12-1100	CYLINDER HEAD ASS'Y,VALVE LESS	1	SN: 50001-50006
?	6137-11-1201	CYLINDER HEAD ASS'Y,VALVE LESS	1	SN: 11370-49999
?		HEAD,CYLINDER	1	SN: 50007-UP
?		HEAD,CYLINDER	1	SN: 50001-50006
?		HEAD,CYLINDER	1	SN: 11370-49999
?	6136-11-1130	SLEEVE	6	SN: 11370-UP
?	6136-12-1310	SEAT,INTAKE VALVE (STD)	6	SN: 50001-UP
?	6136-11-1311	SEAT,INTAKE VALVE (STD)	6	SN: 11370-49999
?	6136-19-1410	SEAT ? 0.25MM,INTAKE VALVE (OS)	6	SN: 50001-UP
?	6136-19-1311	SEAT ? 0.25MM,INTAKE VALVE (OS)	6	SN: 11370-49999
?	6136-18-1410	SEAT ? 0.50MM,INTAKE VALVE (OS)	6	SN: 50001-UP
?	6136-18-1311	SEAT ? 0.50MM,INTAKE VALVE (OS)	6	SN: 11370-49999
?	6136-17-1410	SEAT ? 0.75MM,INTAKE VALVE (OS)	6	SN: 50001-UP
?	6136-17-1311	SEAT ? 0.75MM,INTAKE VALVE (OS)	6	SN: 11370-49999
?	6136-16-1410	SEAT ? 1.00MM,INTAKE VALVE (OS)	6	SN: 50001-UP
?	6136-16-1311	SEAT ? 1.00MM,INTAKE VALVE (OS)	6	SN: 11370-49999
?	6136-12-1320	SEAT,EXHAUST VALVE (STD)	6	SN: 50001-UP
?	6136-11-1321	SEAT,EXHAUST VALVE (STD)	6	SN: 11370-49999
?	6136-19-1420	SEAT ? 0.25MM,EXHAUST VALVE (OS)	6	SN: 50001-UP
?	6136-19-1321	SEAT ? 0.25MM,EXHAUST VALVE (OS)	6	SN: 11370-49999
?	6136-18-1420	SEAT ? 0.50MM,EXHAUST VALVE (OS)	6	SN: 50001-UP
?	6136-18-1321	SEAT ? 0.50MM,EXHAUST VALVE (OS)	6	SN: 11370-49999
?	6136-17-1420	SEAT ? 0.75MM,EXHAUST VALVE (OS)	6	SN: 50001-UP
?	6136-17-1321	SEAT ? 0.75MM,EXHAUST VALVE (OS)	6	SN: 11370-49999
?	6136-16-1420	SEAT ? 1.00MM,EXHAUST VALVE (OS)	6	SN: 50001-UP
?	6136-16-1321	SEAT ? 1.00MM,EXHAUST VALVE (OS)	6	SN: 11370-49999
?	6136-19-1430	GUIDE,VALVE	12	SN: 50001-UP
?	6136-19-1330	GUIDE,VALVE	12	SN: 11370-49999
?	07046-42816	PLUG	13	SN: 11370-UP
?	07046-44016	PLUG	4	SN: 11370-UP
?	07043-50108	PLUG	7	SN: .-UP
?	07043-00108	PLUG	7	SN: 11370-.
?	6136-42-4110	VALVE,INTAKE	6	SN: 50001-UP
?	6136-41-4110	VALVE,INTAKE	6	SN: 11370-49999
?	6136-42-4210	VALVE,EXHAUST	6	SN: 50001-UP
?	6136-41-4210	VALVE,EXHAUST	6	SN: 11370-49999
?	6136-42-4410	SPRING,VALVE	12	SN: 50001-UP
?	6136-41-4410	SPRING,VALVE	12	SN: 11370-49999
?	6136-42-4510	GUIDE,SPRING	12	SN: 50001-UP
?	6136-41-4510	GUIDE,SPRING	12	SN: 11370-49999
?	6136-42-4520	COTTER,VALVE	24	SN: 50001-UP
?	6136-41-4520	COTTER,VALVE	24	SN: 11370-49999
?	6136-41-4530	SEAT,SPRING	12	SN: 11370-UP
?	6136-11-1812	GASKET (K1)	1	SN: .-UP
?	6136-11-1811	GASKET (K1)	1	SN: 14329-.
?	6136-11-1810	GASKET (K1)	1	SN: 11370-14328
?	6136-12-1610	BOLT	26	SN: 50001-UP
?	6136-11-1610	BOLT	26	SN: 11370-49999
?	6138-11-1620	WASHER	26	SN: 11387-49999
?	6110-11-1620	WASHER	26	SN: 11370-11386
?	6136-11-1910	HANGER,FRONT	1	SN: 11370-UP
?	6136-11-1821	GASKET (K1)	1	SN: 11387-UP
?	6136-11-1820	GASKET (K1)	1	SN: 11370-11386
?	6136-11-1930	HANGER,REAR	1	SN: 11370-UP
?	01010-31025	BOLT	2	SN: 11370-UP
?	01602-01030	WASHER,SPRING	2	SN: 11370-UP
