S4D102E-1N S/N 26200163-UP

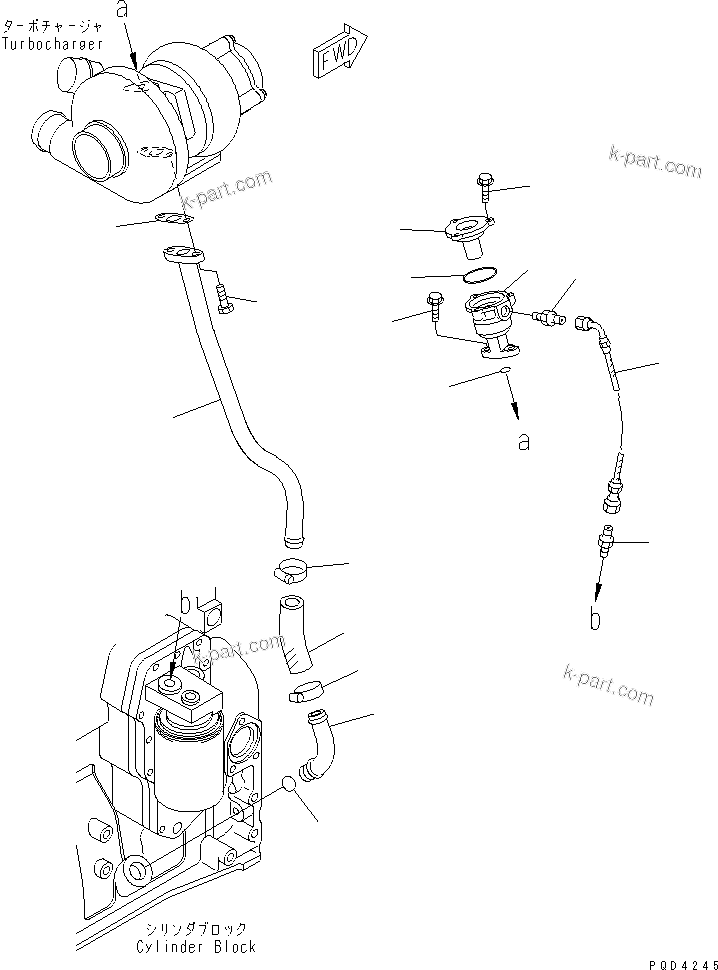

Komatsu parts book diagram for S4D102E-1N S/N 26200163-UP: TURBOCHARGER OIL PIPING(#26239667-)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	6732-51-8360	TUBE,OIL	1	SN: 26239667-UP
	?	6732-71-3220	BOLT	2	SN: 26239667-UP
	?	6735-51-8120	GASKET	1	SN: 26239667-UP
	?	6732-51-8370	HOSE	1	SN: 26239667-UP
	?	07281-00359	CLAMP	2	SN: 26239667-UP
	?	6731-51-8150	O-RING	1	SN: 26239667-UP
	?	6731-51-8170	TUBE	1	SN: 26239667-UP
	?	6732-81-8510	CHAMBER ASS'Y	1	SN: 26239667-UP
	?	6732-81-8520	COVER	1	SN: 26239667-UP
	?	07000-E3038	O-RING	1	SN: 26239667-UP
	?	6732-81-8530	HOUSING	1	SN: 26239667-UP
	?	01435-00612	BOLT	3	SN: 26239667-UP
	?	6736-51-8710	O-RING	1	SN: 26239667-UP
	?	6732-21-3120	BOLT	2	SN: 26239667-UP
	?	6732-51-8380	HOSE	1	SN: 26239667-UP
	?	6732-51-8180	CONNECTOR ASS'Y	2	SN: 26239667-UP
	?		O-RING	1	SN: 26239667-UP
	?		CONNECTOR	1	SN: 26239667-UP
	?		O-RING	1	SN: 26239667-UP

Komatsu S4D102E-1N S/N 26200163-UP parts catalog PDF

TURBOCHARGER OIL PIPING(#26239667-) (A153T-01A5) in S4D102E-1N S/N 26200163-UP. Diagram image and parts list.
