S4D102E-1E-T S/N 26200163-UP

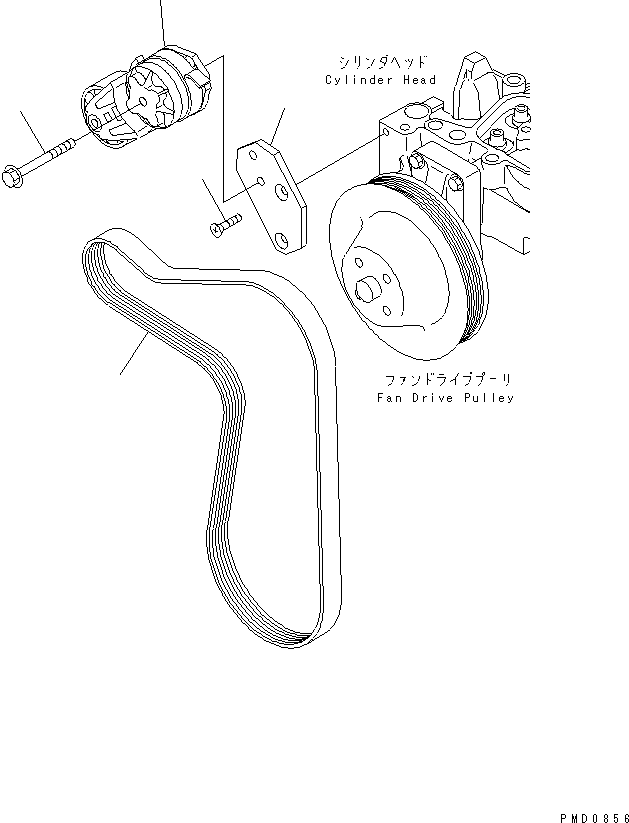

Komatsu parts book diagram for S4D102E-1E-T S/N 26200163-UP: BELT TENSIONER (FOR 25A ALTERNATOR) (COOLER SPEC.)

1 2 3 4 5

	#	Part Number	Partname	Quantity	Options	Reference
	1	6732-61-4120	BOLT	1	SN: 26200163-UP
	2	6732-81-3340	BELT	1	SN: 26200163-UP
	3	6736-61-4110	TENSIONER,BELT	1	SN: 26279934-UP
	\|3	6732-61-4130	TENSIONER,BELT	1	SN: 26203207-26279933
	\|3	6732-61-3630	TENSIONER,BELT	1	SN: 26200163-26203206
	4	6732-61-4220	SCREW	2	SN: 26200163-UP
	5	6732-61-3921	PLATE	1	SN: 26200163-UP

Komatsu S4D102E-1E-T S/N 26200163-UP parts catalog PDF

BELT TENSIONER (FOR 25A ALTERNATOR) (COOLER SPEC.) (A601S-01A0) in S4D102E-1E-T S/N 26200163-UP. Diagram image and parts list.
