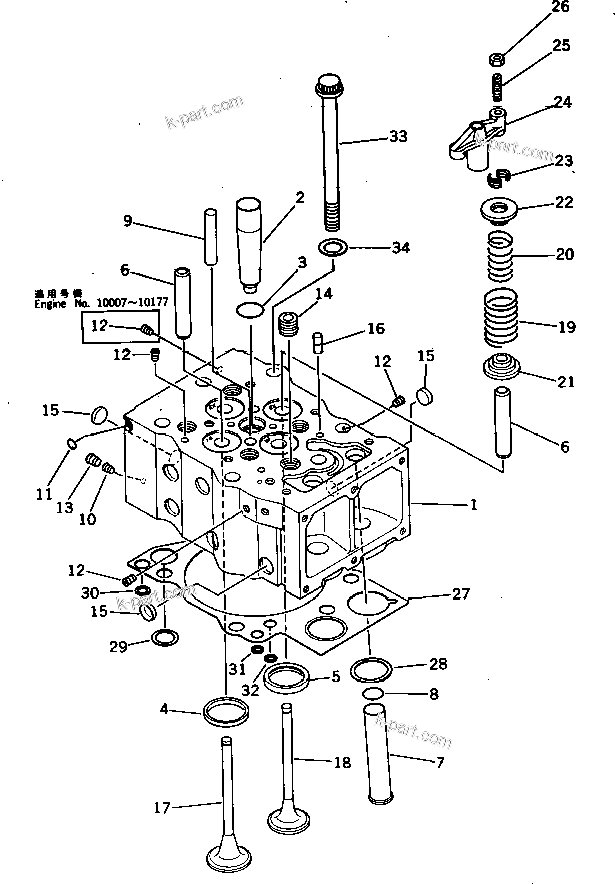

CYLINDER HEAD | SA8V170-1B S/N 10007-UP | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6164-11-1010	CYLINDER HEAD ASS'Y,WITH VALVE	8	SN: 10007-UP
?	6164-11-1100	CYLINDER HEAD ASS'Y,VALVE LESS	1	SN: 10007-UP
?	6164-11-1110	HEAD,CYLINDER	1	SN: 10007-UP
?	6162-13-1130	SLEEVE	1	SN: 10007-UP
?	6162-12-1152	O-RING (K1)	1	SN: 10007-UP
?	6162-13-1330	INSERT,INTAKE VALVE (STD)	2	SN: 10007-UP
?	6162-19-1330	INSERT¤ 0.25MM,INTAKE VALVE (OS)	2	SN: 10007-UP
?	6162-18-1330	INSERT¤ 0.50MM,INTAKE VALVE (OS)	2	SN: 10007-UP
?	6162-17-1330	INSERT¤ 0.75MM,INTAKE VALVE (OS)	2	SN: 10007-UP
?	6162-16-1330	INSERT¤ 1.00MM,INTAKE VALVE (OS)	2	SN: 10007-UP
?	6162-13-1321	INSERT,EXHAUST VALVE (STD)	2	SN: 10426-UP
?	6162-13-1320	INSERT,EXHAUST VALVE (STD)	2	SN: 10007-10425
?	6162-19-1321	INSERT¤ 0.25MM,EXHAUST VALVE (OS)	2	SN: 10426-UP
?	6162-19-1320	INSERT¤ 0.25MM,EXHAUST VALVE (OS)	2	SN: 10007-10425
?	6162-18-1321	INSERT¤ 0.50MM,EXHAUST VALVE (OS)	2	SN: 10426-UP
?	6162-18-1320	INSERT¤ 0.50MM,EXHAUST VALVE (OS)	2	SN: 10007-10425
?	6162-17-1321	INSERT¤ 0.75MM,EXHAUST VALVE (OS)	2	SN: 10426-UP
?	6162-17-1320	INSERT¤ 0.75MM,EXHAUST VALVE (OS)	2	SN: 10007-10425
?	6162-16-1321	INSERT¤ 1.00MM,EXHAUST VALVE (OS)	2	SN: 10426-UP
?	6162-16-1320	INSERT¤ 1.00MM,EXHAUST VALVE (OS)	2	SN: 10007-10425
?	6162-16-1341	GUIDE,VALVE	4	SN: 10007-UP
?	6162-13-1160	TUBE,PUSH ROD	2	SN: 10007-UP
?	07000-63028	O-RING (K1)	2	SN: 10007-UP
?	6162-13-1140	GUIDE,CROSSHEAD	2	SN: 10007-UP
?	6164-11-1210	PLUG	1	SN: 10007-UP
?	07046-11516	PLUG	1	SN: 10007-UP
?	07043-50108	PLUG	4	SN: 10178-UP
?	07043-50108	PLUG	5	SN: 10007-10177
?	07043-50211	PLUG	1	SN: 10007-UP
?	07043-50617	PLUG	5	SN: 10007-UP
?	6162-13-1150	PLUG,EXPANSION	12	SN: 10246-UP
?	6162-13-1150	PLUG,EXPANSION	11	SN: 10007-10245
?	6162-13-1410	PIN	2	SN: 10007-UP
?	6162-43-4110	VALVE,INTAKE	2	SN: 10007-UP
?	6164-41-4210	VALVE,EXHAUST	2	SN: 10007-UP
?	6162-43-4410	SPRING,OUTER	4	SN: 10007-UP
?	6162-43-4420	SPRING,INNER	4	SN: 10007-UP
?	6162-43-4430	SEAT,SPRING	4	SN: 10007-UP
?	6162-43-4511	SEAT,SPRING	4	SN: 10007-UP
?	6162-42-4520	COTTER,VALVE	8	SN: 10007-UP
?	6162-43-5610	CROSSHEAD	16	SN: 10007-UP
?	6162-43-5640	SCREW,ADJUST	16	SN: 10007-UP
?	6127-41-5630	NUT	16	SN: 10007-UP
?		STANDARD	-1
?	6164-11-1814	GASKET,HEAD (K1)	8	SN: 10515-UP
?	6164-17-1813	GASKET,HEAD (K1)	8	SN: 10383-10514
?	6164-11-1813	GASKET,HEAD (K1)	8	SN: 10339-10382
?	6164-11-1811	GASKET,HEAD (K1)	8	SN: 10007-10338
?	6162-13-1820	GROMMET,OIL	2	SN: 10339-UP
?	6162-13-1832	GROMMET,WATER	1	SN: 10515-UP
?	6162-13-1831	GROMMET,WATER	1	SN: 10346-10514
?	6162-13-1830	GROMMET,WATER	1	SN: 10339-10345
?	6164-11-1821	GROMMET	1	SN: 10339-UP
?	6162-13-1840	GROMMET,WATER	1	SN: 10339-UP
?	6162-13-1851	GROMMET,WATER	1	SN: 10515-UP
?	6162-13-1850	GROMMET,WATER	1	SN: 10339-10514
?		OVERSIZE 0.40MM	-1
?	6164-19-1814	GASKET,HEAD	8	SN: 10007-UP
?	6162-19-1820	GROMMET,OIL	2	SN: 10007-UP
?	6162-19-1832	GROMMET,WATER	1	SN: 10007-UP
?	6164-19-1821	GROMMET	1	SN: 10007-UP
?	6162-19-1840	GROMMET,WATER	1	SN: 10007-UP
?	6162-19-1851	GROMMET,WATER	1	SN: 10007-UP
?	6162-13-1611	BOLT,HEAD	48	SN: 10341-UP
?	6162-13-1610	BOLT,HEAD	48	SN: 10007-10340
?	6162-13-1620	WASHER	48	SN: 10007-UP
