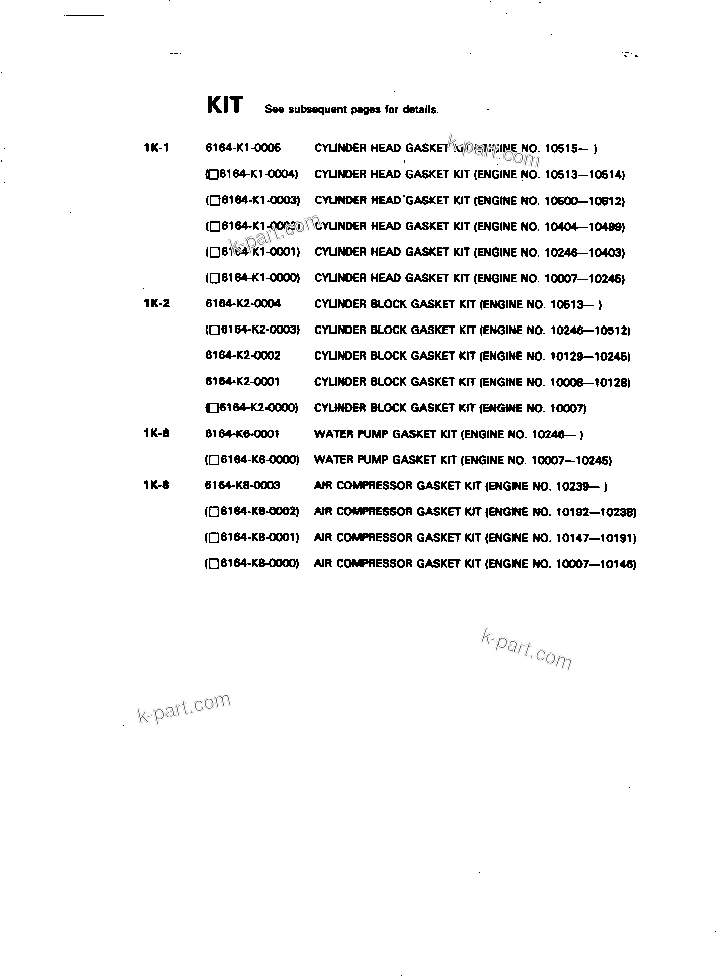

GASKET KIT | SA8V170-1B S/N 10007-UP | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	6164-K1-0005	GASKET KIT,CYLINDER HEAD	1	SN: 10515-UP
?	6164-K1-0004	GASKET KIT,CYLINDER HEAD	1	SN: 10513-10514
?	6164-K1-0003	GASKET KIT,CYLINDER HEAD	1	SN: 10500-10512
?	6164-K1-0002	GASKET KIT,CYLINDER HEAD	1	SN: 10404-10499
?	6164-K1-0001	GASKET KIT,CYLINDER HEAD	1	SN: 10246-10403
?	6164-K1-0000	GASKET KIT,CYLINDER HEAD	1	SN: 10007-10245
?	6162-12-1152	O-RING,SLEEVE	8	SN: 10007-UP
?	07000-63028	O-RING,TUBE	16	SN: 10007-UP
?	6164-11-1814	GASKET,CYLINDER HEAD	8	SN: 10515-UP
?	6164-17-1813	GASKET,CYLINDER HEAD	8	SN: 10383-10514
?	6164-11-1813	GASKET,CYLINDER HEAD	8	SN: 10339-10382
?	6164-11-1811	GASKET,CYLINDER HEAD	8	SN: 10007-10338
?	6164-11-7813	GASKET,ROCKER ARM HOUSING	8	SN: 10450-10512
?	6164-11-7812	GASKET,ROCKER ARM HOUSING	8	SN: 10409-10449
?	6164-11-7811	GASKET,ROCKER ARM HOUSING	8	SN: 10246-10408
?	6164-11-7810	GASKET,ROCKER ARM HOUSING	8	SN: 10007-10245
?	6162-13-7822	PACKING,ROCKER ARM HOUSING	8	SN: 10404-10512
?	6164-11-7803	GASKET ASS'Y,ROCKER ARM HOUSING	8	SN: 10513-UP
?	6162-13-8810	GASKET,ROCKER ARM HOUSING COVER	8	SN: 10007-UP
?	6162-13-8181	PACKING,NOZZLE HOLDER	8	SN: 10007-UP
?	6162-13-8180	PACKING,NOZZLE HOLDER	8	SN: (10007-10405)
?	6164-11-4120	GROMMET,INTAKE MANIFOLD	1	SN: 10007-UP
?	6164-11-4151	GASKET,INTAKE MANIFOLD	1	SN: 10354-UP
?	6164-11-4150	GASKET,INTAKE MANIFOLD	1	SN: 10007-10353
?	6164-61-6360	GASKET,INTAKE MANIFOLD	2	SN: 10500-UP
?	6164-11-4850	O-RING,AIR CONNECTOR	8	SN: 10007-UP
?	6164-11-4871	O-RING,AIR CONNECTOR	8	SN: 10246-UP
?	6164-11-4870	O-RING,AIR CONNECTOR	8	SN: 10007-10245
?	6164-61-6130	GASKET,AFTER COOLER	3	SN: 10500-UP
?	6164-11-4330	GASKET,AFTER COOLER	1	SN: 10007-UP
?	6164-61-7160	GASKET,AIR CONNECTOR	2	SN: 10007-UP
?	6162-13-5810	GASKET,EXHAUST MANIFOLD	8	SN: 10007-UP
?	6164-11-5290	GASKET,EXHAUST MANIFOLD	2	SN: 10007-UP
?	6151-11-5710	GASKET,TURBOCHARGER MOUNTING	2	SN: 10007-UP
?	6162-83-2810	GASKET,TURBOCHARGER MOUNTING	2	SN: 10007-UP
?	02895-67075	O-RING,AIR CONNECTOR	8	SN: 10007-UP
?	6164-11-5830	GASKET,EXHAUST MANIFOLD	8	SN: 10007-UP
?	6166-11-6290	O-RING,WATER MANIFOLD	16	SN: 10383-UP
?	07000-05065	O-RING,WATER MANIFOLD	16	SN: 10007-10382
?	07000-02070	O-RING,WATER MANIFOLD	1	SN: 10007-UP
?	07005-01612	GASKET,HOUSING	2	SN: 10007-10499
?	6164-11-6451	GASKET,HOUSING	2	SN: 10513-UP
?	6164-11-6450	GASKET,HOUSING	2	SN: 10007-10512
?	6164-11-6750	GASKET,HOUSING	2	SN: 10007-UP
?	6164-61-6660	GASKET,HOUSING	1	SN: 10007-UP
?	600-411-1670	O-RING,HOUSING	2	SN: 10007-UP
?	6164-11-6850	GASKET,WATER CONNECTOR	2	SN: 10007-UP
?	07005-01212	GASKET,WATER CONNECTOR	2	SN: 10007-10499
?	6164-61-6340	O-RING,WATER PIPING	4	SN: 10007-UP
?	6164-61-6360	GASKET,WATER PIPING	4	SN: 10007-UP
?	07000-23038	O-RING,WATER PIPING	2	SN: 10007-UP
?	07000-02070	O-RING,WATER PIPING	1	SN: 10007-UP
?	07005-01212	GASKET,AIR VENT PIPING	4	SN: 10007-10499
?	07005-01412	GASKET,AIR VENT PIPING	16	SN: 10007-10499
?	07000-32020	O-RING,LUBRICATING OIL PIPING	2	SN: 10500-UP
?	6151-51-8150	GASKET,LUBRICATING OIL PIPING	2	SN: 10007-UP
?	6151-51-8160	GASKET,LUBRICATING OIL PIPING	2	SN: 10007-UP
?	07005-00812	GASKET,FUEL RETURN PIPING	4	SN: 10007-10499
?	07000-01006	O-RING,CORROSION RESISTOR	1	SN: 10007-10499
?	07000-02014	O-RING,CORROSION RESISTOR	1	SN: 10007-10499
?	600-411-1670	O-RING,CORROSION RESISTOR	2	SN: 10007-UP
?	07005-00812	GASKET,JOINT BOLT	5	SN: 10500-UP
?	07005-01012	GASKET,JOINT BOLT	5	SN: 10500-UP
?	07005-01212	GASKET,JOINT BOLT	10	SN: 10500-UP
?	07005-01412	GASKET,JOINT BOLT	20	SN: 10500-UP
?	07005-01612	GASKET,JOINT BOLT	5	SN: 10500-UP
?	08034-00414	BAND	5	SN: 10513-UP
?	08034-00519	BAND	5	SN: 10513-UP
?	6164-K2-0004	GASKET KIT,CYLINDER BLOCK	1	SN: 10513-UP
?	6164-K2-0003	GASKET KIT,CYLINDER BLOCK	1	SN: 10246-10512
?	6164-K2-0002	GASKET KIT,CYLINDER BLOCK	1	SN: 10129-10245
?	6164-K2-0001	GASKET KIT,CYLINDER BLOCK	1	SN: 10008-10128
?	6164-K2-0000	GASKET KIT,CYLINDER BLOCK	1	SN: 10007-10007
?	6164-61-6360	GASKET,WATER PIPING	4	SN: 10007-10245
?	07000-23038	O-RING,WATER PIPING	2	SN: 10007-10045
?	6127-11-6130	GASKET,WATER PIPING	1	SN: 10007-UP
?	6164-61-6570	O-RING,WATER PIPING	1	SN: 10007-10245
?	6164-61-6460	GASKET,WATER PIPING	1	SN: 10007-10245
?	07000-65065	O-RING,CYLINDER BLOCK	1	SN: 10007-UP
?	07000-63048	O-RING,CYLINDER BLOCK	1	SN: 10007-UP
?	6164-21-5560	GASKET,CYLINDER BLOCK	1	SN: 10007-UP
?	6162-23-2250	SEAL,CREVICE¤ CYLINDER LINER	8	SN: 10007-UP
?	6162-23-2220	O-RING,UPPER¤ CYLINDER LINER	8	SN: 10007-UP
?	6162-23-2240	O-RING,LOWER¤ CYLINDER LINER	8	SN: 10007-UP
?	07000-62021	O-RING,PISTON COOLING NOZZLE	8	SN: 10007-UP
?	6110-61-6811	GASKET,BREATHER	2	SN: 10007-UP
?	6164-21-6431	GASKET,CYLINDER BLOCK COVER	2	SN: 10129-UP
?	6164-21-6430	GASKET,CYLINDER BLOCK COVER	2	SN: 10007-10128
?	6164-21-6470	GASKET,CYLINDER BLOCK COVER	1	SN: 10007-UP
?	6164-21-6570	GASKET,CYLINDER BLOCK COVER	1	SN: 10007-UP
?	6164-21-6350	GASKET,CYLINDER BLOCK COVER	4	SN: 10007-UP
?	07002-01423	O-RING,CYLINDER BLOCK COVER	1	SN: 10246-UP
?	07000-62060	O-RING,GEAR CASE	1	SN: 10007-UP
?	6164-21-3170	GROMMET,GEAR CASE	7	SN: 10007-UP
?	6164-21-3151	GASKET,GEAR CASE	1	SN: 10007-10245
?	6164-21-3250	GASKET,GEAR CASE COVER	1	SN: 10007-UP
?	6164-21-3520	GASKET,GEAR CASE COVER	1	SN: 10129-UP
?	6164-21-3520	GASKET,GEAR CASE COVER	2	SN: 10007-10128
?	6164-21-3410	SEAL¤ FRONT	1	SN: 10007-UP
?	07000-03028	O-RING,ADAPTER	1	SN: 10007-UP
?	07000-03028	O-RING,ADAPTER	1	SN: 10007-UP
?	6164-21-2590	GROMMET,BALANCE GEAR	1	SN: 10007-UP
?	6164-21-2590	GROMMET,IDLER GEAR	1	SN: 10007-UP
?	6164-21-5931	GASKET,OIL PAN	1	SN: 10246-UP
?	6164-21-5930	GASKET,OIL PAN	1	SN: 10007-10245
?	6164-21-5280	GASKET,OIL PAN	1	SN: 10007-UP
?	07000-63035	O-RING,DRAIN VALVE	1	SN: 10007-UP
?	6164-21-4821	GASKET,FLYWHEEL HOUSING	1	SN: 10007-10245
?	07005-01612	GASKET,FLYWHEEL HOUSING	2	SN: 10007-UP
?	6164-21-2590	GROMMET,SHAFT	1	SN: 10007-UP
?	07005-01412	GASKET,SHAFT	1	SN: 10007-10245
?	07000-65160	O-RING,COVER	1	SN: 10007-UP
?	6164-21-4421	GASKET,FLYWHEEL HOUSING COVER	1	SN: 10007-UP
?	6164-21-4261	SEAL¤ REAR	1	SN: 10513-UP
?	6164-21-4260	SEAL¤ REAR	1	SN: 10007-10512
?	6150-21-4740	GASKET,BARING DIVICE	1	SN: 10246-UP
?	07000-02055	O-RING,BARING DIVICE	1	SN: 10007-10245
?	6162-42-1150	BOLT,LOCK	4	SN: 10007-UP
?	07000-61009	O-RING,OIL PUMP	1	SN: 10007-UP
?	6164-51-6410	O-RING,SUCTION PIPE	1	SN: 10007-UP
?	6164-61-5790	GASKET,OIL FILTER	1	SN: 10007-10245
?	6164-61-5810	GASKET,OIL FILTER	1	SN: 10007-10245
?	07000-62055	O-RING,OIL FILTER MOUNTING	2	SN: 10007-UP
?	6128-51-6830	GASKET,LUBRICATING OIL PIPING	2	SN: 10007-UP
?	07000-62020	O-RING,LUBRICATING OIL PIPING	1	SN: 10007-UP
?	6164-51-8172	GASKET,LUBRICATING OIL PIPING	1	SN: 10450-UP
?	6164-51-8171	GASKET,LUBRICATING OIL PIPING	1	SN: 10246-10449
?	6164-51-8170	GASKET,LUBRICATING OIL PIPING	1	SN: 10007-10245
?	MK-2M-36E-215	O-RING,MECHANICAL PUMP MOUNTING	1	SN: 10513-UP
?	6166-51-2230	GASKET,MECHANICAL PUMP MOUNTING	1	SN: 10007-UP
?	6127-71-3250	SEAL,OIL	1	SN: 10007-UP
?	6162-73-1960	WASHER,FELT	1	SN: 10007-UP
?	6162-73-1930	GASKET,HOUSING	1	SN: 10007-UP
?	07005-00812	GASKET,MECHANICAL PUMP PIPING	6	SN: 10007-10245
?	07005-00812	GASKET,MECHANICAL PUMP PIPING	2	SN: 10007-10245
?	6165-61-2370	PACKING ASS'Y,OIL COOLER	4	SN: 10129-UP
?	6165-61-2350	PACKING ASS'Y,OIL COOLER	4	SN: 10007-10128
?	6165-61-2390	O-RING,OIL COOLER	4	SN: 10129-UP
?	6164-61-2251	GASKET,OIL COOLER	1	SN: 10008-UP
?	6164-61-2250	GASKET,OIL COOLER	1	SN: 10007-10007
?	07002-03334	O-RING,OIL COOLER	4	SN: 10007-UP
?	6164-61-2810	GROMMET,OIL COOLER	2	SN: 10007-UP
?	6164-61-2830	O-RING,OIL COOLER	1	SN: 10007-UP
?	6164-61-2840	O-RING,OIL COOLER	1	SN: 10007-UP
?	07000-63030	O-RING,BYPASS VALVE	2	SN: 10007-10245
?	6164-61-5820	GASKET,BYPASS VALVE	1	SN: 10007-UP
?	6165-61-5820	GASKET,BYPASS VALVE	1	SN: 10007-UP
?	6164-61-2820	GROMMET,COOLING VALVE	2	SN: 10007-UP
?	6127-11-1830	GROMMET,COOLING VALVE	1	SN: 10007-UP
?	07000-63040	O-RING,COOLING VALVE	1	SN: 10007-10245
?	07005-01412	GASKET,INJECTION PUMP PIPING	1	SN: 10007-10245
?	6165-71-3330	GASKET,INJECTION PUMP DRIVE	1	SN: 10007-UP
?	6164-21-3170	GROMMET,INJECTION PUMP DRIVE	1	SN: 10007-UP
?	07000-63032	O-RING,INJECTION PUMP DRIVE	1	SN: 10007-UP
?	6166-91-1250	GASKET,FUEL PUMP	1	SN: 10007-UP
?	6166-91-1230	GASKET,FUEL PUMP	1	SN: 10007-UP
?	07002-43634	O-RING,PLUG	1	SN: 10007-UP
?	07005-01412	GASKET,FUEL PUMP PIPING	8	SN: 10007-10245
?	07005-00812	GASKET,FUEL FILTER	1	SN: 10007-10245
?	07005-02216	GASKET,FUEL PIPING	4	SN: 10007-UP
?	07005-01412	GASKET,FUEL PIPING	2	SN: 10007-10245
?	07012-00090	SEAL,FAN PULLEY	1	SN: 10007-UP
?	04081-06512	LOCK	1	SN: 10007-UP
?	6165-61-3270	GASKET,FAN PULLEY	1	SN: 10007-UP
?	06122-05004	SEAL,BEARING	2	SN: 10007-UP
?	01653-21012	WASHER,LOCK	1	SN: 10007-UP
?	07012-00058	SEAL,OIL	1	SN: 10007-UP
?	6162-62-3790	PLATE,LOCK	1	SN: 10007-UP
?	6162-62-3740	GASKET,TENSION PULLEY	1	SN: 10007-UP
?	07000-02055	O-RING,ALTERNATOR DRIVE	1	SN: 10246-UP
?	6164-61-1890	SEAL,OIL	1	SN: 10450-UP
?	07012-20070	SEAL,OIL	1	SN: 10246-10449
?	07005-03016	GASKET,ALTERNATOR DRIVE	1	SN: 10246-UP
?	6164-61-1751	O-RING,ALTERNATOR DRIVE	1	SN: 10246-UP
?	6610-81-2210	GASKET,STARTING MOTOR	2	SN: 10007-UP
?	07000-02055	O-RING,ACCESSORY DRIVE	1	SN: 10246-UP
?	07012-20070	SEAL,OIL	1	SN: 10246-UP
?	6164-61-1751	O-RING,ACCESSORY DRIVE	1	SN: 10246-UP
?	07005-00812	GASKET,JOINT BOLT	10	SN: 10246-UP
?	07005-01412	GASKET,JOINT BOLT	15	SN: 10246-UP
?	08034-00414	BAND	5	SN: 10513-UP
?	08034-00519	BAND	5	SN: 10513-UP
?	6164-K6-0001	GASKET KIT,WATER PUMP	1	SN: 10246-UP
?	6164-K6-0000	GASKET KIT,WATER PUMP	1	SN: 10007-10245
?	07000-02095	O-RING,WATER PIPING	1	SN: 10007-UP
?	6164-61-6570	O-RING,WATER PIPING	1	SN: 10007-UP
?	6164-61-6460	GASKET,WATER PIPING	1	SN: 10007-UP
?	6164-61-1160	SEAL,OIL	1	SN: 10007-UP
?	6127-61-1516	SEAL¤ WATER	1	SN: 10007-UP
?	07000-02016	O-RING,WATER PUMP	1	SN: 10007-UP
?	07000-02012	O-RING,WATER PUMP	1	SN: 10007-UP
?	07000-05165	O-RING,WATER PUMP	1	SN: 10007-UP
?	6164-61-1551	O-RING,WATER PUMP	1	SN: 10007-UP
?	07000-02055	O-RING,ALTERNATOR DRIVE	1	SN: 10007-10245
?	07012-20070	SEAL,OIL	1	SN: 10007-10245
?	07005-03016	GASKET,ALTERNATOR DRIVE	1	SN: 10007-10245
?	6164-61-1751	O-RING,ALTERNATOR DRIVE	1	SN: 10007-10245
?	6164-K8-0003	GASKET KIT,AIR COMPRESSOR	1	SN: 10239-UP
?	6164-K8-0002	GASKET KIT,AIR COMPRESSOR	1	SN: 10192-10238
?	6164-K8-0001	GASKET KIT,AIR COMPRESSOR	1	SN: 10147-10191
?	6164-K8-0000	GASKET KIT,AIR COMPRESSOR	1	SN: 10007-10146
?	6166-91-1250	GASKET,FUEL PUMP	1	SN: 10007-UP
?	6166-91-1230	GASKET,FUEL PUMP	1	SN: 10007-10191
?	07002-43634	O-RING,PLUG	1	SN: 10007-10191
?	07005-01412	GASKET,FUEL PUMP PIPING	8	SN: 10007-10191
?	6710-91-2222	GASKET,AIR COMPRESSOR MOUNTING	1	SN: 10007-UP
?	6164-21-3831	O-RING,AIR COMPRESSOR MOUNTING	1	SN: 10147-UP
?	6164-21-3830	O-RING,AIR COMPRESSOR MOUNTING	1	SN: 10007-10145
?	07003-01419	GASKET,AIR COMPRESSOR PIPING	8	SN: 10147-10191
?	07005-01412	GASKET,AIR COMPRESSOR PIPING	8	SN: 10007-10146
?	07003-01419	GASKET,AIR COMPRESSOR PIPING	4	SN: 10147-10191
?	07005-01412	GASKET,AIR COMPRESSOR PIPING	5	SN: 10007-10146
?	6164-91-6220	GASKET,AIR COMPRESSOR PIPING	10	SN: 10147-UP
?	07005-02416	GASKET,AIR COMPRESSOR PIPING	10	SN: 10007-10146
?	07003-01419	GASKET,AIR COMPRESSOR PIPING	4	SN: 10147-10191
?	07003-01419	GASKET,AIR COMPRESSOR PIPING	2	SN: 10147-10191
?	07000-02055	O-RING,ACCESSORY DRIVE	1	SN: 10007-10191
?	07012-20070	SEAL,ACCESSORY DRIVE	1	SN: 10007-10191
?	07005-03016	GASKET,ACCESSORY DRIVE	1	SN: 10007-UP
?	6164-61-1751	O-RING,ACCESSORY DRIVE	1	SN: 10007-10191
?	DK487061-2500	O-RING,AIR COMPRESSOR	1	SN: 10007-UP
?	DK487020-3000	GASKET,AIR COMPRESSOR	1	SN: 10007-UP
?	DK487061-3700	O-RING,AIR COMPRESSOR	2	SN: 10007-UP
?	DK029300-8490	WASHER,AIR COMPRESSOR	4	SN: 10007-UP
?	DK487020-2200	GASKET,AIR COMPRESSOR	2	SN: 10007-UP
?	DK016530-1040	O-RING,AIR COMPRESSOR	2	SN: 10007-UP
?	DK026514-1840	GASKET,AIR COMPRESSOR	1	SN: 10007-UP
?	DK487020-3100	GASKET,AIR COMPRESSOR	1	SN: 10007-UP
?	DK487020-2900	GASKET,AIR COMPRESSOR	1	SN: 10007-UP
?	DK026506-1040	GASKET,AIR COMPRESSOR	1	SN: 10007-UP
?	DK016530-1040	O-RING,AIR COMPRESSOR	2	SN: 10007-UP
?	DK026514-1840	GASKET,AIR COMPRESSOR	1	SN: 10007-UP
?	DK487020-3100	GASKET,AIR COMPRESSOR	1	SN: 10007-UP
?	DK487020-2900	GASKET,AIR COMPRESSOR	1	SN: 10007-UP
?	DK026506-1040	GASKET,AIR COMPRESSOR	1	SN: 10007-UP
?	DK487061-4200	O-RING,AIR COMPRESSOR	2	SN: 10239-UP
?	DK487061-4600	O-RING,AIR COMPRESSOR	1	SN: 10239-UP
?	DK487061-4700	O-RING,AIR COMPRESSOR	1	SN: 10239-UP
?	07003-01419	GASKET	20	SN: 10192-UP

Search in All Books

Komatsu SA8V170-1B S/N 10007-UP parts catalog PDF

How to get full access?
