GASKET KIT | SA6D110-1W S/N 54110-UP | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options

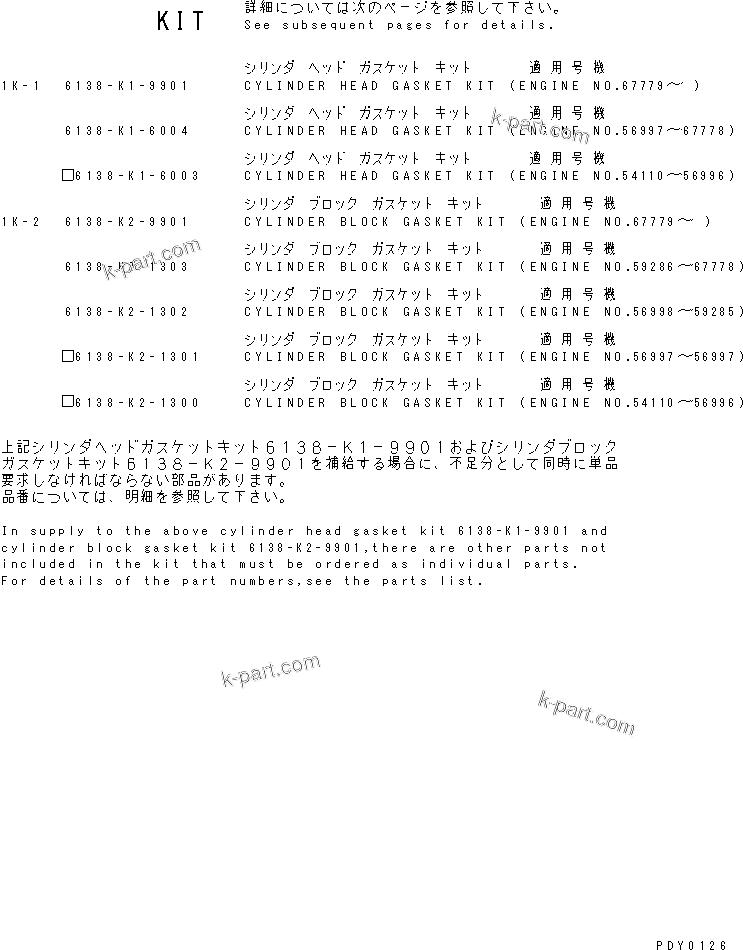

?	6138-K1-9901	GASKET KIT,CYLINDER HEAD	1	SN: 67779-UP
?	\4\6138-K1-6004	GASKET KIT,CYLINDER HEAD	1	SN: 56997-67778
?		(6138-K1-9901,6136-11-8814)	-1
?	6138-K1-6003	GASKET KIT,CYLINDER HEAD	1	SN: 54110-56996
?	6138-19-1811	GASKET	1	SN: 67779-UP
?	6138-19-1810	GASKET	1	SN: 54110-67778
?	6136-11-1840	GASKET	6	SN: 67779-UP
?	6136-11-1821	GASKET	2	SN: 54110-67778
?	6114-21-5190	O-RING	1	SN: 54110-UP
?	6136-11-8814	O-RING	1	SN: 54110-67778
?	6136-11-8142	PACKING	4	SN: 54110-UP
?	6138-11-4860	GASKET	2	SN: 67779-UP
?	6138-11-4810	GASKET	2	SN: 54110-67778
?	6128-61-6831	GASKET	2	SN: 67779-UP
?	6128-61-6830	GASKET	2	SN: 54110-67778
?	07000-02021	O-RING	1	SN: 54110-UP
?	6138-61-6550	GASKET	2	SN: 67779-UP
?	6138-61-6451	GASKET	1	SN: 54110-67778
?	6162-63-6240	O-RING	4	SN: 54110-UP
?	6138-11-4650	GASKET	2	SN: 67779-UP
?	6138-11-4620	GASKET	2	SN: 54110-67778
?	6138-11-4840	GASKET	2	SN: 67779-UP
?	6138-11-4820	GASKET	1	SN: 54110-67778
?	6138-61-6560	GASKET	2	SN: 67779-UP
?	6138-61-6461	GASKET	1	SN: 54110-67778
?	6127-81-4823	GASKET	1	SN: 67779-UP
?	6127-81-4821	GASKET	1	SN: 54110-67778
?	6136-11-5810	GASKET	3	SN: 54110-UP
?	6131-11-5170	GASKET	1	SN: 54110-UP
?	6138-11-5810	GASKET	1	SN: 54110-UP
?	07000-62018	O-RING	1	SN: 54110-UP
?	6207-51-7690	GASKET	1	SN: 67779-UP
?	6131-51-7681	GASKET	1	SN: 54110-67778
?	07005-00812	SEAL, WASHER	24	SN: 67779-UP
?	07005-00812	SEAL, WASHER	12	SN: 54110-67778
?	6136-11-3131	PACKING	6	SN: 56997-UP
?	07005-01612	SEAL, WASHER	5	SN: 67779-UP
?	07005-01612	SEAL, WASHER	1	SN: 56997-67778
?	6138-11-6810	GASKET	1	SN: 54110-UP
?		THE FOLLOWING PARTS ARE NOT USED FOR THIS MODEL.	-1
?	07000-23022	O-RING	2	SN: 67779-UP
?	07000-63028	O-RING	4	SN: 67779-UP
?	07002-03634	O-RING	1	SN: 67779-UP
?	07005-02216	SEAL, WASHER	2	SN: 67779-UP
?	07005-02416	SEAL, WASHER	1	SN: 67779-UP
?	08034-00310	BAND	2	SN: 67779-UP
?	08034-00414	BAND	3	SN: 54110-UP
?	08034-00519	BAND	3	SN: 54110-UP
?	600-181-6510	SEAL	1	SN: 67779-UP
?	6110-91-1341	GASKET	1	SN: 67779-UP
?	6136-11-4841	GASKET	1	SN: 67779-UP
?	6136-11-4850	GASKET	2	SN: 67779-UP
?	6136-11-6840	GASKET	1	SN: 67779-UP
?	6136-65-7631	GASKET	1	SN: 67779-UP
?	6136-65-8651	GASKET	2	SN: 67779-UP
?	6137-15-5222	GASKET	1	SN: 67779-UP
?	6137-15-5242	GASKET	1	SN: 67779-UP
?	6138-65-7142	GASKET	3	SN: 67779-UP
?	6138-65-7221	GASKET	1	SN: 67779-UP
?	6138-65-8351	GASKET	4	SN: 67779-UP
?	6140-64-7581	GASKET	1	SN: 67779-UP
?	6141-14-5463	GASKET	7	SN: 67779-UP
?	6212-11-5940	GASKET	1	SN: 67779-UP
?	6620-21-7530	GASKET	1	SN: 67779-UP
?	6620-21-7562	GASKET	1	SN: 67779-UP
?	7700-16-1171	GASKET	1	SN: 67779-UP
?	7700-75-1430	GASKET	1	SN: 67779-UP
?		THE FOLLOWING PARTS ARE THE PARTS NOT INCLUDED IN THE GASKET KIT.	-1
?	6136-11-8814	O-RING	1	SN: 67779-UP
?	6138-K2-9901	GASKET KIT,CYLINDER BLOCK	1	SN: 67779-UP
?	\4\6138-K2-1303	GASKET KIT,CYLINDER BLOCK	1	SN: 59286-67778
?		(6138-K2-9901,6130-21-4231)	-1
?	6138-K2-1302	GASKET KIT,CYLINDER BLOCK	1	SN: 56998-59285
?	6138-K2-1301	GASKET KIT,CYLINDER BLOCK	1	SN: 56997-56997
?	6138-K2-1300	GASKET KIT,CYLINDER BLOCK	1	SN: 54110-56996
?	07005-01212	SEAL, WASHER	5	SN: 54110-UP
?	6136-21-7830	GASKET	1	SN: 67779-UP
?	6136-21-7811	GASKET	1	SN: 54110-67778
?	6136-21-3840	GASKET	1	SN: 67779-UP
?	6136-21-3821	GASKET	1	SN: 54110-67778
?	6136-21-3830	GASKET	1	SN: 67779-UP
?	6136-21-3812	GASKET	1	SN: 54110-67778
?	6136-21-3510	SEAL, FRONT	1	SN: 54110-67778
?	6150-71-1910	SEAL	1	SN: 54110-UP
?	07000-02070	O-RING	1	SN: 54110-UP
?	07002-23634	O-RING	1	SN: 54110-UP
?	07000-62055	O-RING	1	SN: 54110-UP
?	6136-21-5810	GASKET	1	SN: 54110-67778
?	07005-02416	SEAL, WASHER	1	SN: 59286-UP
?	07002-02434	O-RING	1	SN: 59286-UP
?	6136-21-4840	GASKET	1	SN: 67779-UP
?	6136-21-4812	GASKET	1	SN: 54110-67778
?	6130-21-4231	SEAL, REAR	1	SN: 54110-67778
?	07000-63035	O-RING	1	SN: 54110-UP
?	07000-63028	O-RING	5	SN: 54110-UP
?	07000-23022	O-RING	3	SN: 54110-UP
?	07000-62018	O-RING	1	SN: 54110-56996
?	6131-51-7681	GASKET	1	SN: 54110-56996
?	6136-61-2190	O-RING	1	SN: 56997-UP
?	6136-61-2150	O-RING	1	SN: 56997-UP
?	07000-02018	O-RING	1	SN: 56997-UP
?	6136-61-2281	GASKET	2	SN: 67779-UP
?	6136-61-2290	GASKET	2	SN: 59286-67778
?	6127-61-2971	O-RING	4	SN: 56997-59285
?	6136-61-2820	GASKET	1	SN: 67779-UP
?	6136-61-2811	GASKET	1	SN: 54110-67778
?	6136-71-3420	GASKET	1	SN: 67779-UP
?	6131-81-3141	GASKET	1	SN: 54110-67778
?	6136-71-3141	WASHER	1	SN: 56998-67778
?	07005-01012	SEAL, WASHER	6	SN: 67779-UP
?	07005-01012	SEAL, WASHER	10	SN: 59286-67778
?	07005-01012	SEAL, WASHER	6	SN: 56997-59285
?	07005-01012	SEAL, WASHER	4	SN: 54110-56996
?	07005-00812	SEAL, WASHER	2	SN: 67779-UP
?	07005-00812	SEAL, WASHER	3	SN: 56997-56997
?	07005-01412	SEAL, WASHER	9	SN: 67779-UP
?	07005-01412	SEAL, WASHER	10	SN: 59286-67778
?	07005-01412	SEAL, WASHER	8	SN: 54110-59285
?	6150-61-1520	SEAL, WATER	1	SN: 54110-67778
?	07000-05160	O-RING	1	SN: 54110-UP
?	6131-62-1340	SEAL	1	SN: 54110-UP
?	6136-61-1820	GASKET	1	SN: 67779-UP
?	6136-61-1811	GASKET	1	SN: 54110-67778
?	07005-01612	SEAL, WASHER	1	SN: 54110-56996
?	07000-02100	O-RING	1	SN: 54110-UP
?	6164-91-6220	GASKET	1	SN: 67779-UP
?	07005-02416	SEAL, WASHER	1	SN: 54110-67778
?		THE FOLLOWING PARTS ARE NOT USED FOR THIS MODEL.	-1
?	07000-02145	O-RING	1	SN: 67779-UP
?	07000-03020	O-RING	1	SN: 67779-UP
?	07000-03022	O-RING	1	SN: 67779-UP
?	07000-62018	O-RING	1	SN: 67779-UP
?	07002-02034	O-RING	1	SN: 67779-UP
?	07002-03634	O-RING	1	SN: 67779-UP
?	07003-02733	GASKET	1	SN: 67779-UP
?	07005-01612	SEAL, WASHER	2	SN: 67779-UP
?	07005-02216	SEAL, WASHER	2	SN: 67779-UP
?	07012-00032	SEAL	1	SN: 67779-UP
?	08034-00414	BAND	3	SN: 54110-UP
?	08034-00519	BAND	3	SN: 54110-UP
?	6138-61-6451	GASKET	1	SN: 56998-67778
?	07000-03022	O-RING	1	SN: 54110-59285
?	6136-11-1840	GASKET	1	SN: 67779-UP
?	6136-21-5821	GASKET	1	SN: 67779-UP
?	6136-22-3510	SEAL, FRONT	1	SN: 67779-UP
?	6138-21-7322	GASKET	1	SN: 67779-UP
?	6138-61-6550	GASKET	1	SN: 67779-UP
?	6211-61-1520	SEAL, WATER	1	SN: 67779-UP
?		THE FOLLOWING PARTS ARE THE PARTS NOT INCLUDED IN THE GASKET KIT.	-1
?	6130-21-4231	SEAL, REAR	1	SN: 67779-UP
