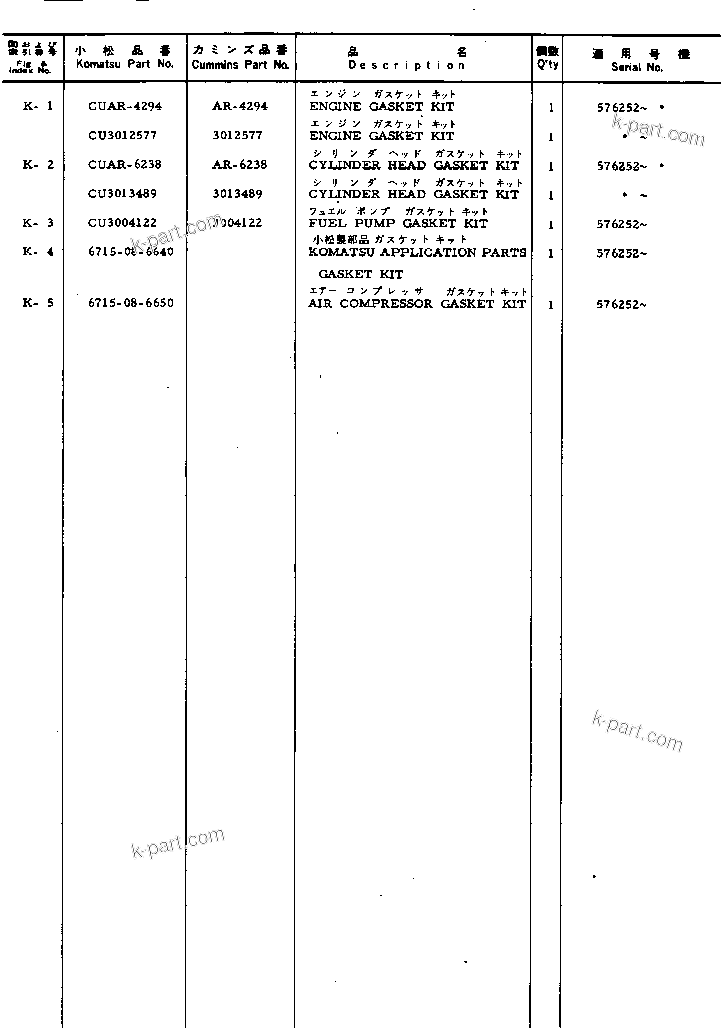

SERVICE KIT | VT-1710-1 S/N 576252-UP | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	CUAR-4294	GASKET KIT,ENGINE	1	SN: 576252-UP
?	02891-02016	O-RING	4	SN: 576252-UP
?	CU3007441	O-RING,PISTON COOLING NOZZLE	12	SN: 576252-UP
?	CU3002562	O-RING,REAR COVER	1	SN: 576252-UP
?	CU181243	GASKET,REAR COVER PLATE	1	SN: 576252-UP
?	CU181085	GASKET,GEAR HOUSING	1	SN: 576252-UP
?	CU215705	PACKING	2	SN: 576252-UP
?	CU3003887	SEAL,FRONT	1	SN: 576252-UP
?	CU300975	SEAL,FUEL DRIVE	1	SN: 576252-UP
?	CU181187	GASKET,GEAR COVER	1	SN: 576252-UP
?	6610-81-4150	GASKET,OIL PAN AND COOLER	2	SN: 576252-UP
?	CU66998	SEAL,RUBBER, OIL PAN	1	SN: 576252-UP
?	CU301057	O-RING,OIL TUBE	6	SN: .-UP
?	CU178937	O-RING,OIL TUBE	6	SN: 576252-.
?	CU186714	RING,OIL TRANSFER CONNECTION	1	SN: 576252-UP
?	CU181256	GASKET,OIL PAN	1	SN: 576252-UP
?	CU64565	GASKET,CAMSHAFT COVER	2	SN: 576252-UP
?	CU181415	GASKET,HAND HOLE COVER	1	SN: 576252-UP
?	CU3002734	GASKET,HAND HOLE COVER	5	SN: 576252-UP
?	CU43567	GASKET,WATER HEAD COVER	1	SN: 576252-UP
?	CU43569	GASKET,WATER HEAD COVER	1	SN: 576252-UP
?	CU196337	GASKET,WATER INLET CONNECTION	1	SN: 576252-UP
?	CU180760	GASKET,LUBRICATING OIL PUMP COVER	1	SN: 576252-UP
?	CU172723	GASKET,OIL COOLER COVER	2	SN: 576252-UP
?	6715-52-5460	GASKET,OIL FILTER AND COOLER	2	SN: 576252-UP
?	CU3001562	GASKET,WATER CONNECTION	1	SN: 576252-830881
?	CU122981	O-RING,WATER INLET CONNECTION	4	SN: 576252-UP
?	CU200808	GASKET,ACCESSORY DRIVE	1	SN: 576252-UP
?	CU113914	GASKET,WATER OUTLET CONNECTION	1	SN: 576252-UP
?	CU69654	GASKET,WATER INLET	1	SN: 576252-713976
?	CU129527	GASKET,GENERATOR DRIVE	1	SN: 576252-UP
?	CUAR-6238	GASKET KIT,CYLINDER HEAD	1	SN: 576252-UP
?	CU170742	GASKET,WATER HEADER COVER	8	SN: 576252-UP
?	CUBM-98021	GASKET ASS'Y,CYLINDER HEAD	4	SN: 576252-UP
?	CU216056	GASKET,ROCKER HOUSING	4	SN: 576252-UP
?	CU201978	GASKET,ROCKER HOUSING COVER	4	SN: 576252-UP
?	CU142324	GASKET,INTAKE MANIFOLD	8	SN: 576252-UP
?	CU216486	GASKET,AFTER COOLER	2	SN: 576252-UP
?	CU3008024	GASKET,WATER CONNECTION TUBE	2	SN: 576252-UP
?	CU200258	GASKET,INTAKE MANIFOLD	2	SN: 576252-UP
?	CU188221	GASKET,END COVER	4	SN: 576252-UP
?	CU216487	GASKET,AIR INTAKE	2	SN: 576252-UP
?	CU193295	GASKET,EXHAUST MANIFOLD	12	SN: 576252-UP
?	CU190849	GASKET,TURBOCHARGER	2	SN: 576252-UP
?	CU200260	GASKET,THERMOSTAT	4	SN: 576252-UP
?	02893-05043	O-RING	4	SN: 576252-UP
?	CU193301	O-RING,WATER MANIFOLD TO HEAD	8	SN: 576252-UP
?	CU200259	GASKET,WATER OUTLET	2	SN: 576252-UP
?	CU3004122	GASKET KIT,FUEL PUMP	1	SN: 576252-UP
?	6610-71-2771	RING,DAMPER	1	SN: 576252-UP
?	6610-71-2741	RING,DAMPER	1	SN: 576252-UP
?	6610-71-2760	WASHER,SEAL	1	SN: 576252-UP
?	CU211284	GASKET,GEAR PUMP	1	SN: 576252-UP
?	6610-71-4160	O-RING,SHUT-OFF VALVE	1	SN: 576252-UP
?	6610-71-3520	O-RING	1	SN: 576252-UP
?	6610-71-1320	O-RING	1	SN: 576252-UP
?	CU213768	O-RING	1	SN: 576252-UP
?	6610-71-2410	GASKET,FRONT COVER	1	SN: 576252-UP
?	CU145505	O-RING	1	SN: 576252-UP
?	CU193734	O-RING	1	SN: 576252-UP
?	6610-71-3530	RING	1	SN: 576252-UP
?	CU218264	SEAL	1	SN: 576252-UP
?	CU200817	GASKET,FUEL PUMP	1	SN: 576252-UP
?	6610-71-1821	GASKET,SPRING PACK COVER	1	SN: 576252-UP
?	6610-71-1760	SEAL	1	SN: 576252-UP
?	6610-71-2541	GASKET,GEAR PUMP HOUSING	1	SN: 576252-UP
?	CU210647	GASKET,GEAR PUMP HOUSING	1	SN: 576252-UP
?	CU190876	O-RING	1	SN: 576252-UP
?	6715-08-6641	GASKET KIT,KOMATSU APPLICATION PARTS	1	SN: 576252-UP
?	07002-44234	O-RING	2	SN: 576252-UP
?	06122-05004	SEAL,BEARING	2	SN: 576252-UP
?	07012-00058	SEAL,OIL TENSION PULLEY	1	SN: 576252-UP
?	6162-62-3740	GASKET,TENSION PULLEY	1	SN: 576252-UP
?	6600-01-2620	WASHER,COPPER	6	SN: 576252-UP
?	6715-08-6650	GASKET KIT,AIR COMPRESSOR	1	SN: 576252-UP
?	6684-91-1721	GASKET,CONNECTION TO HEAD	1	SN: 576252-UP
?	CU218027	GASKET,AIR COMPRESSOR, DRIVE HOUSING	1	SN: 576252-UP
?	6684-91-1151	GASKET,HEAD TO CASE	1	SN: 576252-UP
?	6684-91-1130	GASKET,HEAD COVER	1	SN: 576252-UP
?	6684-91-1241	O-RING,OUTLET VALVE SEAT	1	SN: 576252-UP
?	6684-91-1250	O-RING	1	SN: 576252-UP
?	6684-91-1521	SEAL,EXTERNAL PACKING	1	SN: 576252-UP
?	6684-91-1621	O-RING,INLET VALVE SEAT	2	SN: 576252-UP
?	6684-91-2221	GASKET,SUPPORT	1	SN: 576252-UP
