SL4D130-1C S/N 24260-UP

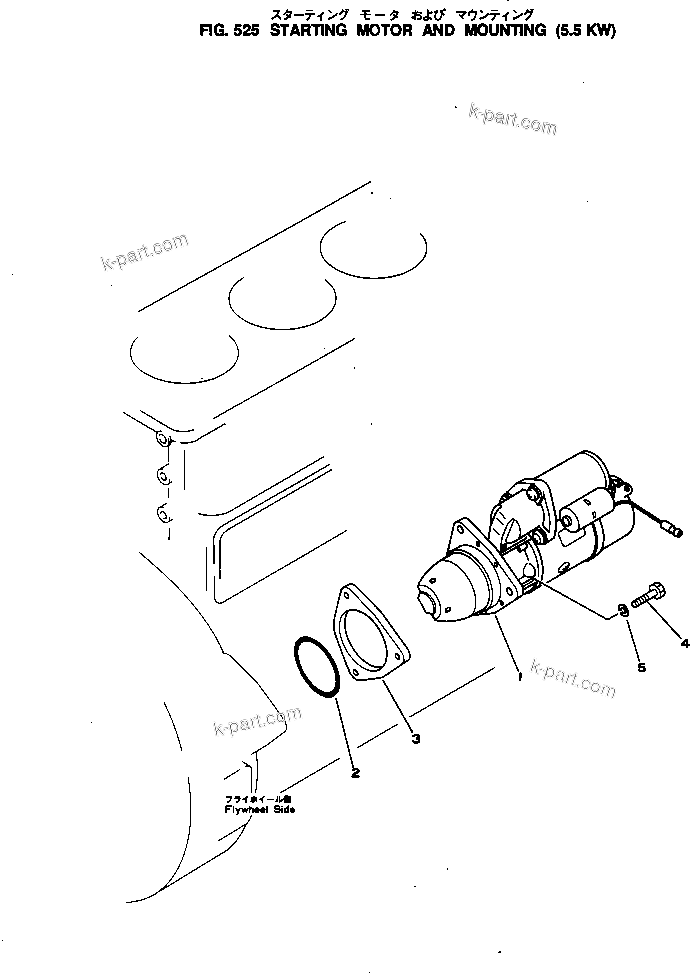

Komatsu parts book diagram for SL4D130-1C S/N 24260-UP: STARTING MOTOR AND MOUNTING (5.5KW)

	#	Part Number	Partname	Quantity	Options	Reference
	?	600-813-2393	STARTING MOTOR A.,(5.5KW)(SEE FIG.547)	1	SN: .-UP
	?	600-813-2392	STARTING MOTOR A.,(5.5KW)(SEE FIG.545)	1	SN: 24260-.
	?	07000-02100	O-RING (K2)	1	SN: 24260-UP
	?	6110-23-2830	SPACER	1	SN: 24260-UP
	?	01010-31245	BOLT	3	SN: 24260-UP
	?	01602-31236	WASHER	3	SN: 24260-UP

Komatsu SL4D130-1C S/N 24260-UP parts catalog PDF

STARTING MOTOR AND MOUNTING (5.5KW) (525) in SL4D130-1C S/N 24260-UP. Diagram image and parts list.
