6D105-1M-F S/N 15149-UP

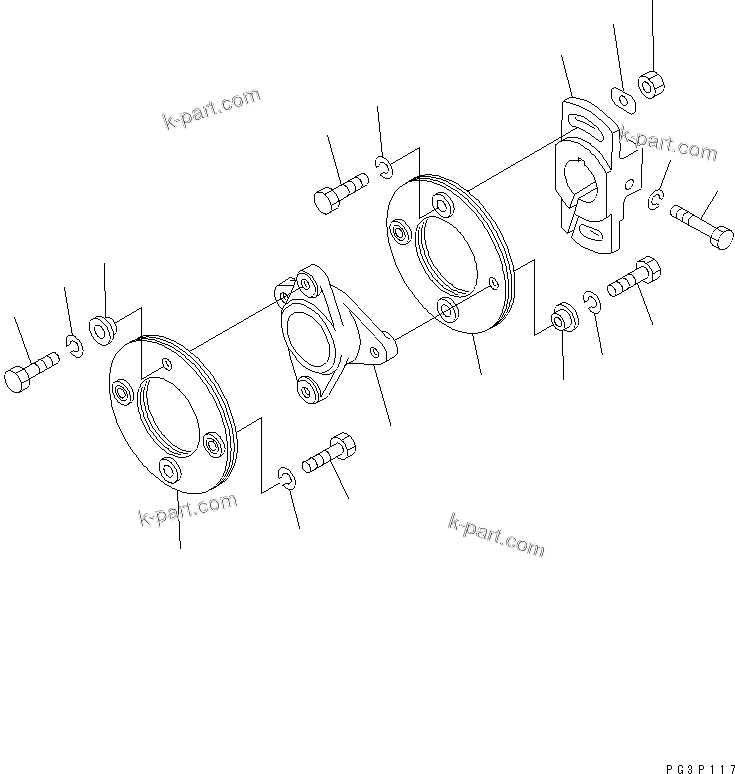

Komatsu parts book diagram for 6D105-1M-F S/N 15149-UP: FUEL INJECTION PUMP (COUPLING)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	6136-71-1430	INJECTION PUMP ASS'Y	1	SN: 16269-UP
	?		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.0455 TO 0485.	-1
	?		THE ZEXEL PART NUMBER IS THAT DK IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.	-1
	?	DK105661-0330	COUPLING ASS'Y	1	SN: 16269-UP
	?	DK156630-0500	COUPLING	1	SN: 16269-UP
	?	DK156605-1120	PLATE	2	SN: 16269-UP
	?	DK156609-2500	COUPLING,CROSS	1	SN: 16269-UP
	?	DK156603-4400	BOLT	2	SN: 16269-UP
	?	DK156615-0700	WASHER,LOCK	2	SN: 16269-UP
	?	DK029200-8050	NUT	2	SN: 16269-UP
	?	DK014110-8440	WASHER,SPRING	2	SN: 16269-UP
	?	DK156603-9700	BOLT	6	SN: 16269-UP
	?	DK014110-8440	WASHER,SPRING	6	SN: 16269-UP
	?	DK156622-1100	BUSHING	4	SN: 16269-UP
	?	DK156603-7900	BOLT	1	SN: 16269-UP
	?	DK029320-8040	WASHER,SPRING	1	SN: 16269-UP

Komatsu 6D105-1M-F S/N 15149-UP parts catalog PDF

FUEL INJECTION PUMP (COUPLING) (0473) in 6D105-1M-F S/N 15149-UP. Diagram image and parts list.
