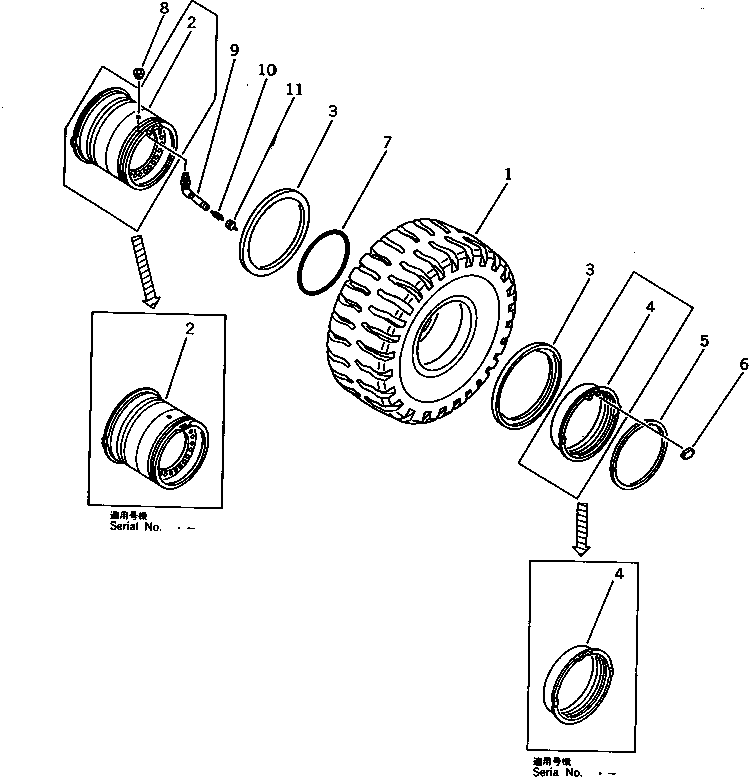

WHEEL AND TUBELESS TIRE | WD600-1 S/N 10001-UP | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
\|$$1		35/65-33-24PR-L4	-1
\|$$2		BRIDGESTONE	-1
1	426-30-11200	TIRE ASS'Y	4	SN: 10001-UP
\|$$4		TOYO	-1
1	426-30-11300	TIRE ASS'Y	4	SN: 10001-UP
\|$$6		35/65-33-24PR-L5	-1
\|$$7		TOYO	-1
1	426-X50-1110	TIRE ASS'Y	4	SN: 10001-UP
\|$$9		YOKOHAMA	-1
1	426-X50-1120	TIRE ASS'Y	4	SN: 10001-UP
\|$$11		BRIDGESTONE	-1
1	426-X50-1130	TIRE ASS'Y	4	SN: 10001-UP
\|$12	426-30-12102	RIM ASS'Y	4	SN: 10001-UP
2	426-30-12113	BASE,RIM	1	SN: .-UP
2	426-30-12112	BASE,RIM	1	SN: 10001-.
3	426-30-12120	FLANGE,SIDE	2	SN: 10001-UP
4	426-30-12131	BAND,BEAD SEAT	1	SN: .-UP
4	426-30-12130	BAND,BEAD SEAT	1	SN: 10001-.
5	426-30-12150	RING,LOCK	1	SN: 10001-UP
6	425-30-12140	DRIVER	1	SN: 10001-UP
7	426-30-12160	O-RING	1	SN: 10001-UP
\|$21	09280-10020	VALVE ASS'Y	1	SN: 10001-UP
8	09283-00000	SEAT	1	SN: 10001-UP
9	09280-10130	STEM,VALVE	1	SN: 10001-UP
10	09281-00041	CORE,VALVE	1	SN: 10001-UP
11	09282-00022	CAP	1	SN: 10001-UP
