WD600-1 S/N 10001-UP

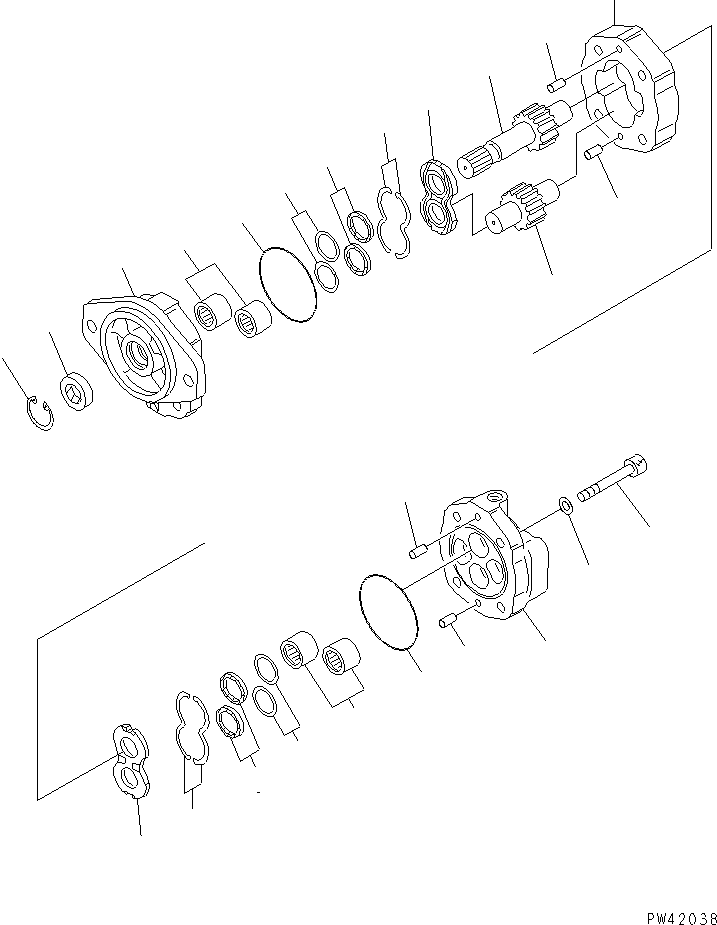

Komatsu parts book diagram for WD600-1 S/N 10001-UP: HYDRAULIC PUMP (EMERGENCY STEERING)

1 2 3 4 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 12 12 13 14 15 16

	#	Part Number	Partname	Quantity	Options	Reference
	\|$0	704-30-42110	PUMP ASS'Y,(SAM3-125)	1	SN: 10001-UP
	1	704-37-03030	BRACKET ASS'Y	1	SN: 10001-UP
	2	704-37-42010	CASE,GEAR	1	SN: 10001-UP
	3	704-37-03180	COVER	1	SN: 10001-UP
	4	704-37-42410	GEAR,DRIVE	1	SN: 10001-UP
	5	704-37-42510	GEAR,DRIVEN	1	SN: 10001-UP
	6	07435-66181	BEARING,NEEDLE	4	SN: 10001-UP
	7	704-37-03610	PLATE,SIDE	2	SN: 10001-UP
	8	704-37-03440	RING,BACK-UP	4	SN: 10001-UP
	9	704-37-03470	RING,SEAL	4	SN: 10001-UP
	10	704-37-03450	RING,BACK-UP	4	SN: 10001-UP
	11	704-37-03380	O-RING	2	SN: 10001-UP
	12	04020-01228	PIN,DOWEL	4	SN: 10001-UP
	13	01253-31640	BOLT	4	SN: 10001-UP
	14	01643-51645	WASHER	4	SN: .-UP
	14	01602-01648	WASHER,SPRING	4	SN: 10001-.
	15	704-37-03810	SEAL,OIL	1	SN: 10001-UP
	16	04065-05020	RING,SNAP	1	SN: 10001-UP

Komatsu WD600-1 S/N 10001-UP parts catalog PDF

HYDRAULIC PUMP (EMERGENCY STEERING) (4051) in WD600-1 S/N 10001-UP. Diagram image and parts list.
