WF450-3 S/N 54001-UP

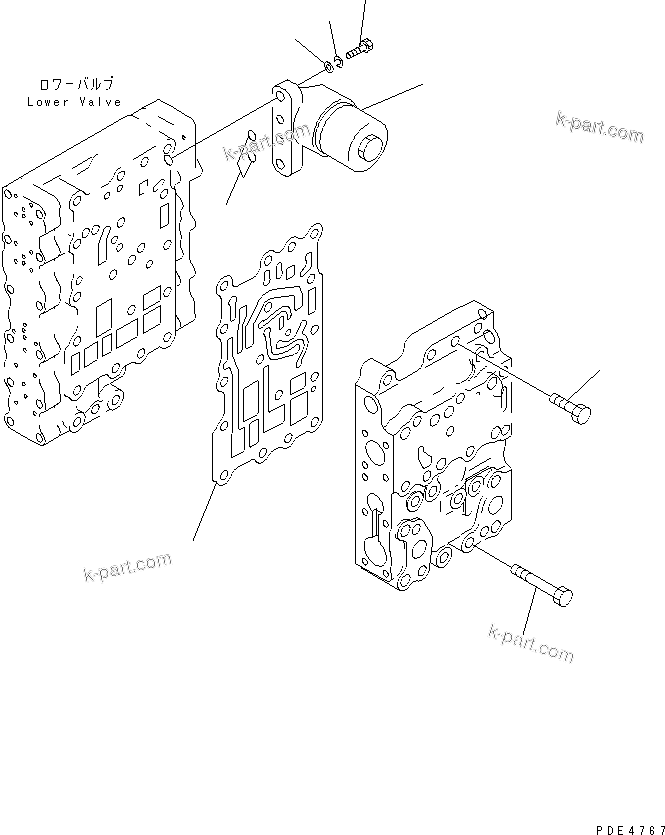

Komatsu parts book diagram for WF450-3 S/N 54001-UP: TRANSMISSION CONTROL VALVE (PILOT FILTER)

? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	714-07-10011	TRANSMISSION ASS'Y	1	SN: 54001-UP
	?		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-68A0.	-1
	?	714-07-17014	VALVE ASS'Y,TRANSMISSION	1	SN: 54001-UP
	?		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-61A0 TO F4350-63A0.	-1
	?	419-15-16660	FILTER ASS'Y,PILOT	1	SN: 54001-UP
	?	419-15-16930	ELEMENT	1	SN: 54001-UP
	?	419-15-16940	HEAD	1	SN: 54001-UP
	?	419-15-16950	O-RING	1	SN: 54001-UP
	?	419-15-16960	CASE,FILTER	1	SN: 54001-UP
	?	07000-02014	O-RING (K2)	2	SN: 54001-UP
	?	01010-81035	BOLT	2	SN: 54001-UP
	?	01642-21016	WASHER	2	SN: 54001-UP
	?	01602-01030	WASHER,SPRING	2	SN: 54001-UP
	?	714-07-17912	GASKET,UPPER VALVE (K2)	1	SN: 54001-UP
	?	01010-81070	BOLT	1	SN: 54001-UP
	?	01010-81045	BOLT	1	SN: 54001-UP

Komatsu WF450-3 S/N 54001-UP parts catalog PDF

TRANSMISSION CONTROL VALVE (PILOT FILTER) (F4350-63A0) in WF450-3 S/N 54001-UP. Diagram image and parts list.
