Diagram image 1 of 2

PC5500-6 S/N 15019

01 01 02 03 04 04 05 05 06 06 07 07 08 09 09 10 11 12 13 14 15 16 16 17 18 19 20 21 22 23 23 24 24 25 26 27 27 28 28 28 28 28 28 29 29 29 29 30 31 32 32 33 33 33 33 33 33 33 34 35 36 37 38 39 40 40 40 41 42 43 44 45 46 47 48 49 50 50 51 51 52 52 53 53 54 54 55 55 56 57 57 57 58 58 59 61 62 63 64 65 66 67 68 69 70 71 76 80 90

PC5500-6 S/N 15019

01 01 01 01 28 28 28 29 29 30 31 32 33 33 33 40 40 50 51 52 53 54 55 55 55 55 56 57 57 57 57 58 58 59 59 60 60 62 63 68 69 70 72 73 74 75 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94

#	Part Number	Partname	Quantity	Reference
01		Metering valve	10	991-0323
02		Metering valve	1	991-0091
03		Metering valve	1	991-0091
04	654 130 40	Protection cap	6
05	511 565 98	Thread pin	3
06	340 112 98	Washer	3
07	334 599 99	Nut	3
08	512 273 98	Socket	1
09	372 483 99	Union	2
10	324 672 40	Plug	1
11	372 182 99	Union	1
12	515 951 98	Union	1
13	372 627 99	Union	1
14	372 415 99	Union	1
15	372 898 99	Union	1
16	372 171 99	Union	2
17	371 952 99	Union	1
18	502 000 98	Socket	1
19	372 891 99	Union	1
20	371 861 99	Breech block	1
21	341 754 40	Ultimate pressure control	1
22	652 383 40	Shackle	2
23	511 773 98	Thread pin	8
24	507 037 98	Nut	8
25	510 319 98	Hose assy. DN 20x6200	1
26	923 354 40	Pipe assy. Ш 25	1
27	373 588 99	Union	6
28	515 028 40	Collet	32
29	515 029 40	Socket 90 ?	20
30	515 027 40	Socket, straight	8
31	006 912 98	Union	8
32	372 456 99	Union	8
33	576 160 40	Hose DN 4 Bulk ware, state length required	-2
34	635 896 40	Tube protection Bulk ware, state length required	-2
35	913 645 40	Angle	4
36	923 356 40	Plate	1
37	635 853 40	Socket 45є	4
38	307 805 99	Bolt	4
39	371 502 99	Union	1
40	334 600 99	Nut	51
41	651 255 40	Clamp	3
42	634 978 40	Cover plate	6
43	512 055 98	Thread pin	6
44	502 618 98	Half clamp	4
45	534 005 99	Weld on plate	2
46	534 004 99	Cover plate	2
47	504 926 98	Grommet	2
48	308 581 99	Bolt	4
49	500 801 98	Lock washer	4
50	006 303 98	Clamp	20
51	006 302 98	Clamp	20
52	006 301 98	Clamp	46
53	323 945 40	Thread pin	86
54	507 025 98	Nut	86
55	654 496 40	Protection cap	10
56	576 270 40	Union	10
57	502 303 98	Socket	10
58	372 509 99	Union	4
59	428 861 40	Pipe assy. Ш 16	4
60	909 206 40	Cover tube	6
61	516 700 98	Union	1
62	634 775 40	Clamp	20
63	634 774 40	Cover plate	20
64	511 885 98	Thread pin	16
65	373 775 99	Union	1
66	923 355 40	Pipe assy. Ш 25	1
67	911 133 40	Pipe assy. Ш 20	1
68	504 224 98	Half clamp	8
69	907 334 40	Hose assy. DN 16x1500	2
70	372 414 99	Union	2
71	907 378 40	Swivel union	1
72	007 171 98	Union	1
73	004 476 79	Clip	1
74	507 121 98	Thread pin	1
75	340 467 99	Washer	2
76	911 171 40	Guard plate	1
77	907 341 40	Straight swivel union	1
78	923 352 40	Pipe assy. Ш 25	1
79	517 148 98	Socket	1
80	907 377 40	Hose protection DN 16x1500	2
81	923 358 40	Plate	1
82	923 359 40	Plate	1
83	923 360 40	Plate	1
84	923 361 40	Thread pin	4
85	302 548 99	Bolt	4
86	332 336 99	Nut	4
87	307 454 99	Bolt	4
88	517 123 98	Washer	4
89	342 871 40	Square	4
90	534 001 99	Cover plate	2
91	534 002 99	Weld-on plate	2
92	308 579 99	Bolt	4
93	308 612 99	Bolt	24
94	372 625 99	Union	1

Komatsu PC5500-6 S/N 15019 parts catalog PDF

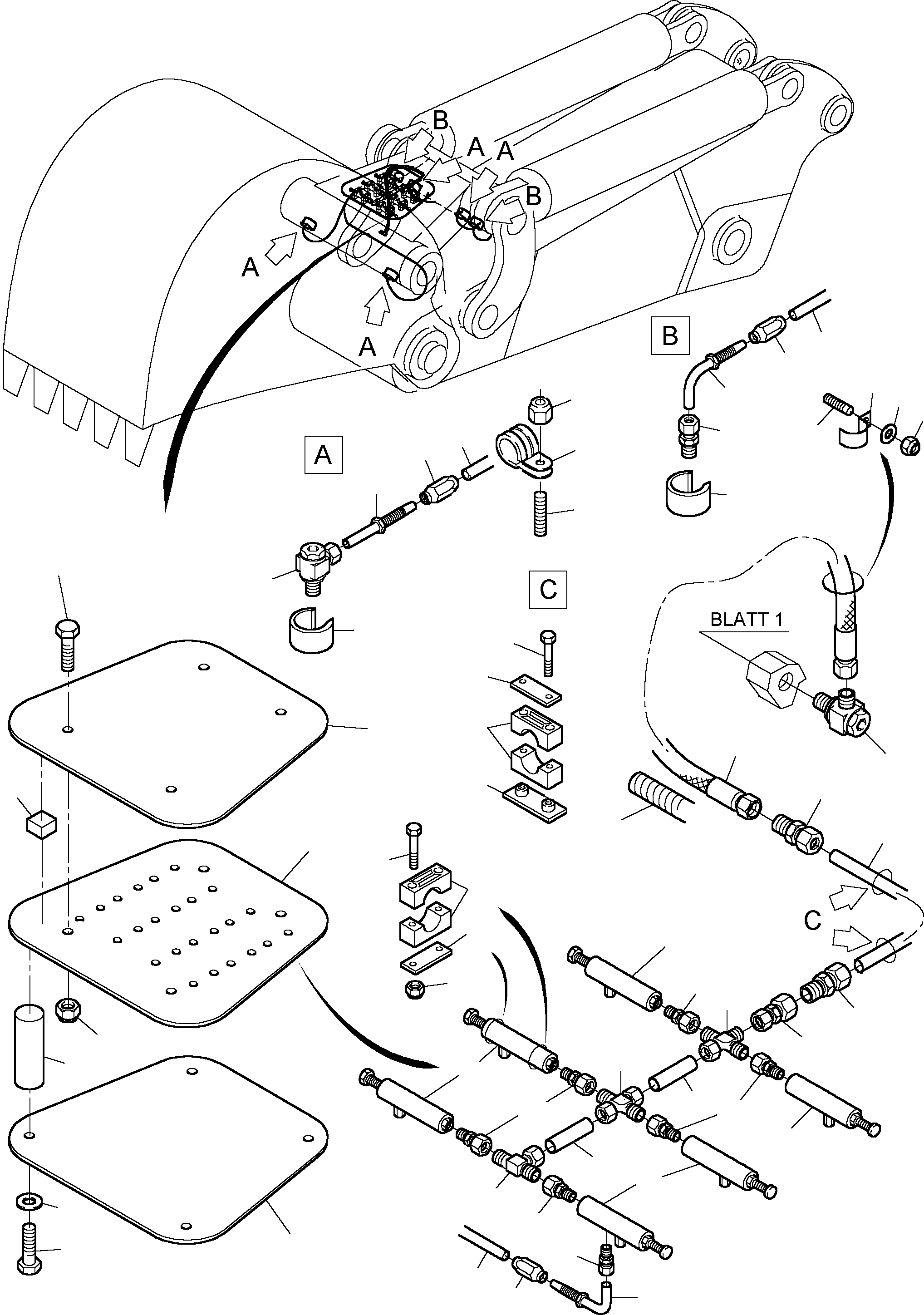

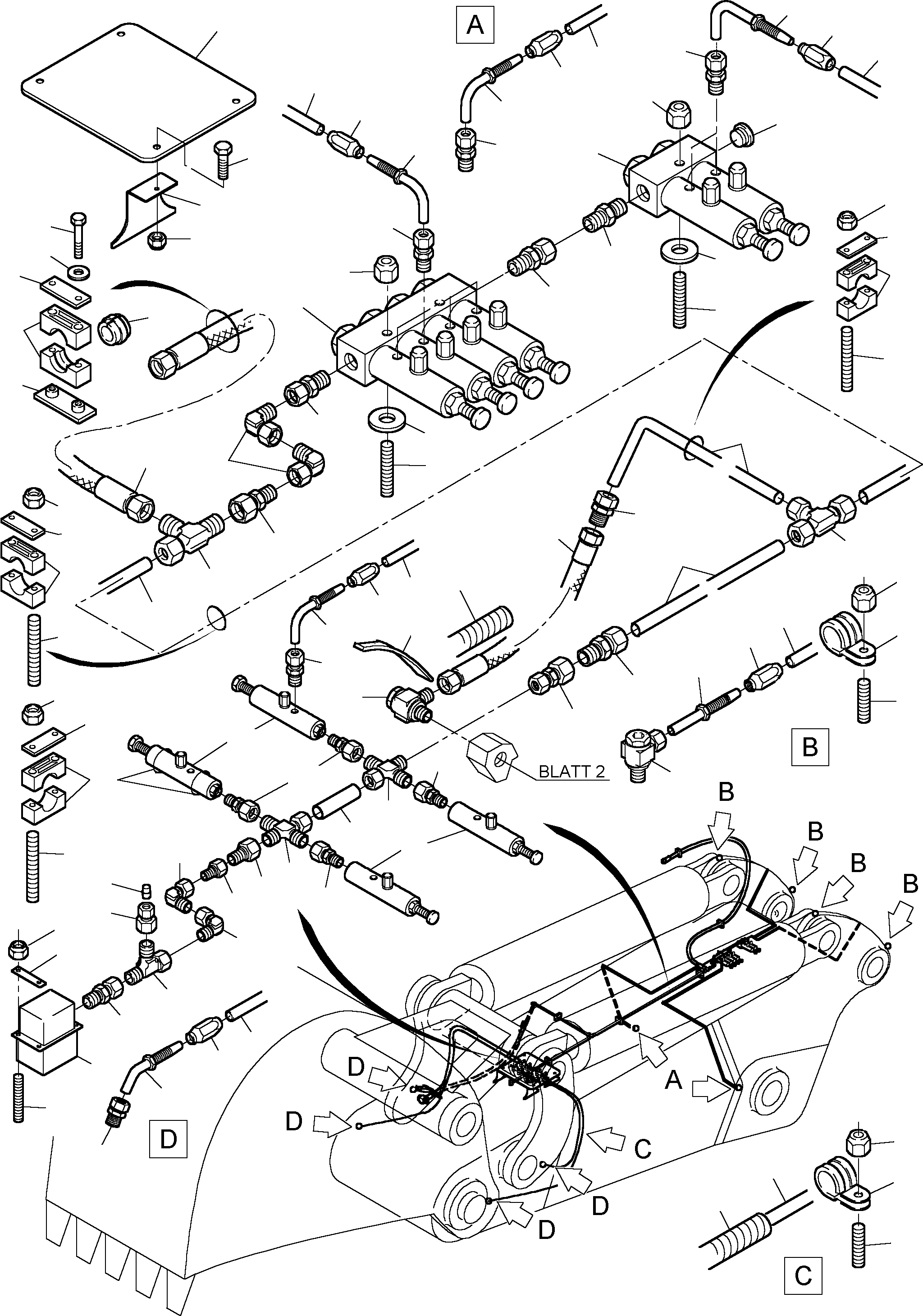

STICK - LUBRICATION 5.1 M (515-2372b) in PC5500-6 S/N 15019. Diagram image and parts list.
