Diagram image 1 of 6

PC5500-6 S/N 15019

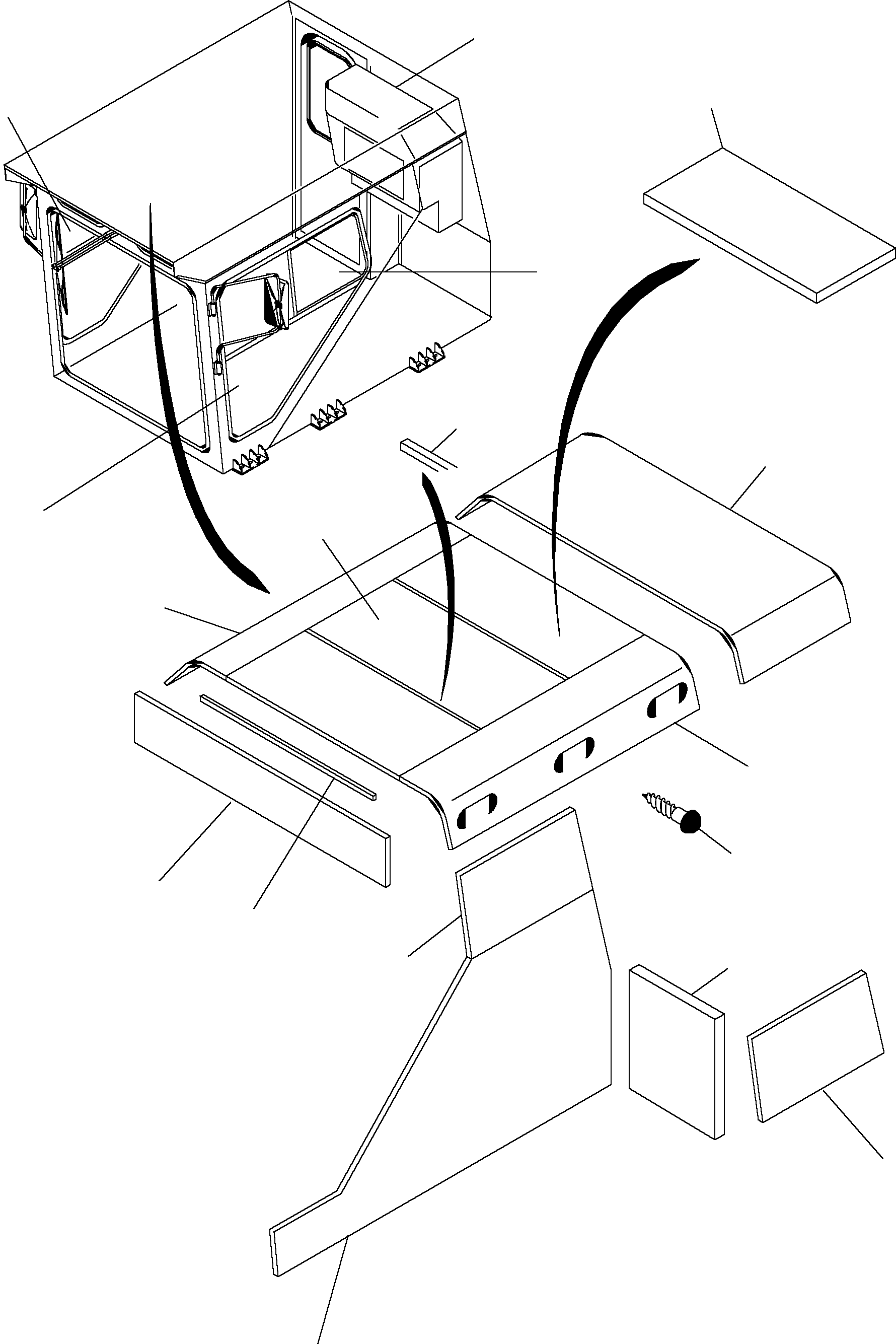

01 02 03 04 05 06 07 08 09 10 11 11 12 12 121 122 123 13 14 15 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 77 78 79 79 80 81 81 82 82 87

PC5500-6 S/N 15019

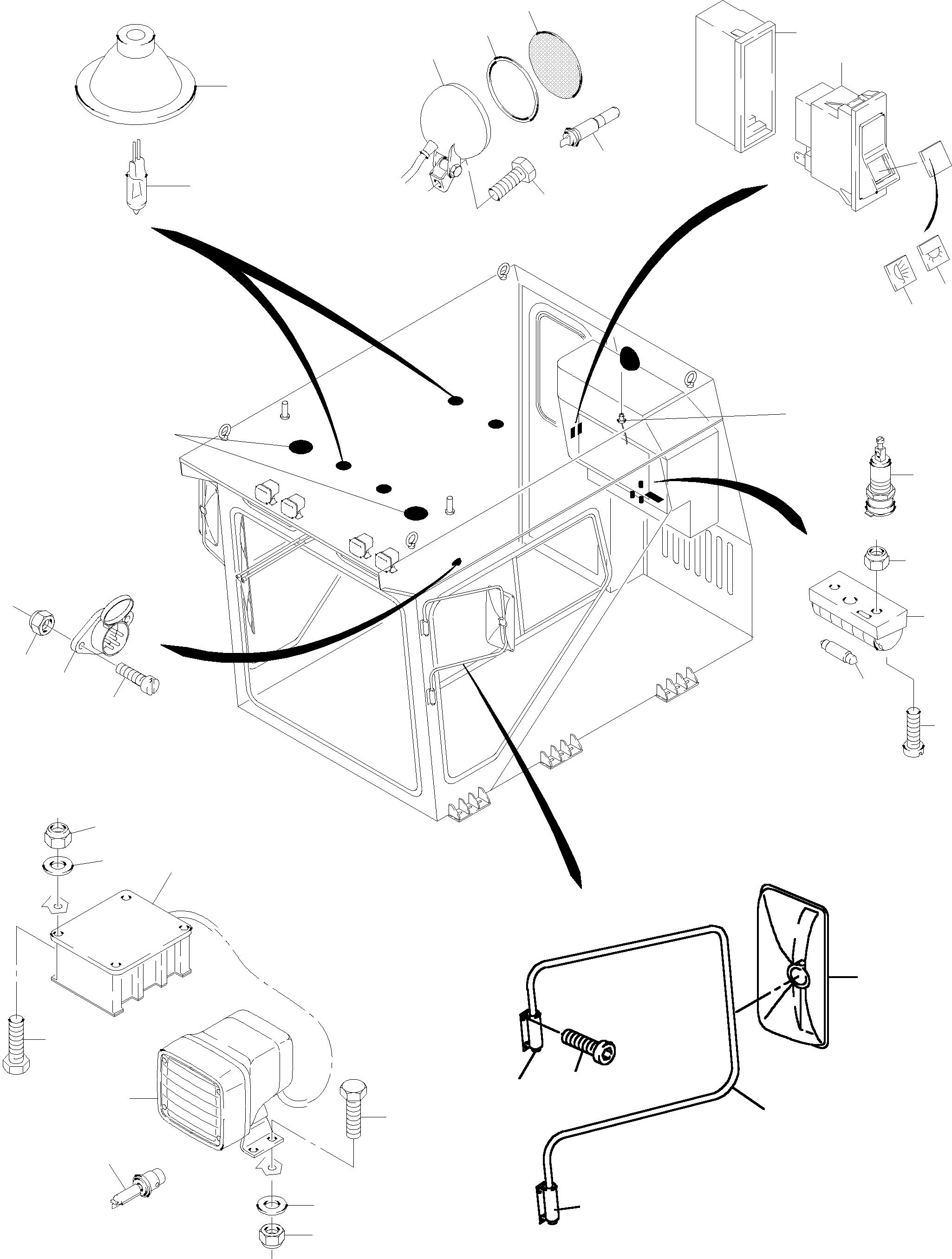

157 158 26 26 27 27 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 57 58 59 60 61 62

PC5500-6 S/N 15019

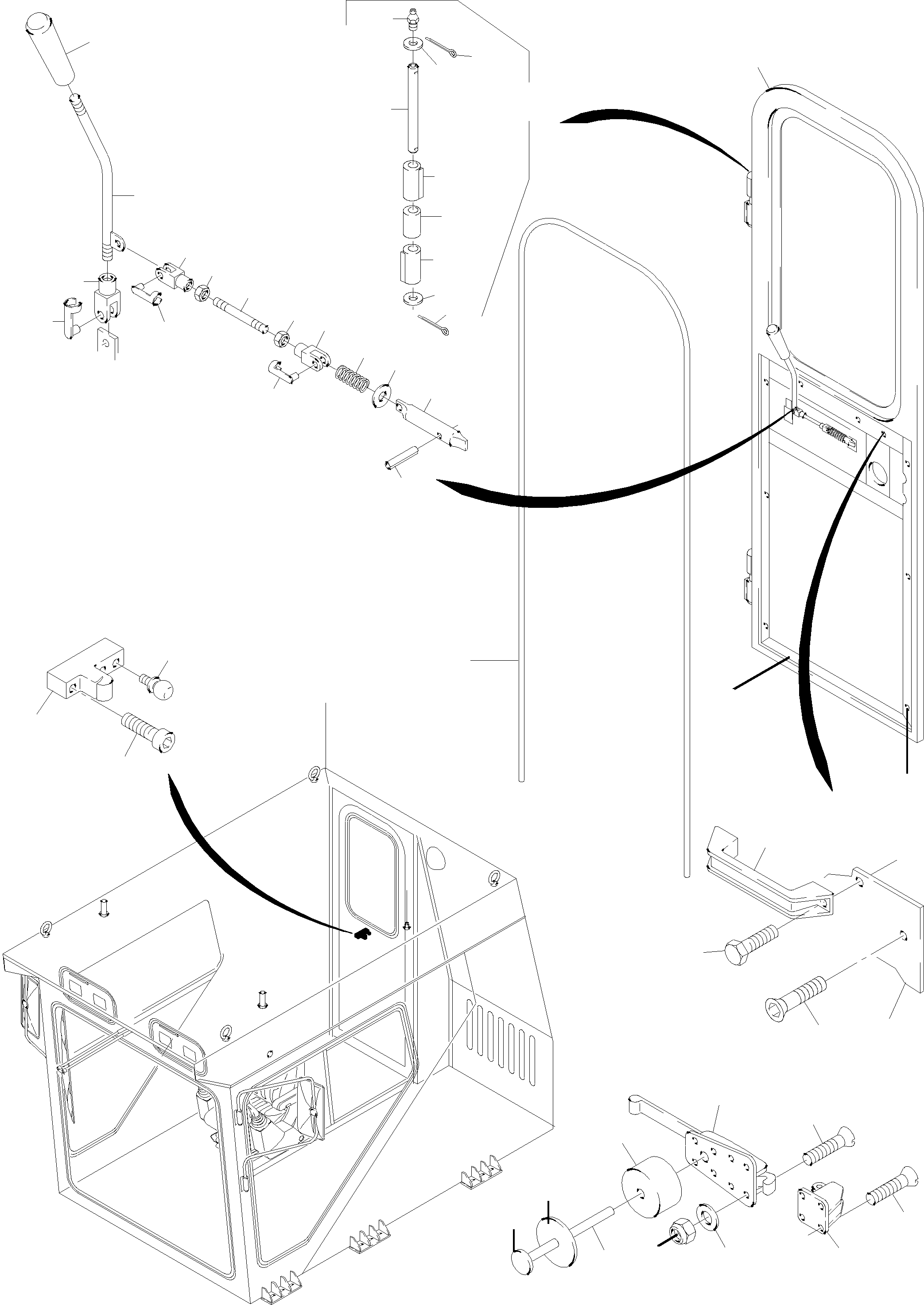

124 125 126 126 127 127 128 128 174 175 63 64 65 66 66 67 68 69 70 71 72 73 74 75 76 83

PC5500-6 S/N 15019

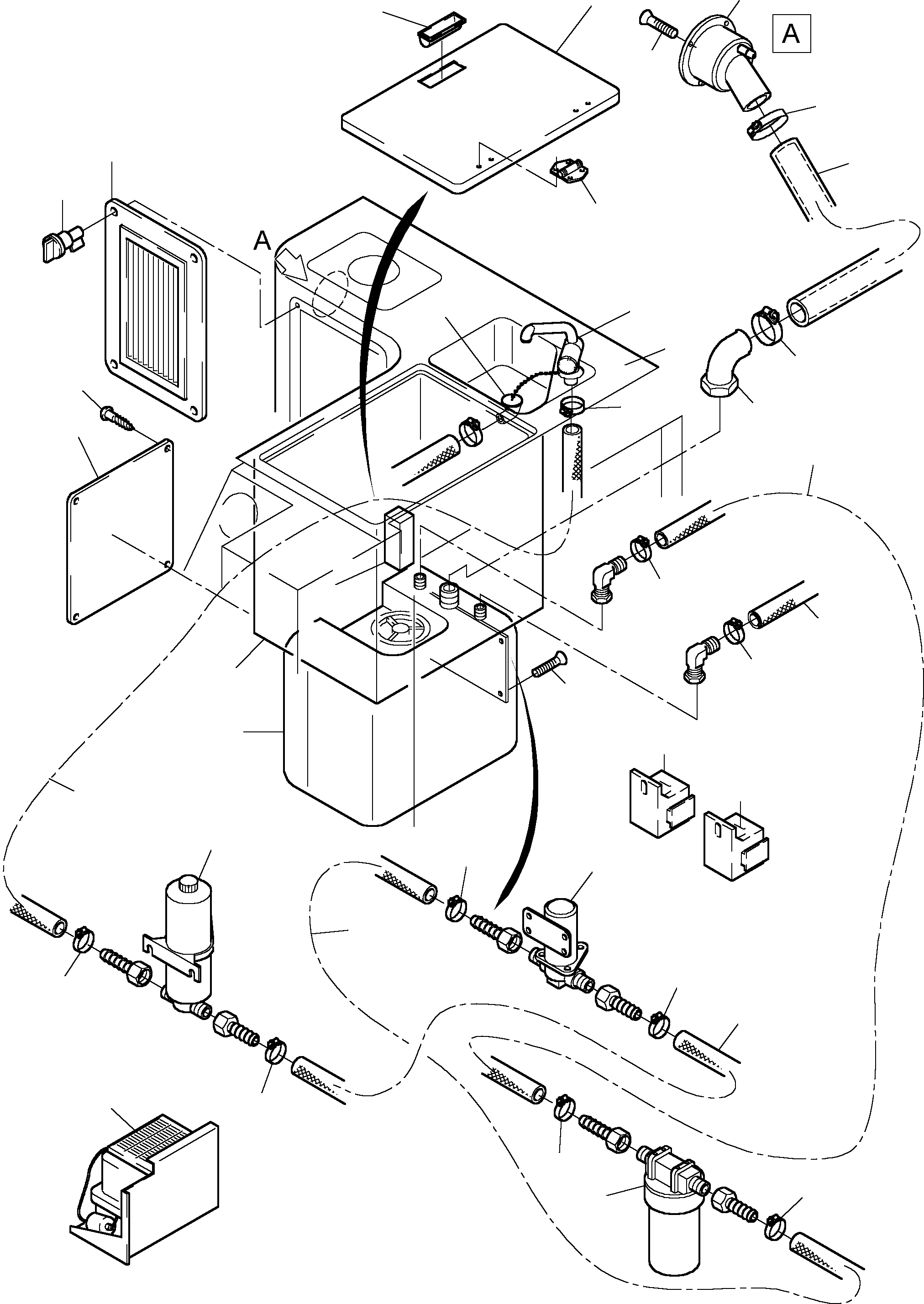

100 101 102 103 104 105 106 107 11 116 117 119 142 84 85 86 86 87 88 89 90 91 92 93 93 94 95 96 97 97 97 98 99 99 99

PC5500-6 S/N 15019

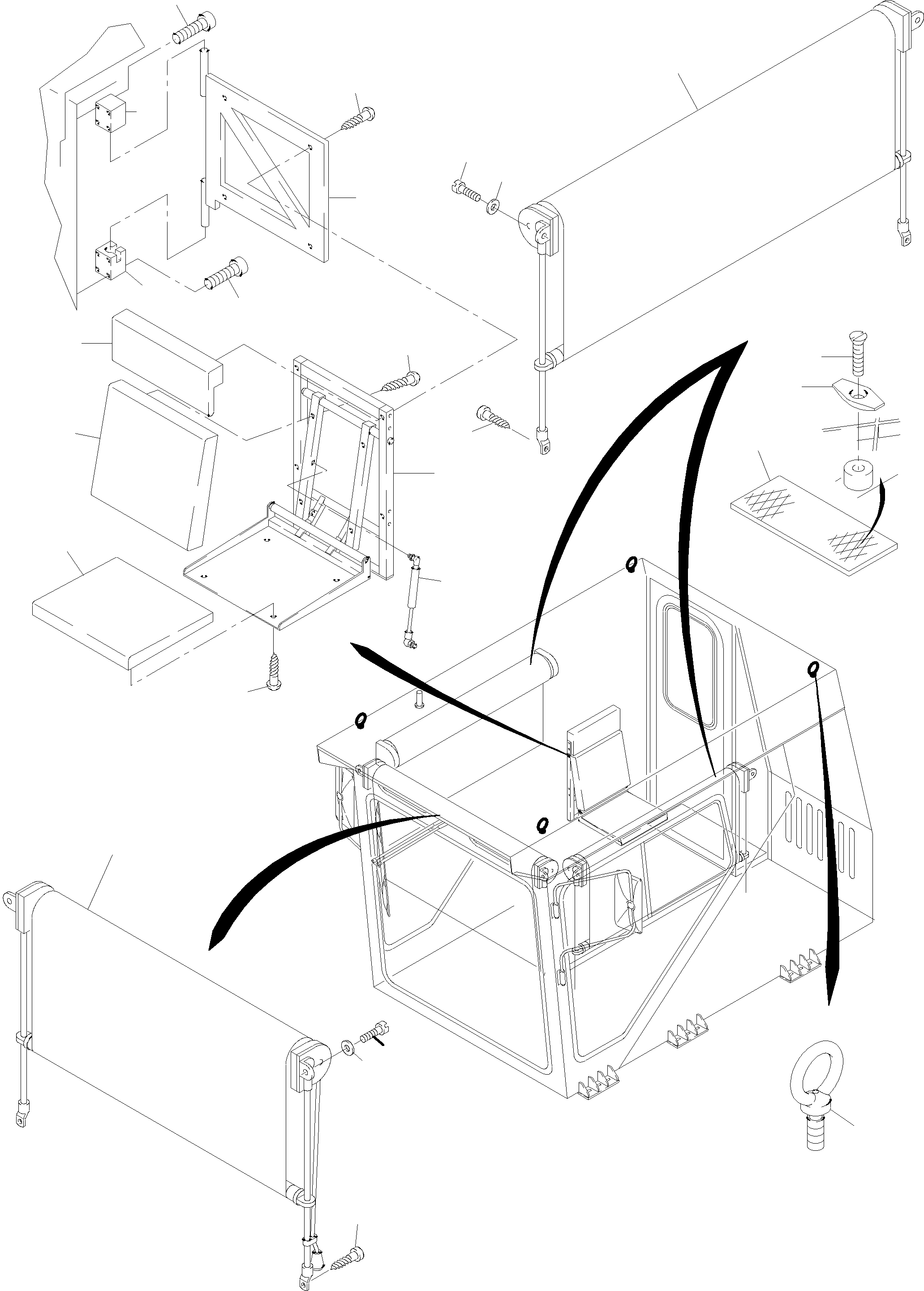

108 109 110 111 112 113 114 115 118 120 129 130 130 130 130 130 130 130 130 131 132 133 134 135 136 137 138 138 138 138 139 140 141 167 168 169 170 170 171 172 173

PC5500-6 S/N 15019

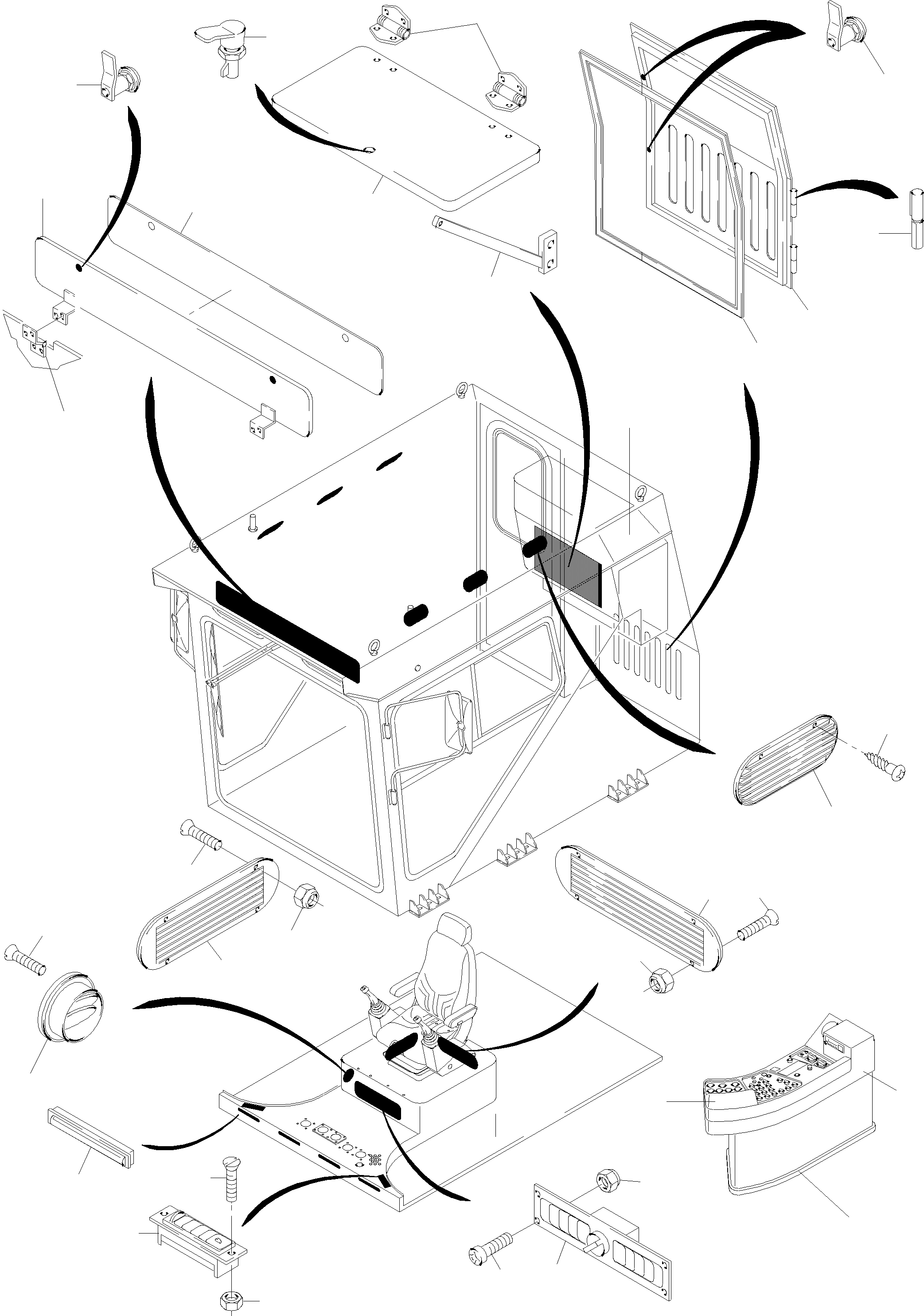

142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 160 161 162 163 164 165 166

#	Part Number	Partname	Quantity
01	919 493 40	Operator's cab assy.	1
02	769 601 73	Door assy.	1
03	390 199 40	Hinge	2
04	356 533 40	Catch	1
05	374 222 40	Detent	1
06	368 431 40	Pane	1
07	356 535 40	Compression spring	1
08	356 536 40	Threaded rod	1
09	385 708 40	Lever	1
10	345 178 99	Dowel pin	1
11	332 110 99	Nut	2
12	350 748 99	Fork end	2
13	350 742 99	Fork end	1
14	002 827 98	Pin	1
15	002 823 98	Pin	2
16	769 602 73	Handle	1
17	516 643 98	Bolt	2
18	769 603 73	Cylinder button	1
19	769 652 73	Profiled joint ca. 4300 1,5-2 Bulk ware, state length required	-2
20	319 422 99	Screw	2
21	356 130 40	Silent bloc	2
22	635 262 40	Stop	1
23	318 297 99	Bolt	4
24	635 261 40	Handle with lock	1
25	318 383 99	Bolt	4
26	340 506 99	Washer	36
27	507 025 98	Nut	36
28	769 604 73	Spacer block	1
29	769 605 73	Handle	1
30	769 606 73	Tappet	1
31	769 607 73	Door moulding	1
32	321 187 99	Fillister-head screw	11
34	769 609 73	Rod for mirror	2
35	769 610 73	Mirror	2
36	516 246 98	Screw	16
37	769 611 73	Push-toggle switch	2
38	769 612 73	Graphical symbol - spotlight	1
39	769 613 73	Graphical symbol - indoor lighting	1
40	769 614 73	Tail piece	2
41	769 615 73	Antenna	1
42	461 562 40	Extension cable	1
43	896 705 40	Pair of speakers	1
44	769 188 73	Dome lamp	4
45	769 189 73	Bulb 28V 20W	4
46	769 616 73	Dome lamp (cabinet)	1
47	516 245 98	Lamp 24V 10W	1
48	318 044 99	Screw	2
49	334 649 99	Nut	2
50	769 617 73	Socket installation	3
51	057 295 40	Socket	1
52	318 180 99	Screw	2
53	507 036 98	Nut	2
54	896 745 40	Spread beam headlamp	4
55	769 618 73	Lamp	4
56	769 619 73	Voltage multiplier 24V	4
57	307 732 99	Bolt	32
58	634 009 40	Spotlight	1
59	507 383 99	Halogen lamp	1
60	769 155 73	Seal	1
61	769 156 73	Pane, white	1
62	307 752 99	Bolt	1
63	769 620 73	Seat frame	1
64	769 621 73	Swing trestle top	1
65	769 622 73	Swing trestle lower	1
66	319 350 99	Bolt	7
67	906 746 40	Co-Driver's seat	1
68	792 845 73	Back extension	1
69	792 846 73	Back cushion	1
70	792 847 73	Seat upholstery	1
71	792 848 73	Shock absorber assy.	1
72	769 628 73	Window shade	1
73	769 629 73	Window shade	2
74	414 327 40	Grating	1
75	317 318 40	Wing nut, plastic	4
76	318 391 99	Bolt	4
77	350 562 99	Grease nipple	1
78	621 108 40	Pin	1
79	390 600 40	Bushing	2
80	390 601 40	Bushing	1
81	340 612 99	Washer	2
82	342 061 99	Cotter pin	2
83	906 783 40	Eyebolt	4
84	769 630 73	Door	1
85	769 631 73	Band roller	2
86	769 632 73	Sash lock	4
87	769 651 73	Profiled joint Bulk ware, state length required	-2
88	769 633 73	Air intake	7
89	769 634 73	Round nozzle	2
90	769 635 73	Hot air jet	4
91	769 636 73	Adjustment	1
92	769 637 73	Hot air jet, long	2
93	769 638 73	Air intake	2
94	516 247 98	Tapping screw	24
95	516 243 98	Bolt	4
96	332 201 99	Nut	4
97	318 293 99	Bolt	18
98	516 244 98	Screw	6
99	334 649 99	Nut	24
100	770 070 73	Cap	4
101	770 071 73	Hinge for upper cupboard door	2
102	769 640 73	Upper cupboard door	1
103	770 072 73	Cupboard door - catch	1
104	770 073 73	Snap lock with handle	1
105	769 641 73	Hinge - light flap	2
106	769 642 73	Light flap	1
107	769 643 73	Cover	1
108	769 644 73	Maintenance cover	1
109	769 645 73	Ventilation	1
110	770 074 73	Spagnolet for ventilation	4
111	769 646 73	Ice box door	1
112	770 075 73	Handle - ice-box door	1
113	770 071 73	Hinge - ice-box door	2
114	770 076 73	Water tap	1
115	769 647 73	Cooler assy.	1
116	769 648 73	Operation panel - base	1
117	769 649 73	Operation panel - upper	1
118	769 650 73	Ice-box assy.	1
119	770 105 73	Operation panel	1
120	770 078 73	Water tank	1
121	770 079 73	Door, steel construction	1
122	770 080 73	Washer	1
123	770 081 73	Blind rivet-nut	15
124	319 147 99	Bolt	1
125	320 431 99	Bolt	12
126	307 693 99	Bolt	6
127	340 500 99	Washer	6
128	318 574 99	Screw	6
129	374 923 99	Clamp	2
130	374 925 99	Clamp	10
131	504 245 98	Bolt	4
132	770 082 73	Pump 24V	1
133	770 084 73	Ballance of pressure tank (water)	1
134	770 083 73	Filter assy.	1
135	770 085 73	Element	1
136	770 086 73	Drain pipe with chain and seal	1
137	770 087 73	Hose 10x3 clear Bulk ware, state length required	-2
138	770 088 73	Hose 19x4 clear Bulk ware, state length required	-2
139	770 089 73	Thermostat	1
140	770 090 73	Plate with wash basin	1
141	511 260 98	Bolt	4
142	770 091 73	Top cabinet	1
143	770 092 73	Wall covering r.h.	1
144	770 093 73	Insulation - roof and outside wall Bulk ware, state length required	-2
145	770 094 73	Insulation - door Bulk ware, state length required	-2
146	770 095 73	Clip	90
147	770 096 73	Roof moulding rear	1
148	770 097 73	Roof moulding center	1
149	770 098 73	Roof moulding l.h.	1
150	770 099 73	Roof moulding r.h.	1
151	770 100 73	Roof moulding front	1
152	770 101 73	Wall covering l.h.	1
153	770 102 73	Wall covering r.h.	1
154	770 103 73	Profile holder Bulk ware, state length required	-2
155	516 247 98	Screw	50
156	770 104 73	Cover profile Bulk ware, state length required	-2
157	770 378 73	Retainer top with cable	2
158	770 377 73	Retainer lower	2
160	770 443 73	Sunvisor l.h.	1
161	510 746 98	Resilient sleeve	22
162	513 928 98	Bolt	22
163	770 444 73	Sunvisor rear-l.h.	1
164	770 445 73	Catch	6
165	770 446 73	Sunvisor r.h.	1
166	770 447 73	Sunvisor rear-r.h.	1
167	792 550 73	Water filler neck	1
168	502 245 98	Screw	4
169	792 551 73	Hose Bulk ware, state length required	-2
170	792 552 73	Clamp	2
171	792 655 73	Relay	1
172	792 656 73	Fuse	1
173	792 657 73	Socket	1
174	318 353 99	Bolt	4
175	319 129 99	Bolt	6
