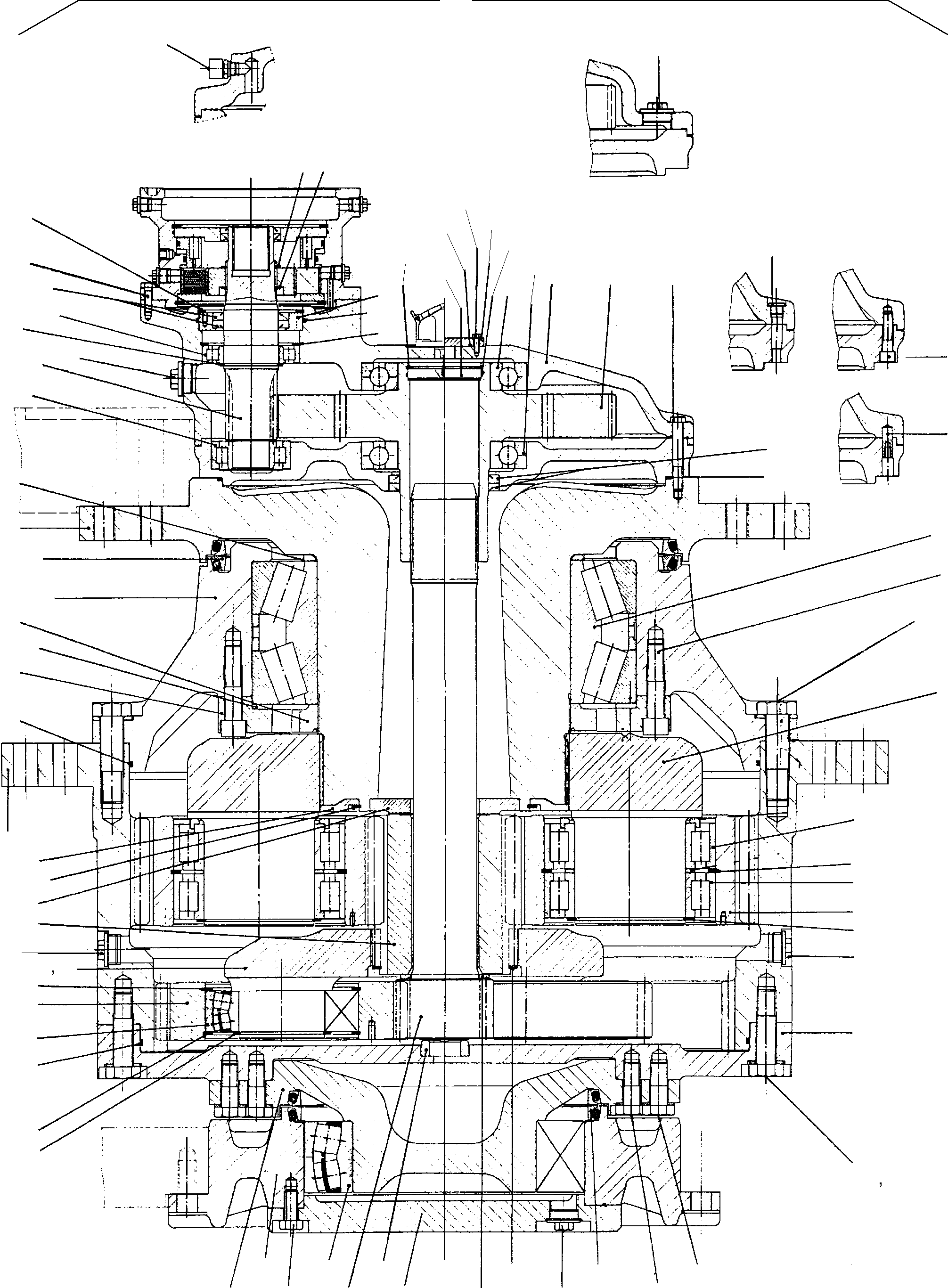

DRIVE GEAR BOX | PC5500-6 S/N 15019 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Reference
01	918 895 40	Drive gear box	1
\|$$2		Spring pressure disk brake	2	090-0738a
02	780 868 73	Spindle	1
03	780 869 73	Ring gear	1
04	780 870 73	Support ring	1
05	780 871 73	Cover	1
06	793 103 73	Planet carrier	1
06	793 113 73	Planet carrier only for repair	1
\|$$9			-2
07	780 873 73	Planet carrier	1
08	768 276 73	Planet gear	4
09	780 875 73	Planet gear	3
10	780 876 73	Sun gear	1
11	780 877 73	Sun gear shaft	1
12	780 878 73	Bearing cover	1
13	780 879 73	Spindle	1
15	780 880 73	Disc	1
16	780 881 73	Spacer ring	1
17	780 882 73	Disc	1
18	780 883 73	Disc	1
19	780 884 73	Bearing ring	1
20	780 885 73	Disc	1
21	780 886 73	Shaft nut	1
22	780 887 73	Spur wheel	1
23	780 888 73	Input shaft	2
25	780 889 73	Seal ring	2
26	513 517 98	Taper pin	2
27	321 597 99	Bolt	6
28	780 890 73	Ring	1
30	763 747 73	Cover	1
31	780 892 73	Thrust washer	1
33	654 675 40	Tapered roller bearing	1
34	513 518 98	Spherical roller bearing	1
35	362 508 99	Spherical roller bearing	3
36	768 277 73	Cylindrical roller bearing	4
37	360 580 99	Ball bearing	2
38	361 102 99	Cylindrical roller bearing	2
39	508 922 98	Cylindrical roller bearing	2
41	763 724 73	Face seal	1
42	793 104 73	Face seal	1
43	511 896 98	Radial shaft seal ring	2
44	513 520 98	Radial shaft seal ring	4
46	763 727 73	Chord ca. 3,09 m lg. Bulk ware, state length required	-2
47	763 727 73	Chord ca. 3,2 m lg. Bulk ware, state length required	-2
48	924 217 44	O-ring	1
49	763 727 73	Chord ca. 2,28 m lg. Bulk ware, state length required	-2
50	971 154	O-ring	2
53	342 702 99	Circlip	6
54	342 706 99	Circlip	8
55	342 678 99	Circlip	3
56	342 497 99	Circlip	4
57	342 603 99	Circlip	1
58	342 707 99	Circlip	1
59	342 674 99	Circlip	1
60	342 682 99	Circlip	2
61	342 684 99	Circlip	2
62	342 666 99	Circlip	4
63	342 668 99	Circlip	2
64	513 521 98	Bolt	36
65	513 522 98	Bolt	27
66	308 424 99	Bolt	16
67	513 523 98	Bolt	36
68	513 524 98	Bolt	48
69	307 600 99	Bolt	24
70	307 885 99	Bolt	12
71	313 126 99	Plug	10
72	339 967 99	Seal ring	10
73	768 535 73	Breather with dipstick	1
74	340 294 99	Seal ring	1
77	313 458 99	Plug	2
78	255 057 40	HV-washer	36
79	255 056 40	HV-washer	27
80	316 215 99	HV-washer	48
81	806 590 73	Cover	1
82	082 821	O-ring	1
83	307 754 99	Bolt	4
84	793 107 73	Planet carrier assy consist of Pic-No. 06, 08 16, 36, 54, 56 u. 58	1
85	793 110 73	Planet carrier assy 07,09,10,31 35, 53, 55, 57	1
90	763 797 73	Support ring	1
\|$$80	793 108 73	Disc assy with springs	1
\|$$81	793 109 73	Seal kit brake	1
