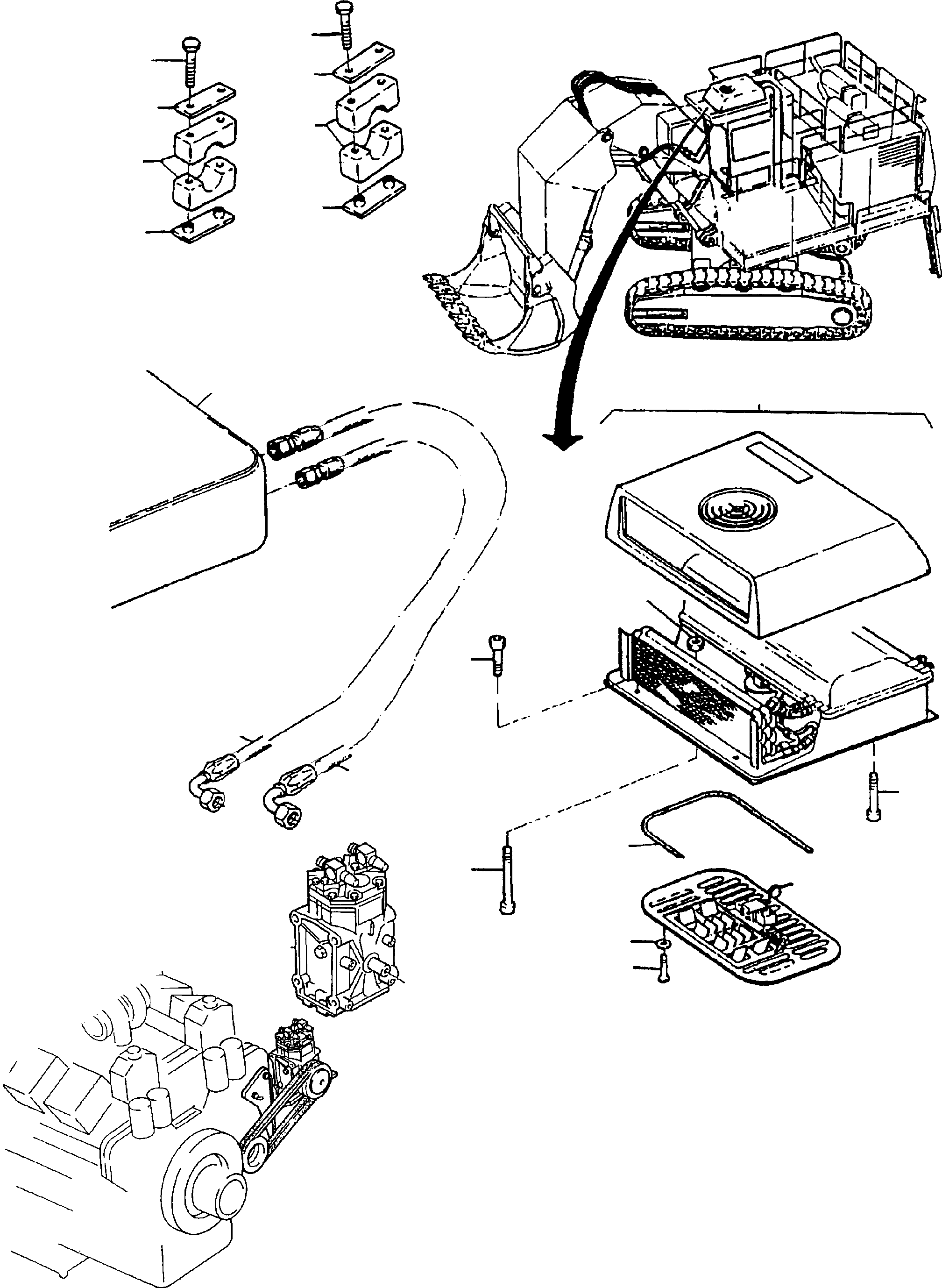

Komatsu parts book diagram for H455S S/N 15005: AIR CONDITION ARR.

01 01 02 03 06 07 08 09 10 11 12 17 18 19 19 20 20 21 21

	#	Part Number	Partname	Quantity	Options	Reference
	01		Air conditioning unit	1	InternBDB: 635 921 40 \| InternKon: 652 013 40 / 1	090-6304d
	02	635 523 40	Hose assy. DN 16 x 15000	1	InternBDB: Aeroquip GH 134-12 \| InternKon: 674 969 40 / 2
	03	635 522 40	Hose assy. DN 10 x 15000	1	InternBDB: Aeroquip GH 134-8 \| InternKon: 674 969 40 / 1
	06	320 342 99	Screw	6	InternBDB: M8x100 /6912 \| InternKon: 652 013 40 / 2
	07	319 423 99	Screw	3	InternBDB: M8x50 /912 \| InternKon: 652 013 40 / 3
	08	319 140 99	Screw	3	InternBDB: M8x20 /912 \| InternKon: 652 013 40 / 4
	09	332 111 99	Nut	18	InternBDB: M 8 /934 \| InternKon: 652 013 40 / 5
	10	318 576 99	Screw	12	InternBDB: M5x10 /964 \| InternKon: 652 013 40 / 6
	11	340 461 99	Washer	12	InternBDB: 5,3 /125 \| InternKon: 652 013 40 / 7
	12	166 575 40	Profiled joint ca. 4000 lg. Bulk ware, state length required	-2	InternKon: 652 013 40 / 8
	17	502 682 98	Clamp	5	InternBDB: S-2-G-28 /3015
	18	504 817 98	Clamp	5	InternBDB: S-2-G-20
	19	534 002 99	Weld on plate	5	InternBDB: S-AP-A-2
	20	534 001 99	Cover plate	5	InternBDB: S-DP-A-2
	21	308 579 99	Bolt	10	InternBDB: M10x60 /931
