PC190NLC-8 S/N K50001-UP

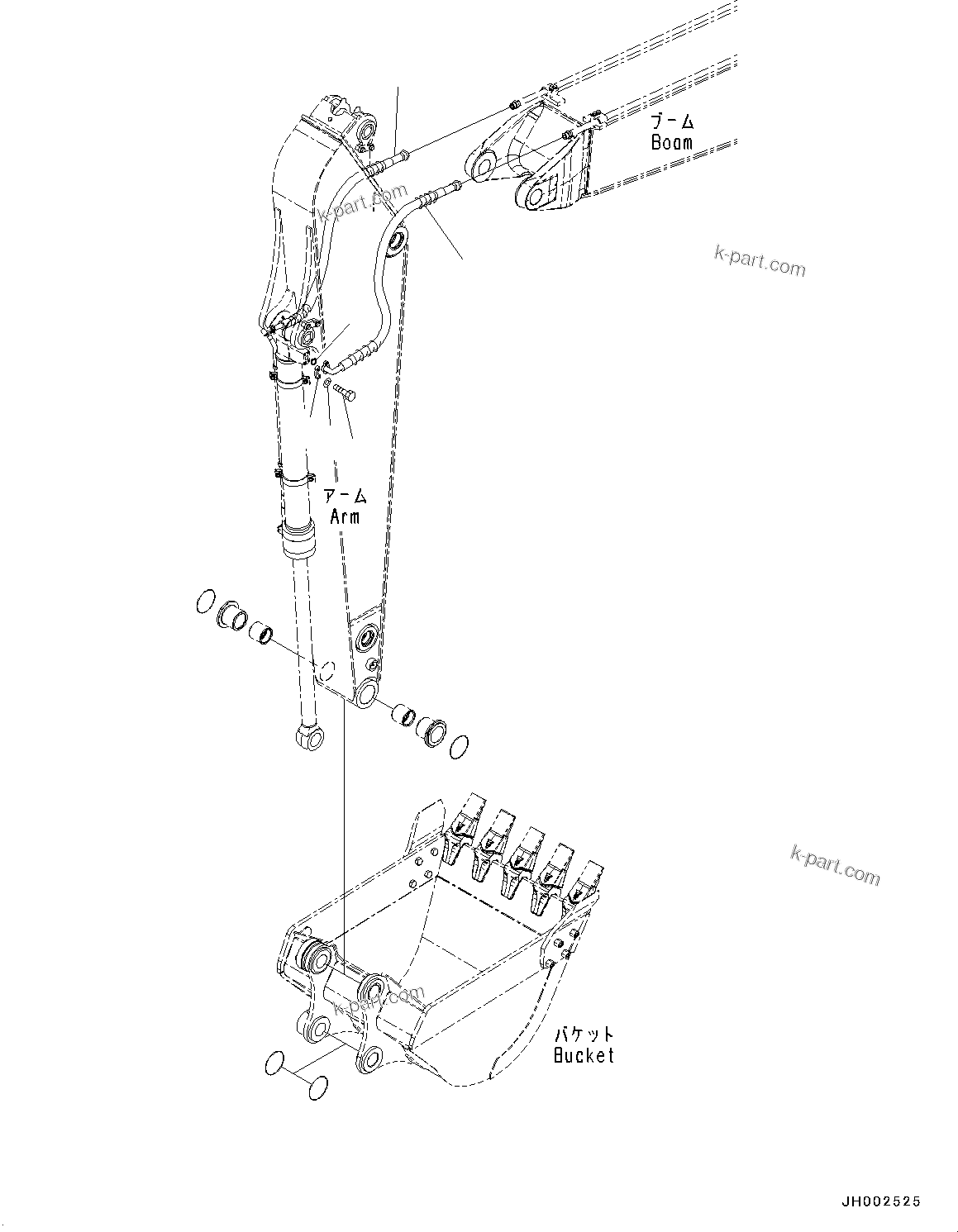

Komatsu parts book diagram for PC190NLC-8 S/N K50001-UP: ARM, 2.25M, BUCKET CYLINDER HOSE

? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	21K-62-74520	Hose	1	SN: K50001-UP
	?	21K-62-75710	Hose	1	SN: K50001-UP
	?	07000-13025	O-Ring	1	SN: K50001-UP
	?	07371-30640	Flange	2	SN: K50001-UP
	?	07372-21035	Bolt	4	SN: K50001-UP
	?	01643-51032	Washer	4	SN: K50001-UP

Komatsu PC190NLC-8 S/N K50001-UP parts catalog PDF

ARM, 2.25M, BUCKET CYLINDER HOSE (T1200-003001) in PC190NLC-8 S/N K50001-UP. Diagram image and parts list.
