H135S S/N 61064

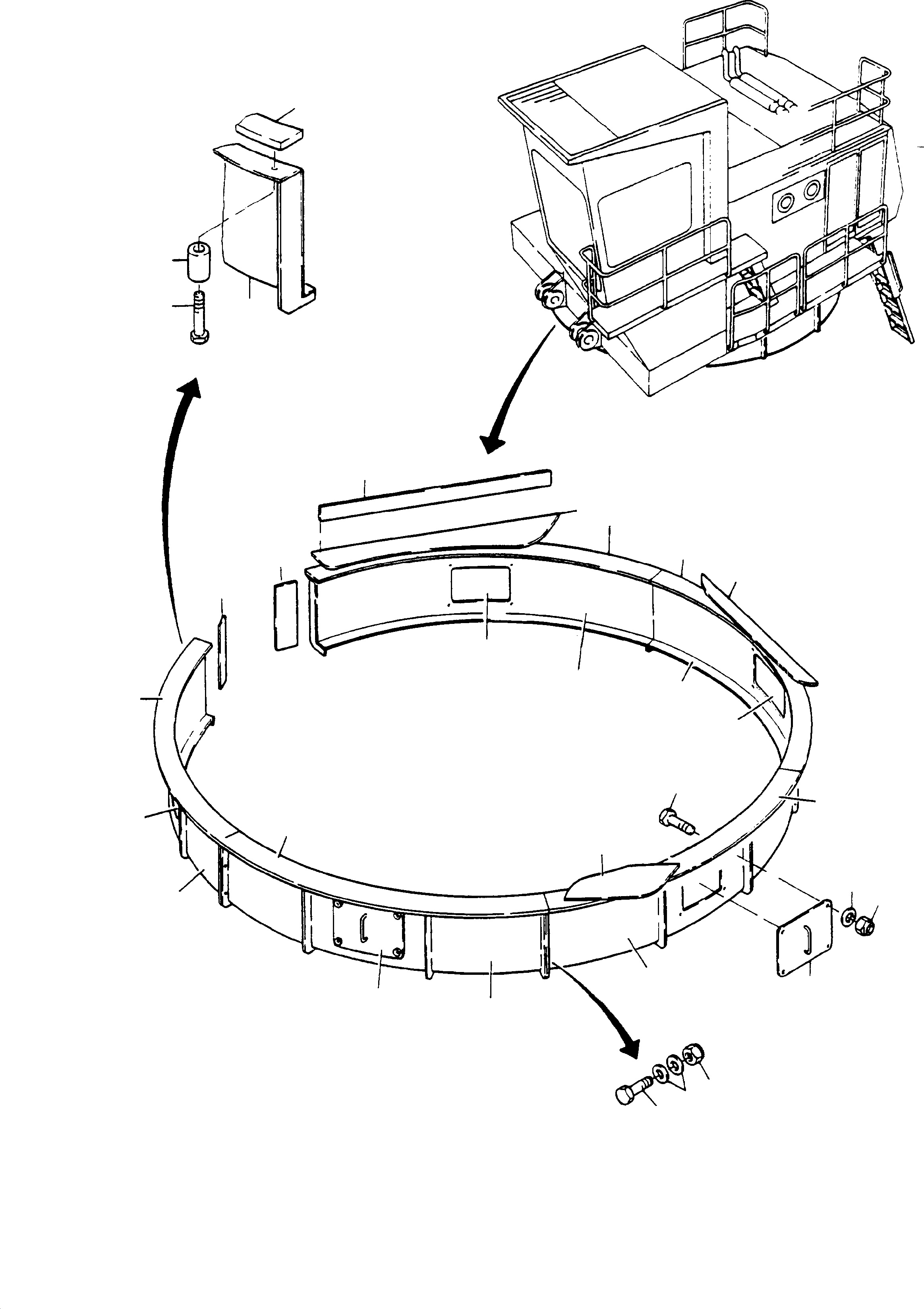

Komatsu parts book diagram for H135S S/N 61064: SLEW RING PROTECTION

01 01 01 01 01 02 02 02 02 02 03 03 03 03 04 05 06 07 08 09 09 10 11 11 12 12 13 14 15 16

	#	Part Number	Partname	Quantity	Options	Reference
	01	594 119 40	Segment	4	InternKon: 619 910 40 / 1
	02	574 682 40	Cover	5	InternKon: 619 910 40 / 2
	03	594 121 40	Plate	4	InternKon: 619 910 40 / 3
	04	594 127 40	Plate	1	InternKon: 619 910 40 / 6
	05	594 128 40	Plate	1	InternKon: 619 910 40 / 7
	06	594 129 40	Plate	1	InternKon: 619 910 40 / 8
	07	594 130 40	Plate	1	InternKon: 619 910 40 / 14
	08	510 744 98	Resilient sleeve 13/25x32	19	InternKon: 619 910 40 / 11
	09	307 804 99	Bolt	32	InternBDB: M12x30 /933 \| InternKon: 619 910 40 / 9
	10	308 603 99	Bolt	19	InternBDB: M12x45 /931 \| InternKon: 619 910 40 / 10
	11	340 467 99	Washer	44	InternBDB: 13 /125 \| InternKon: 619 910 40 / 12
	12	334 600 99	Nut	32	InternBDB: M 12 /985 \| InternKon: 619 910 40 / 13
	13	594 131 40	Cover plate	1	InternKon: 619 910 40 / 4
	14	619 909 40	Cover plate	1	InternKon: 619 910 40 / 5
	15	623 843 40	Segment	1	InternKon: 619 910 40 / 15
	16	623 841 40	Plate	1	InternKon: 619 910 40 / 16

Komatsu H135S S/N 61064 parts catalog PDF

SLEW RING PROTECTION (116-1123) in H135S S/N 61064. Diagram image and parts list.
