PC75R-2 USA S/N 22E5200001-Up

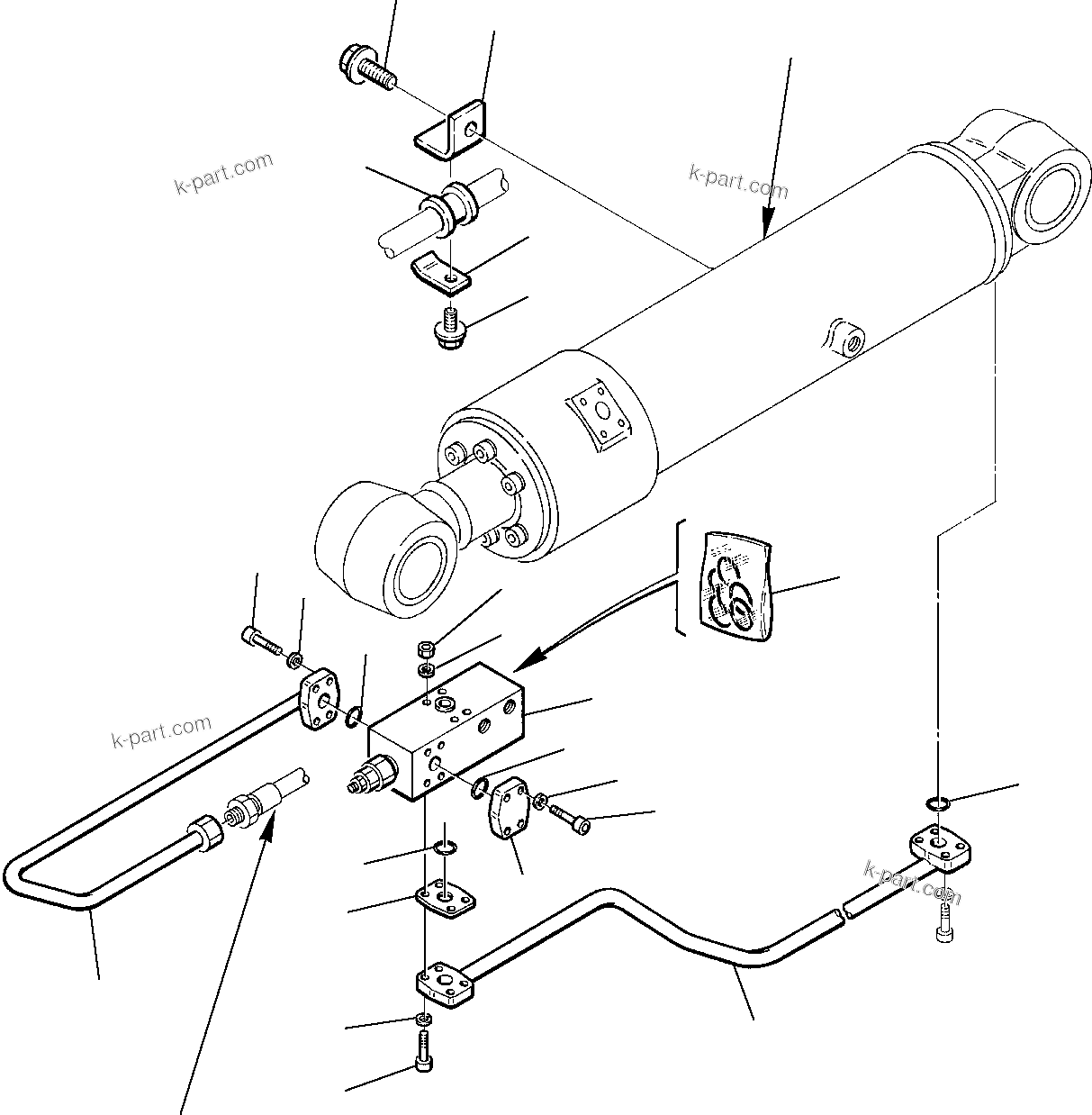

Komatsu parts book diagram for PC75R-2 USA S/N 22E5200001-Up: HYDRAULIC PIPING (BOOM CYLINDER LINE) (SAFETY VALVE)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	22E-62-12580	PIPE	1	SN: 22E5200001-UP
	?	21D-09-69110	O-RING	4	SN: 22E5200001-UP
	?	01252-40830	SCREW	8	SN: 22E5200001-UP
	?	21D-09-73690	SPRING WASHER	12	SN: 22E5200001-UP
	?	01252-40825	SCREW	4	SN: 22E5200001-UP
	?	21D-62-15540	PLATE	1	SN: 22E5200001-UP
	?	01643-30823	WASHER	4	SN: 22E5200001-UP
	?	21D-09-24180	NUT	4	SN: 22E5200001-UP
	?	21D-62-15530	FLANGE	1	SN: 22E5200001-UP
	?	21D-60-17230	VALVE, ASSY.	1	SN: 22E5200001-UP
	?	21D-60-17330	KIT, GASKET	1	SN: 22E5200001-UP
	?	22E-62-12570	PIPE	1	SN: 22E5200001-UP
	?	21D-62-11110	CLAMP	1	SN: 22E5200001-UP
	?	01435-01020	SCREW	1	SN: 22E5200001-UP
	?	22E-62-11540	CLAMP	1	SN: 22E5200001-UP
	?	01435-01025	BOLT	1	SN: 22E5200001-UP
	?	21D-62-11130	RING	1	SN: 22E5200001-UP
	?		SEE FIG. 6700	-1		6700
	?		SEE FIG. 7110	-1		7110

Komatsu PC75R-2 USA S/N 22E5200001-Up parts catalog PDF

HYDRAULIC PIPING (BOOM CYLINDER LINE) (SAFETY VALVE) (6705) in PC75R-2 USA S/N 22E5200001-Up. Diagram image and parts list.
