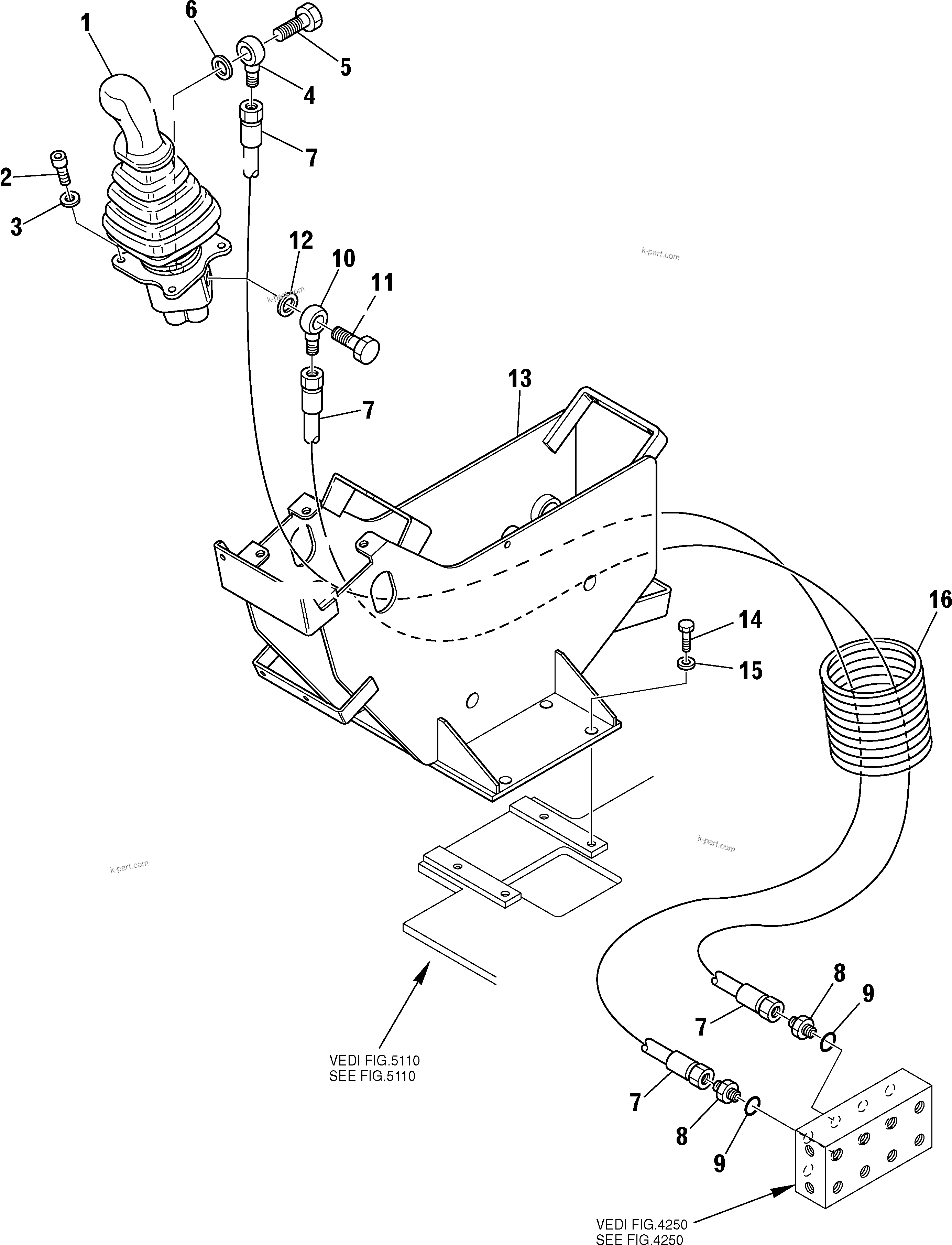

Komatsu parts book diagram for PC75R-2 USA S/N 22E5200001-Up: HYDRAULIC PIPING (BOOM AND BUCKET PPC VALVE LINE) (1/2)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	702-16-09100	PPC VALVE, R.H., ASSY.	1	SN: 22E5200001-UP
	?	01252-40820	SCREW	4	SN: 22E5200001-UP
	?	21D-09-72630	WASHER	4	SN: 22E5200001-UP
	?	21D-09-66470	UNION	1	SN: 22E5200001-UP
	?	22E-62-12450	UNION	1	SN: 22E5200001-UP
	?	21D-09-73150	WASHER	1	SN: 22E5200001-UP
	?	21D-09-97250	HOSE	2	SN: 22E5200001-UP
	?	21D-09-51180	UNION	2	SN: 22E5200001-UP
	?	21D-09-69960	O-RING	1	SN: 22E5200001-UP
	?	21D-09-66480	UNION	1	SN: 22E5200001-UP
	?	21D-09-66910	UNION	1	SN: 22E5200001-UP
	?	21D-09-73180	WASHER	1	SN: 22E5200001-UP
	?	22E-43-11610	SUPPORT	1	SN: 22E5200001-UP
	?	01010-51020	BOLT	4	SN: 22E5200001-UP
	?	21D-09-74480	SPRING WASHER	4	SN: 22E5200001-UP
	?	22E-54-11470	PROTECTION	1	SN: 22E5200001-UP
	?		SEE FIG. 4250	-1		4250
	?		SEE FIG. 5110	-1		5110

Komatsu PC75R-2 USA S/N 22E5200001-Up parts catalog PDF

HYDRAULIC PIPING (BOOM AND BUCKET PPC VALVE LINE) (1/2) (4200) in PC75R-2 USA S/N 22E5200001-Up. Diagram image and parts list.
