PC200EL-6K S/N K30001-UP

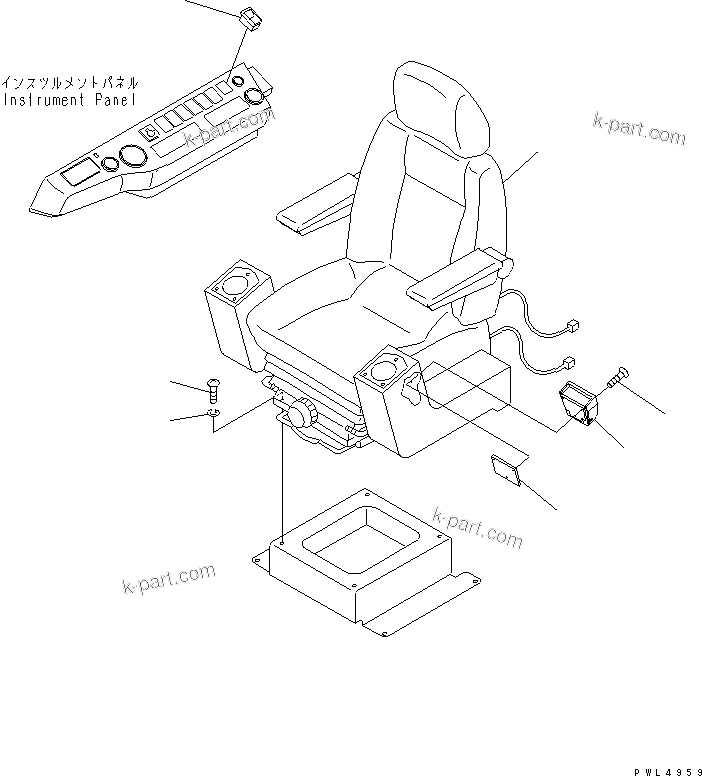

Komatsu parts book diagram for PC200EL-6K S/N K30001-UP: OPERATOR'S SEAT (FOR COMPRESSOR SEAT)(#K34001-)

? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	20Y-57-K1410	SEAT ASS'Y,(FOR COMPRESSOR SEAT)	1	SN: K34001-UP
	?	20Y-57-K1360	BOLT	4	SN: K34001-UP
	?	01602-00825	WASHER,SPRING	4	SN: K34001-UP
	?	20Y-06-29680	SWITCH	1	SN: K34001-UP
	?	20G-54-K1710	ASHTRAY	1	SN: K34001-UP
	?	20G-57-K1290	PLATE	1	SN: K34001-UP
	?	01224-40416	SCREW	3	SN: K34001-UP

Komatsu PC200EL-6K S/N K30001-UP parts catalog PDF

OPERATOR'S SEAT (FOR COMPRESSOR SEAT)(#K34001-) (K0110-01A2) in PC200EL-6K S/N K30001-UP. Diagram image and parts list.
