PC200EL-6K S/N K30001-UP

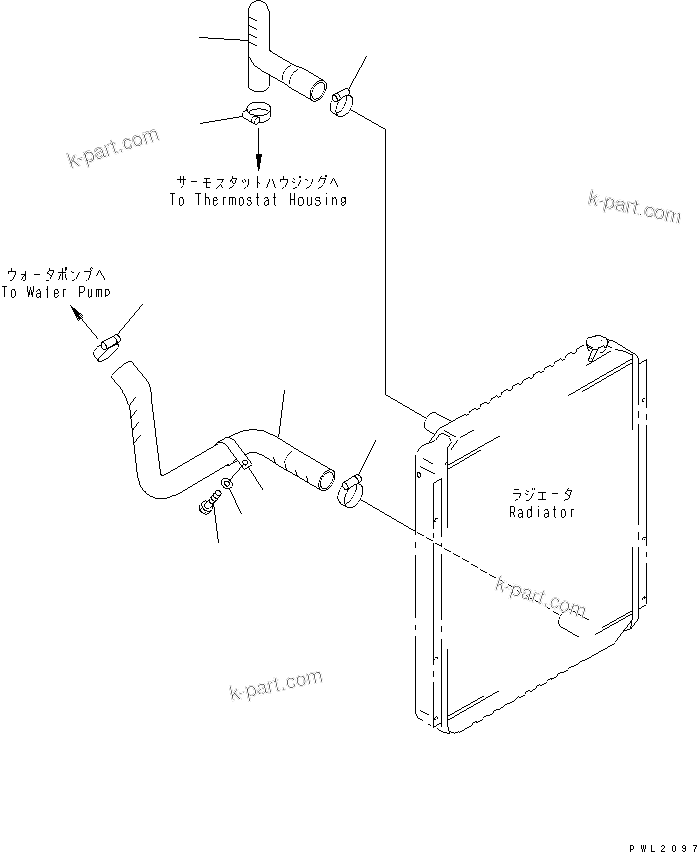

Komatsu parts book diagram for PC200EL-6K S/N K30001-UP: COOLING (PIPING)(#K32001-)

? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	20Y-03-K1380	HOSE	1	SN: K32001-UP
	?	07289-00055	CLAMP	2	SN: K32001-UP
	?	20Y-03-K1390	HOSE	1	SN: K32001-UP
	?	07289-00055	CLAMP	1	SN: K32001-UP
	?	07289-00070	CLAMP	1	SN: K32001-UP
	?	208-62-38370	CLIP	1	SN: K30001-UP
	?	01010-81025	BOLT	1	SN: K32001-UP
	?	01643-31032	WASHER	1	SN: K30001-UP

Komatsu PC200EL-6K S/N K30001-UP parts catalog PDF

COOLING (PIPING)(#K32001-) (C0100-02A0A) in PC200EL-6K S/N K30001-UP. Diagram image and parts list.
