PC200EL-6K S/N K30001-UP

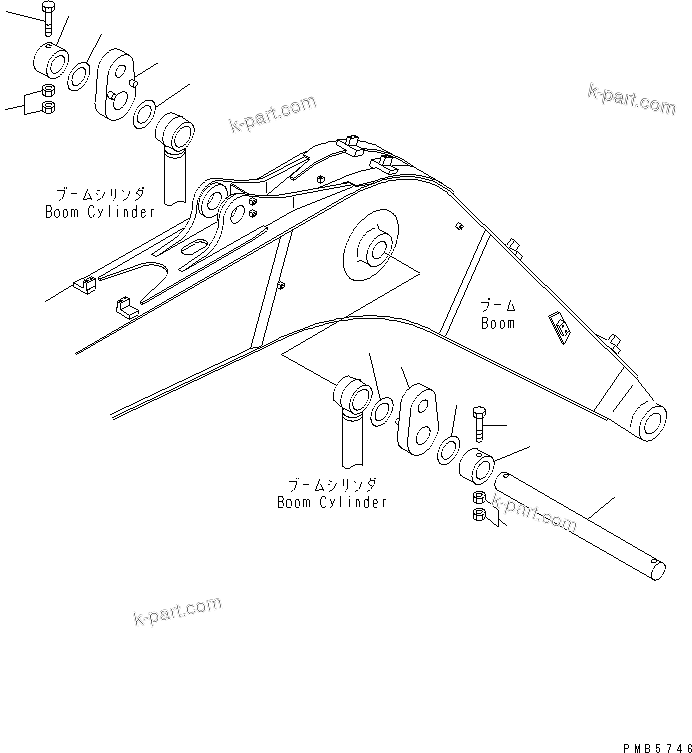

Komatsu parts book diagram for PC200EL-6K S/N K30001-UP: BOOM PIN (WITH LIFTING PIN)

? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	20Y-70-11390	SPACER ? 0.8MM	2	SN: K30001-UP
	?	20Y-70-11370	SPACER ? 1.5MM	3	SN: K30001-UP
	?	20G-70-K1140	PLATE	2	SN: K30001-UP
	?	20Y-70-11380	BOLT	2	SN: K30001-UP
	?	01580-12016	NUT	4	SN: K30001-UP
	?	20Y-70-K1280	PIN	1	SN: K30001-UP
	?	20Y-70-K1270	PLATE	2	SN: K30001-UP

Komatsu PC200EL-6K S/N K30001-UP parts catalog PDF

BOOM PIN (WITH LIFTING PIN) (T1125-01A1) in PC200EL-6K S/N K30001-UP. Diagram image and parts list.
