Diagram image 1 of 7

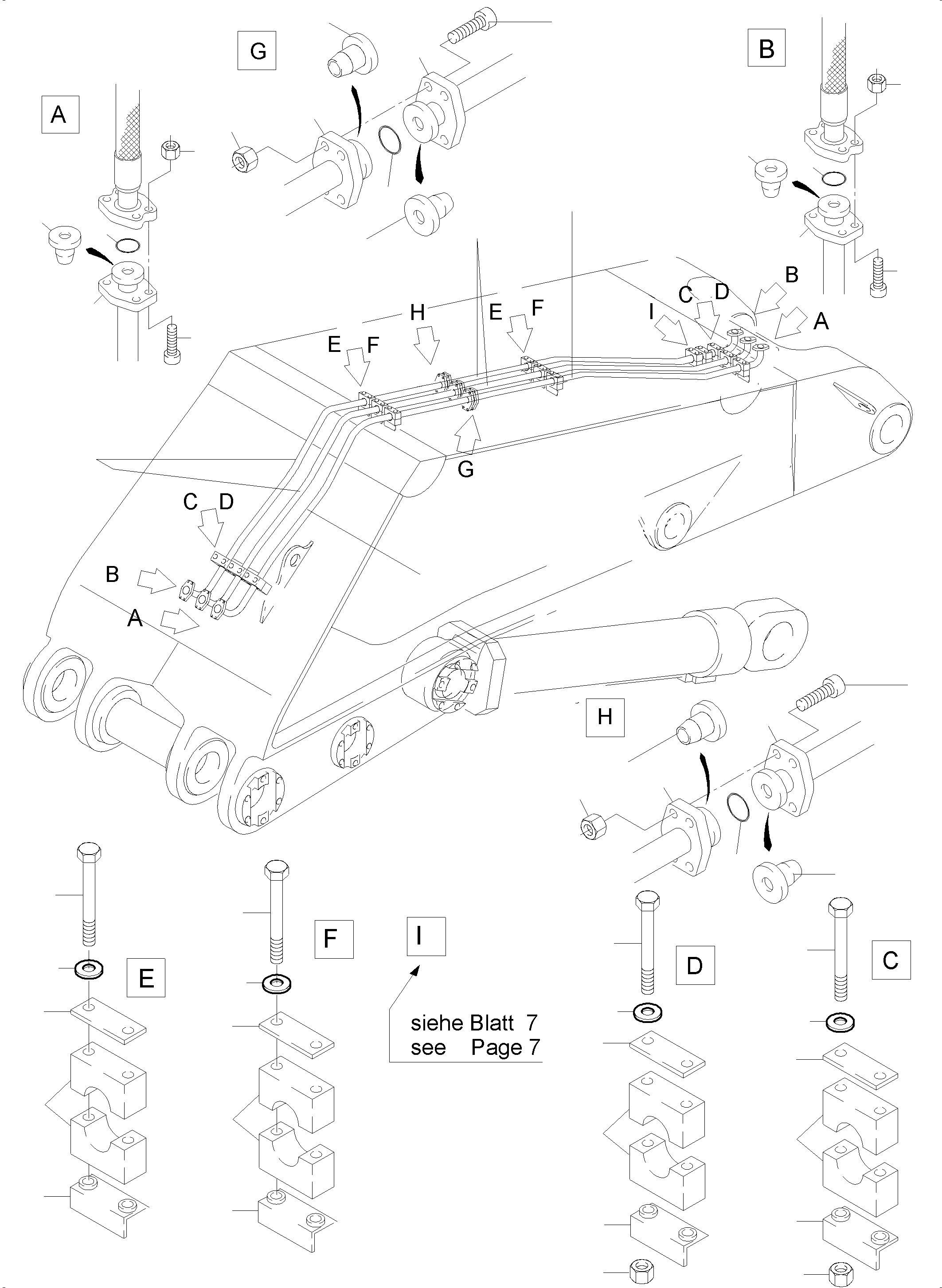

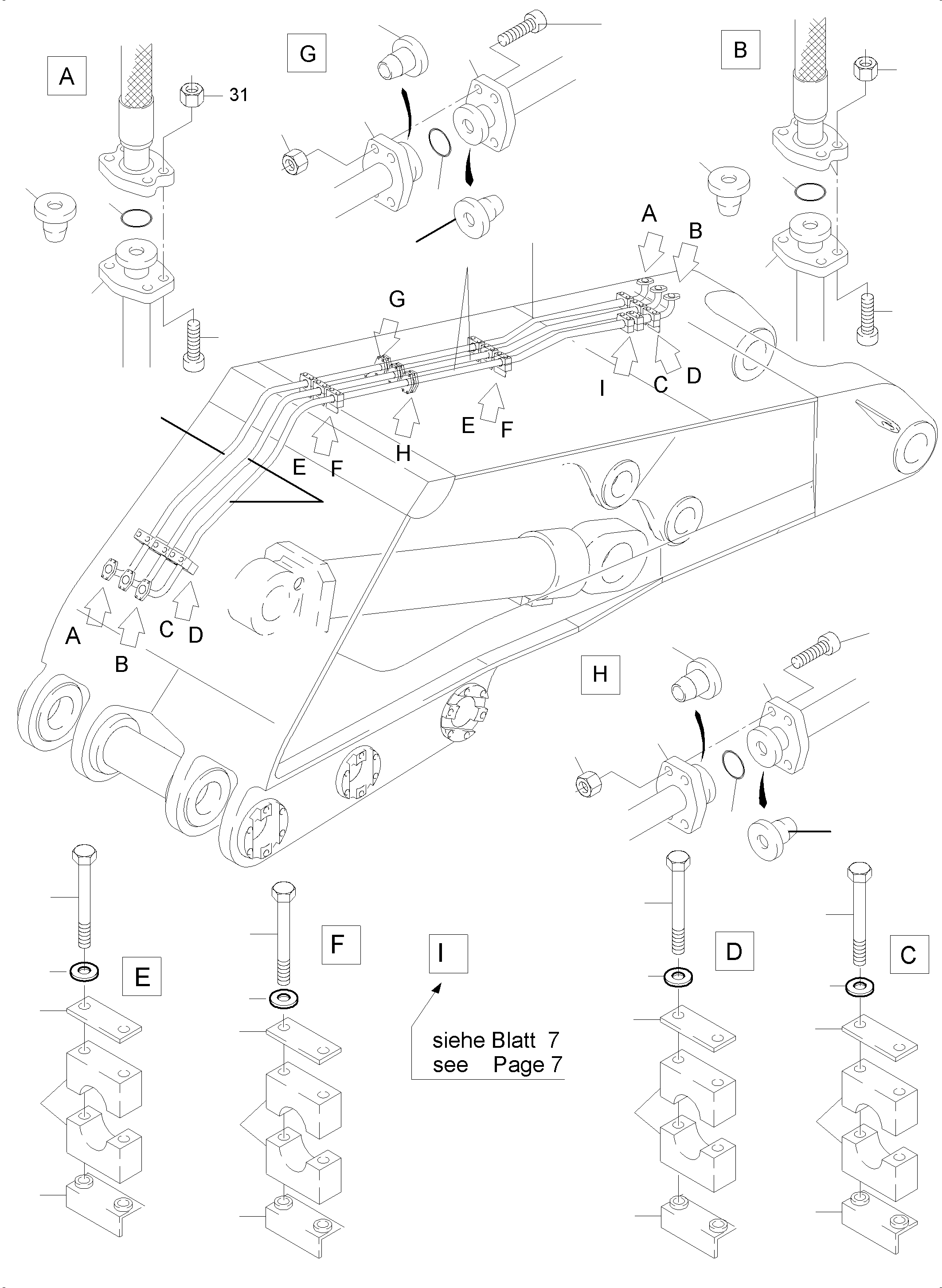

PC4000-6 S/N 08210

103 103 103 103 112 118 130 134 20 21 21 21 21 23 24 26 27 28 28 29 29 30 31 32 33 33 34 36 36 37 37 47 48 49 49 50 50 51 52 60 60 60 60 72 72 72 72

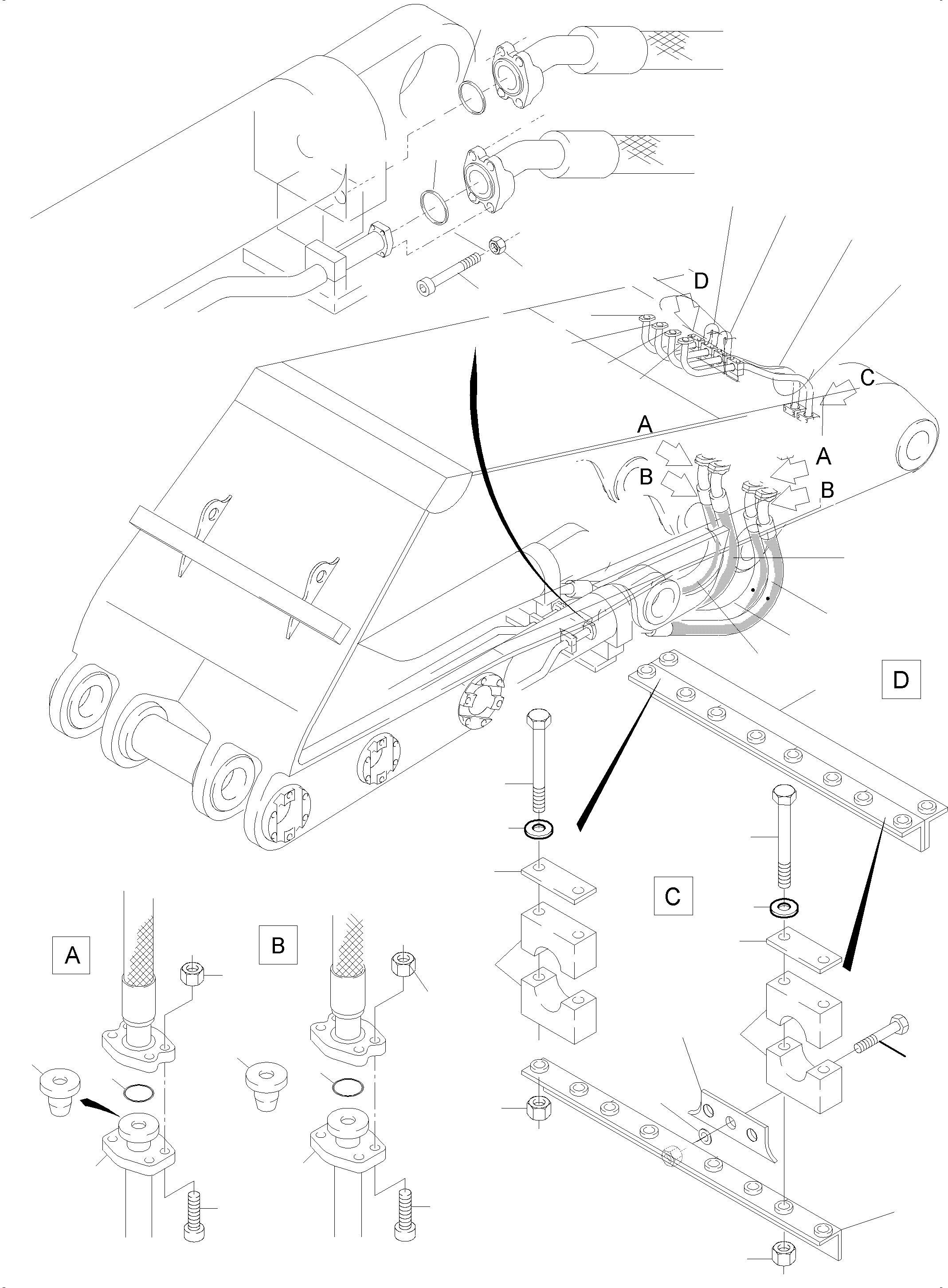

PC4000-6 S/N 08210

103 103 103 103 113 118 131 134 20 21 21 21 21 23 24 25 25 26 27 28 28 29 29 30 31 31 32 33 33 34 36 36 37 37 47 48 49 49 50 50 51 52 60 60 60 60 72 72 72 72

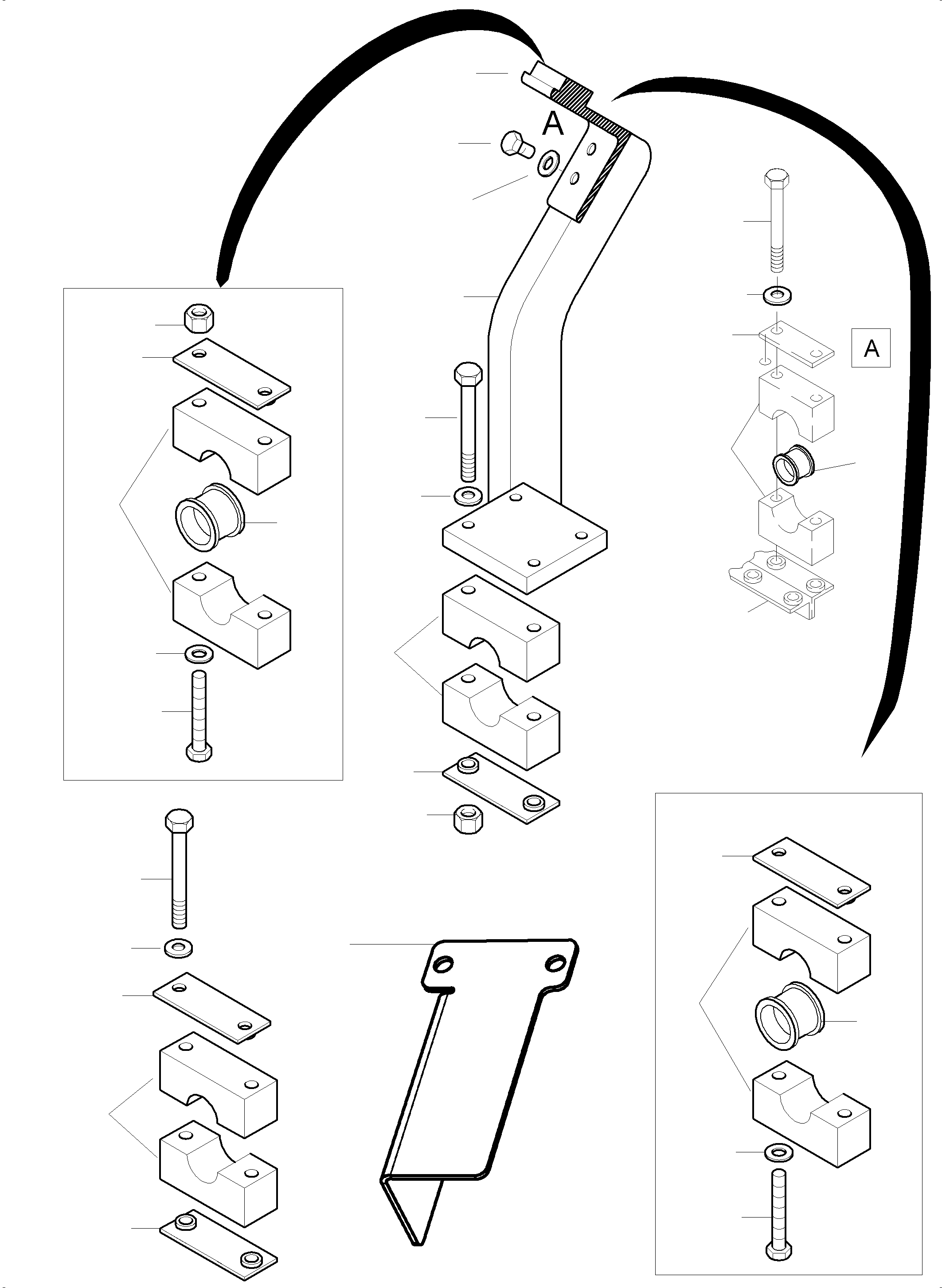

PC4000-6 S/N 08210

100 104 114 114 115 115 132 132 133 133 20 21 21 22 22 24 25 25 27 28 29 29 30 31 32 33 34 34 36 36 37 37 42 42 45 45 53 54 60 60 60

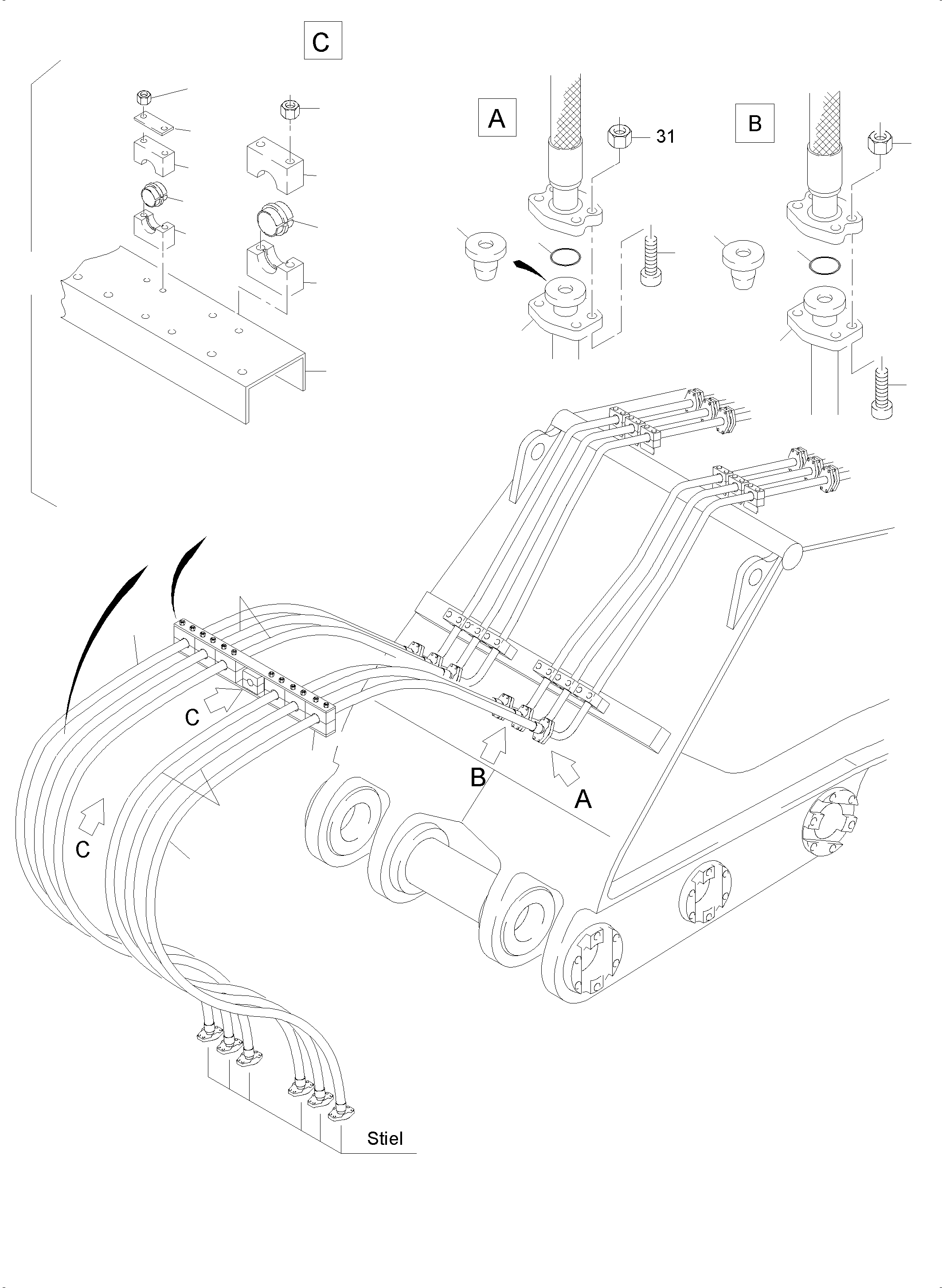

PC4000-6 S/N 08210

140 141 141 142 146 147 148 27 28 29 30 32 33 34 36 37 39 39 43 43 46 46 73 73 74 75

PC4000-6 S/N 08210

01 02 03 04 05 06 06 07 08 09 10 11 12 13 14 15 16 16 17 17 17 18 18 19 19 20 90 91 92 93

PC4000-6 S/N 08210

101 102 110 111 116 117 20 20 21 21 27 28 29 29 30 31 35 38 40 40 41 41 60 60 72 72

PC4000-6 S/N 08210

17 20 21 21 22 22 24 25 25 55 56 57 58 59 60 60 60 60 61 62 63 64 65 66 67 68 69 69 70 71 73 74 75 76 77 78

#	Part Number	Partname	Quantity
01	900 010 40	Boom weldment	1
02	900 653 40	Pin (Standard)	2
02	913 601 40	Pin (Low Temperature)	2
03	900 654 40	Pin (Standard)	2
03		Pin (Low Temperature)	2
04	900 655 40	Pin (Standard)	2
04		Pin (Low Temperature)	2
05	900 690 40	Bushing	2
06	900 656 40	Flanged bush	4
07	900 750 40	Axle stirrup	4
08	900 657 40	Axle stirrup	4
09	872 463 40	Axle stirrup	4
10	900 658 40	Cover	2
11	890 988 40	Cover	2
12	900 659 40	Cover	2
13	890 987 40	Ring	2
14	900 660 40	Ring	2
15	900 661 40	Ring	2
16	307 829 99	Bolt	32
17	517 123 98	Washer	51
18	907 020 40	Seal ring	4
19	907 024 40	Seal ring	4
20	504 445 98	Clamp set	36
21	534 008 99	Cover plate	73
22	510 151 98	Bolt	70
23	504 446 98	Clamp set	4
24	502 976 98	Clamp set	24
25	332 334 99	Nut	76
26	502 977 98	Clamp set	8
27	504 448 98	Flange	16
28	504 449 98	Collar ring	18
29	385 243 40	Flange seal	24
30	319 313 99	Bolt	64
31	504 662 98	Nut	72
32	500 127 98	Flange	12
33	500 203 98	Collar ring	16
34	319 292 99	Bolt	56
35	319 305 99	Bolt	24
36	356 209 40	Flange seal	18
37	332 355 99	Nut	75
38	911 138 40	Angle	2
39	518 501 98	Hose assy. DN 50x2850	2
40	940 384 40	Hose assy. DN 50x3000	2
41	940 376 40	Hose assy. DN 50x2450	2
42	940 323 40	Hose assy. DN 50x2600	2
43	516 641 98	Hose assy. DN 40x2850	4
45	515 843 98	Hose assy. DN 40x2600	2
46	952 721 40	Distribution block assy.	1
47	502 538 98	Bolt	8
48	504 461 98	Collar ring	2
49	504 898 98	Flange	4
50	501 673 98	Flange	8
51	308 423 99	Bolt	16
52	501 898 98	Collar ring	4
53	307 826 99	Bolt	3
54	952 787 40	Angle	1
55	502 371 98	Clamp set	6
56	502 626 98	Grommet	6
57	308 616 99	Bolt	12
58	937 611 40	Angle	1
59	307 806 99	Bolt	8
60	517 118 98	Washer	162
61	937 609 40	Retainer	4
62	500 398 98	Weld on plate	8
63	509 064 98	Clamp set	8
64	505 212 98	Grommet	8
65	304 352 99	Bolt	16
66	943 158 40	Protection plate	3
67	935 549 40	Protection plate	1
68	935 546 40	Protection plate	2
69	534 009 99	Weld on plate	11
70	502 658 98	Clamp set	-2
71	943 171 40	Protection plate	2
72	308 613 99	Bolt	72
73	502 618 98	Clamp set	2
74	504 926 98	Grommet	2
75	534 004 99	Cover plate	2
76	308 581 99	Bolt	2
77	500 801 98	Washer	2
78	952 731 40	Angle	4
90	915 899 40	Pin (Cold weather design)	1
91	650 426 40	Axle stirrup	2
92	308 407 99	Bolt	4
93	340 471 99	Washer	4
100	911 174 40	Retainer	1
101	909 202 40	Angle l.h.	1
102	909 203 40	Angle r.h.	1
103	890 939 40	Angle	4
104	653 125 40	Angle	1
110	769 895 73	Pipe assy. Ш 65	1
111	769 896 73	Pipe assy. Ш 65	1
112	770 147 73	Pipe assy. Ш 65	1
113	770 148 73	Pipe assy. Ш 65	1
114	769 899 73	Pipe assy. Ш 65	1
115	769 900 73	Pipe assy. Ш 65	1
116	769 901 73	Pipe assy. Ш 65	1
117	769 902 73	Pipe assy. Ш 65	1
118	770 151 73	Pipe Ш 65 assy.	2
130	770 149 73	Pipe assy. Ш 50	2
131	770 150 73	Pipe assy. Ш 50	2
132	769 905 73	Pipe assy. Ш 50	1
133	769 906 73	Pipe assy. Ш 50	1
134	770 152 73	Pipe Ш 50 assy.	4
140	505 212 98	Grommet 68	2
141	504 853 98	Clamp set	6
142	949 446 40	Distribution block assy.	1
146	334 601 99	Nut	12
147	507 037 98	Nut	2
148	515 846 98	Grommet 57	4

Komatsu PC4000-6 S/N 08210 parts catalog PDF

BULLCLAM BUCKET BOOM 7,15 M (355-4000e) in PC4000-6 S/N 08210. Diagram image and parts list.
