Diagram image 1 of 3

PC4000-6 S/N 08210

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08210

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08210

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?		Pressure relief valve	1	991-0413
?	386 698 40	Valve block	1
?	954 130 40	Oil tank MB	1
?	389 472 40	Seal	1
?	316 213 99	Washer	4
?	304 327 99	Bolt	4
?	389 473 40	Seal	1
?	938 209 40	Standpipe assy.	1
?	316 212 99	Washer	8
?	500 333 98	Bolt	8
?	945 996 40	Grating	1
?	317 319 40	Threaded block	4
?	317 318 40	Wing nut, plastic	4
?	502 354 98	Bolt	4
?	592 810 40	Clamp	1
?	939 445 40	Angle	1
?	334 599 99	Nut	4
?	501 323 98	Washer	2
?	081 495 40	Oil drain coupling	1
?	081 496 40	Protection cap	1
?	006 739 98	O-ring	6
?	251 787 40	Cover	6
?	346 510 99	Lock washer	44
?	180 477 40	Plug	6
?	324 550 40	Plug	1
?	907 564 40	Oil level glass	2
?	972 099	O-ring	2
?	511 602 98	Banjo bolt	2
?	904 748 40	Butterfly valve DN 200	1
?	500 716 40	Flange	1
?	440 723 40	Compensator DN 200	1
?	308 670 99	Bolt	4
?	340 470 99	Washer	12
?	308 675 99	Bolt	6
?	307 845 99	Bolt	2
?	334 686 99	Nut	6
?	769 653 73	Limit switch	1
?	515 812 98	Test coupling	1
?	173 494 40	Plug	1
?		Filter	2	090-5586
?		Return oil filter	4	991-0349
?	308 874 99	Bolt	5
?	910 951 40	Filter cover	5
?	910 954 40	Bushing	5
?	366 504 40	Compression spring	5
?	502 119 98	O-ring	5
?	910 948 40	Cover	5
?	436 040 40	U-bolt	1
?	630 086 40	U-bolt	1
?	304 309 99	Bolt	2
?	515 820 98	Hose DN 12 x 530	1
?	916 745 40	Cover	1
?	916 746 40	Seal	1
?	307 752 99	Bolt	48
?	916 747 40	Flange	1
?	940 022 40	Plug	1
?	516 235 98	Socket	1
?	516 160 98	Socket	1
?	515 553 98	Hose DN 10 x 700	1
?	516 175 98	Socket	1
?	551 987 40	Socket	2
?	371 459 99	Socket	2
?	516 157 98	Union	2
?	374 436 99	Socket	2
?	255 694 99	Plug	2
?		Return oil filter	1	991-0351
?	940 730 40	4/2 way directional spool valve	1
?	180 325 40	Base plate	1
?	933 881 40	Retainer	1
?	514 340 98	Screw	4
?	319 132 99	Screw	4
?	507 025 98	Nut	2
?	516 041 98	Hose DN 10 x 400	1
?	953 320 40	Retainer	1
?	350 768 99	Washer	4
?	909 072 40	Rod	1
?	350 562 99	Grease nipple	1
?	345 052 99	Dowel pin	3
?	901 859 40	Standpipe top	1
?	938 503 40	Standpipe lower	1
?	938 504 40	Standpipe middle	1
?	941 102 40	Filter	1
?	389 473 40	Seal	3
?	308 668 99	Bolt	8
?	308 666 99	Bolt	8
?	652 801 40	Plate	1
?	502 631 98	Clamp set	1
?	533 989 99	Weld on plate	1
?	509 875 98	Thread pin	4
?	507 596 98	Washer	4
?	340 507 99	Washer	4
?	334 599 99	Nut	4
?	180 477 40	Plug	1
?	904 620 40	Decal oil level	1
?	307 779 99	Bolt	2
?	255 171 40	Plug	1
?	171 260 40	Plug	1
?	255 985 40	Plug	1
?	180 113 40	Plug	1
?	515 220 40	Nut	3

Komatsu PC4000-6 S/N 08210 parts catalog PDF

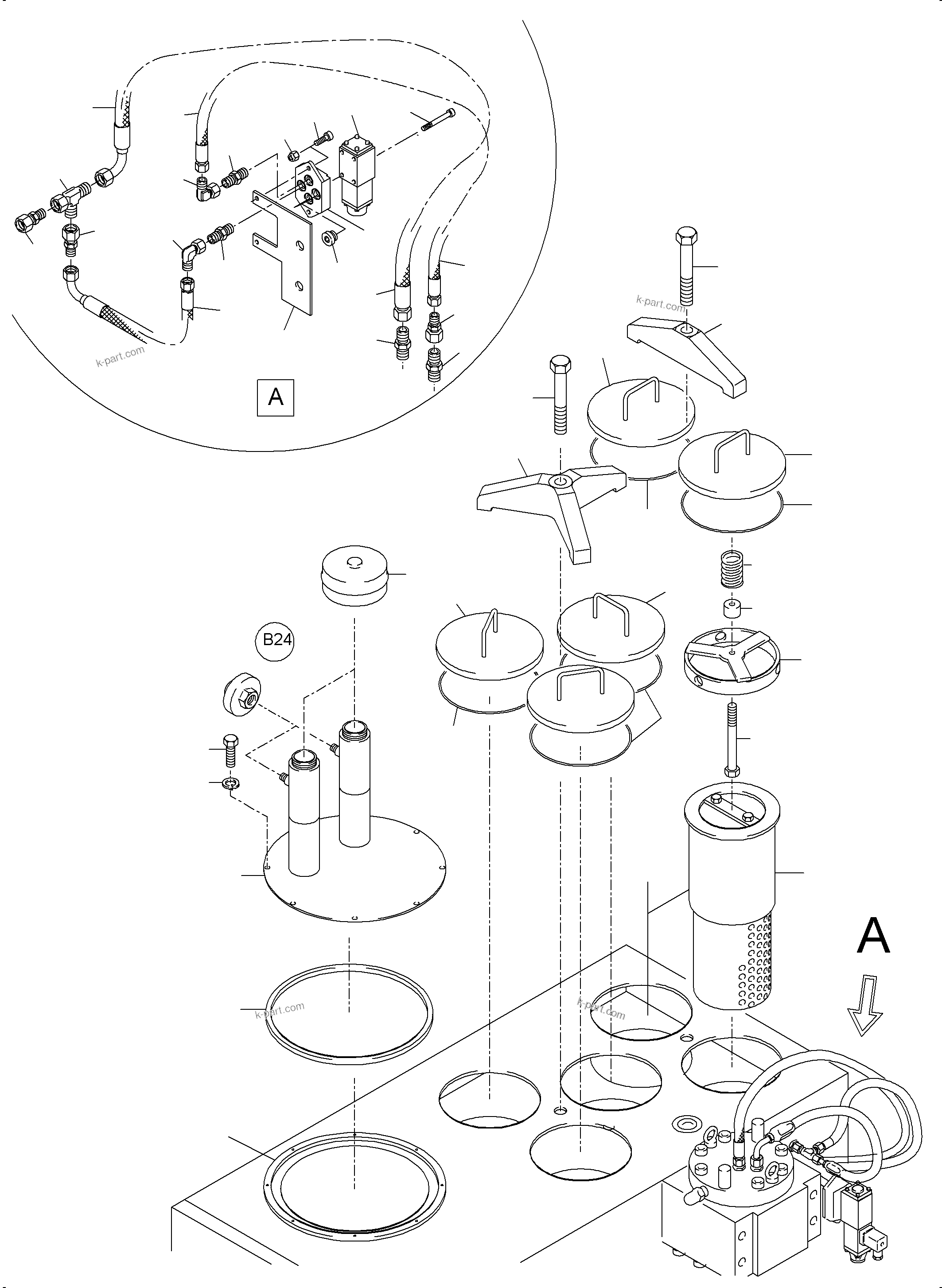

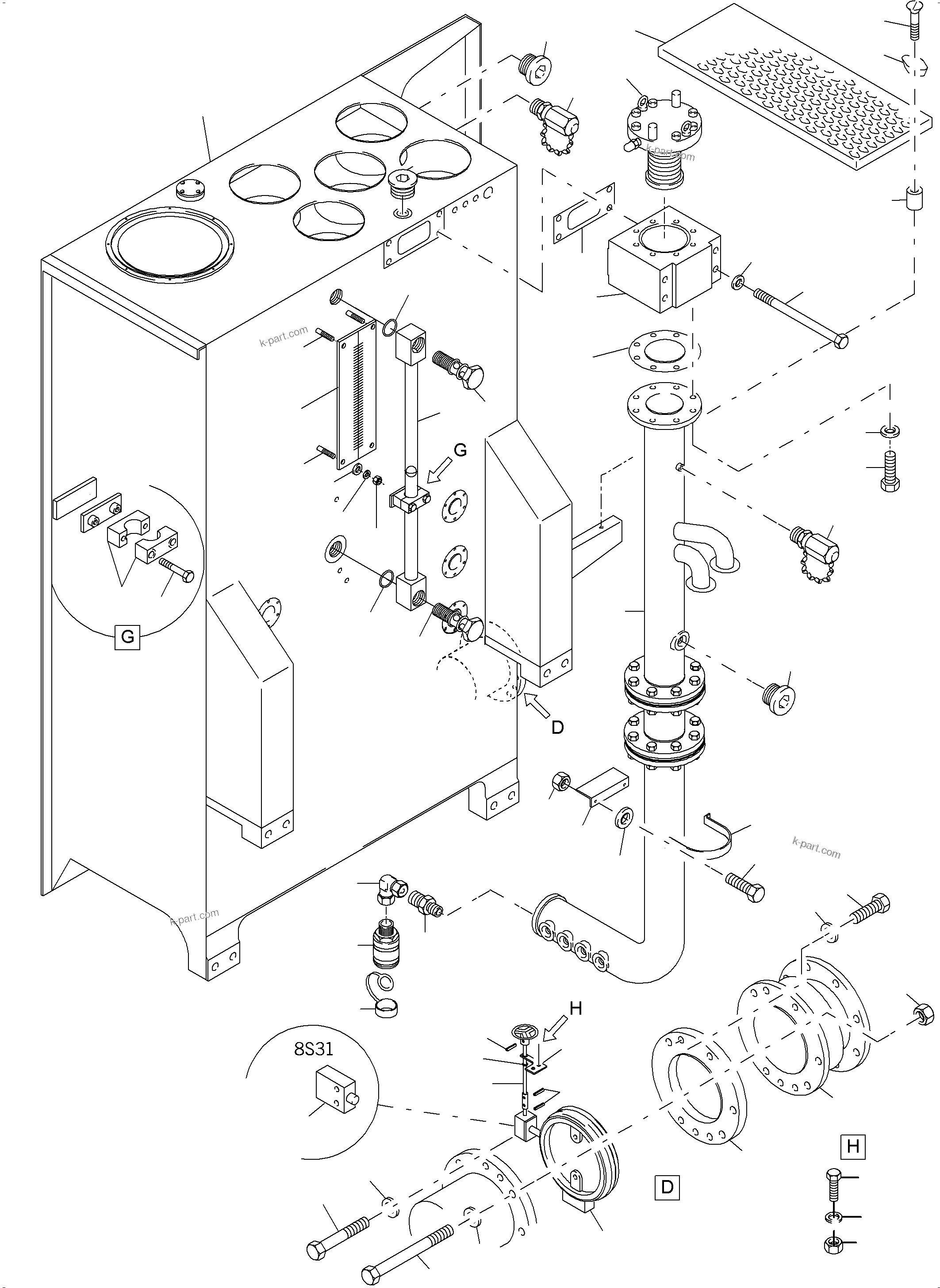

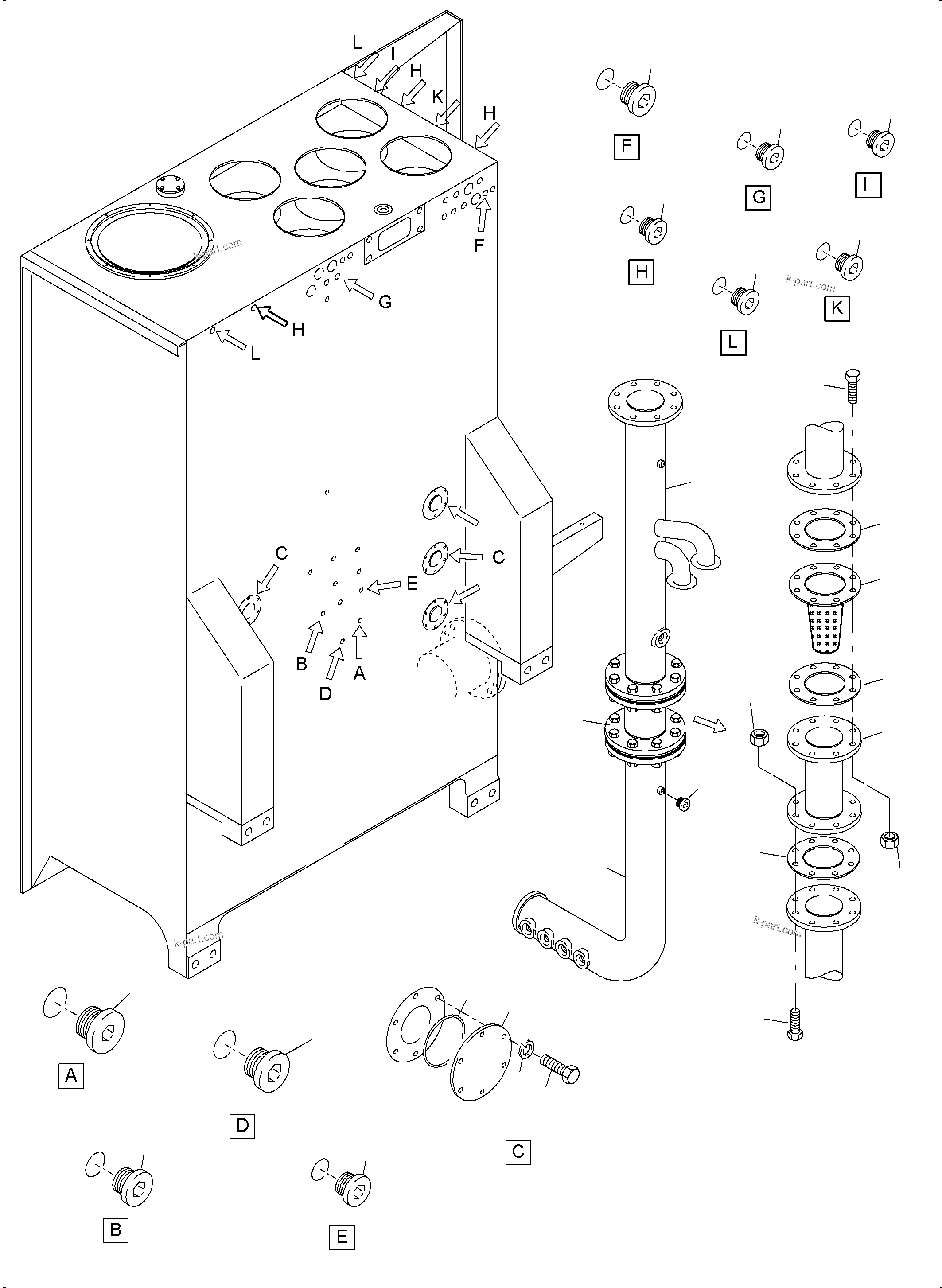

MAIN OIL TANK (355-1801l) in PC4000-6 S/N 08210. Diagram image and parts list.
