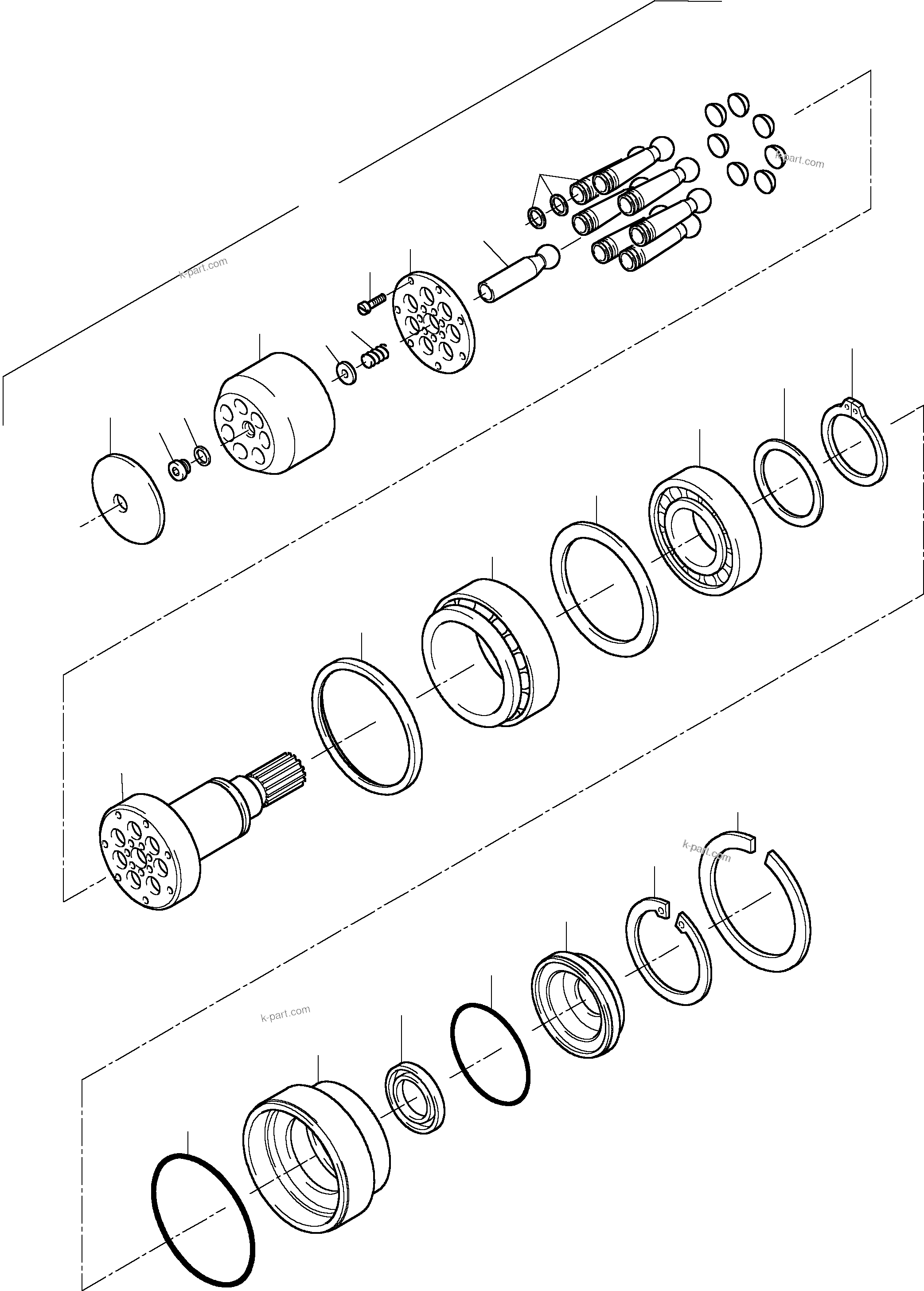

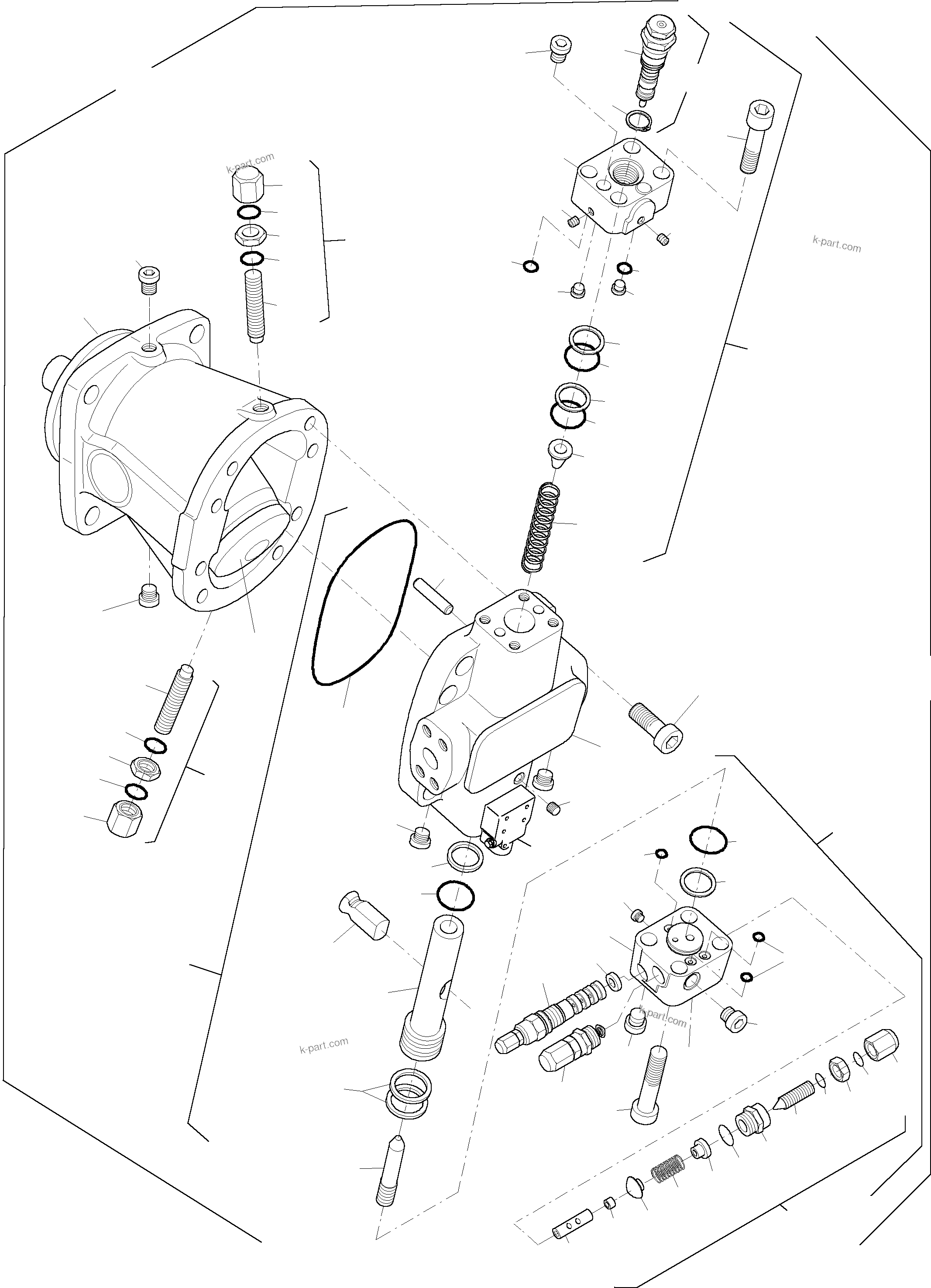

Diagram image 1 of 2

PC5500-6 S/N 15017

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15017

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	910 737 40	Hydr. motor assy.	1
?	767 316 73	Housing	1
?	767 040 73	Plug	1
?	767 039 73	Plug	1
?	768 893 73	Valve	1
?	768 894 73	Transmission assy. consist. of fig-nos. 07-30	1
?	757 757 73	Driving flange	1
?	757 300 73	Piston with rings	7
?	757 296 73	Cylinder	1
?	767 318 73	Control lense	1
?	757 299 73	Pivot	1
?	756 371 73	Withdrawal plate	1
?	757 305 73	Race	1
?	757 306 73	Sealing flange	1
?	762 750 73	Adjusting ring	1
?	757 298 73	Spring	1
?	757 297 73	Washer	1
?	768 895 73	Adjusting disc set	1
?	757 294 73	Spacer screw	1
?	757 302 73	Spacer	1
?	757 303 73	Roller bearing	1
?	508 011 98	Roller bearing	1
?	762 769 73	Shaft seal	1
?	514 025 98	O-ring	1
?	514 045 98	O-ring	1
?	998 898	Circlip	1
?	342 679 99	Circlip	1
?	342 570 99	Circlip	1
?	508 025 98	Shim ring	1
?	319 241 99	Bolt	14
?	768 896 73	Displacement section consist. of fig-nos. 32-35	1
?	767 320 73	Thread pin	1
?	758 192 73	Cap nut	1
?	757 878 73	Nut	2
?	506 627 98	O-ring	4
?	768 897 73	Displacement section consist. of fig-nos. 34,35,37,38	1
?	756 513 73	Thread pin	1
?	757 877 73	Cap nut	1
?	768 898 73	Adjustment assy. consist. of fig-nos. 42-44	1
?	768 899 73	Adjuster assy. consist. of fig-nos. 45-57	1
?	768 900 73	Control part assy. consist. of fig-nos. 58-70	1
?	768 901 73	Cover assy. consist. of fig-nos. 74-90	1
?	768 902 73	Cover plate	1
?	767 327 73	Piston	1
?	767 328 73	Regulation journal	1
?	753 131	Thread pin	1
?	756 795 73	Quadring	2
?	516 812 98	O-ring	1
?	414 797 40	Seal ring	1
?	509 421 98	O-ring	1
?	514 193 98	Parallel pin	2
?	319 305 99	Bolt	8
?	964 736	Breaking plug	4
?	767 039 73	Plug	2
?	767 429 73	Seal ring	2
?	768 903 73	Spring plate	1
?	768 904 73	Spring	1
?	767 709 73	Valve insert consist. of fig-nos. 71-73	1
?	767 330 73	Control housing	1
?	767 331 73	Adjustable non-return valve	2
?	321 597 99	Bolt	4
?	767 405 73	O-ring	2
?	767 724 73	O-ring	2
?	767 345 73	O-ring	2
?	655 377 40	Support ring	2
?	999 046	Breaking plug	1
?	767 039 73	Plug	1
?	767 429 73	Seal ring	1
?	767 727 73	Valve insert	1
?	342 524 99	Circlip	1
?	768 905 73	Cover	1
?	319 289 99	Bolt	4
?	767 039 73	Plug	3
?	767 095 73	Breaking plug	1
?	964 736	Breaking plug	1
?	767 724 73	O-ring	5
?	767 345 73	O-ring	1
?	655 377 40	Support ring	1
?	804 932 73	Nozzel	1
?	758 207 73	Spacer	1
?	768 906 73	Valve insert	1
?	768 907 73	Regulation valve assy. consist. of fig-nos. 91-101	1
?	758 209 73	Nut	2
?	258 210 73	Nut	2
?	767 163 73	Seal ring	4
?	762 899 73	Thread pin	2
?	758 211 73	Plug	2
?	767 092 73	O-ring	2
?	804 856 73	Spring plate	2
?	804 855 73	Compression spring	2
?	804 854 73	Spring plate	2
?	804 852 73	Piston	1
?	804 853 73	Throttle screw	1

Komatsu PC5500-6 S/N 15017 parts catalog PDF

HYDRAULIC MOTOR (991-0355) in PC5500-6 S/N 15017. Diagram image and parts list.
