SAA4D95LE-5A S/N 500001-UP

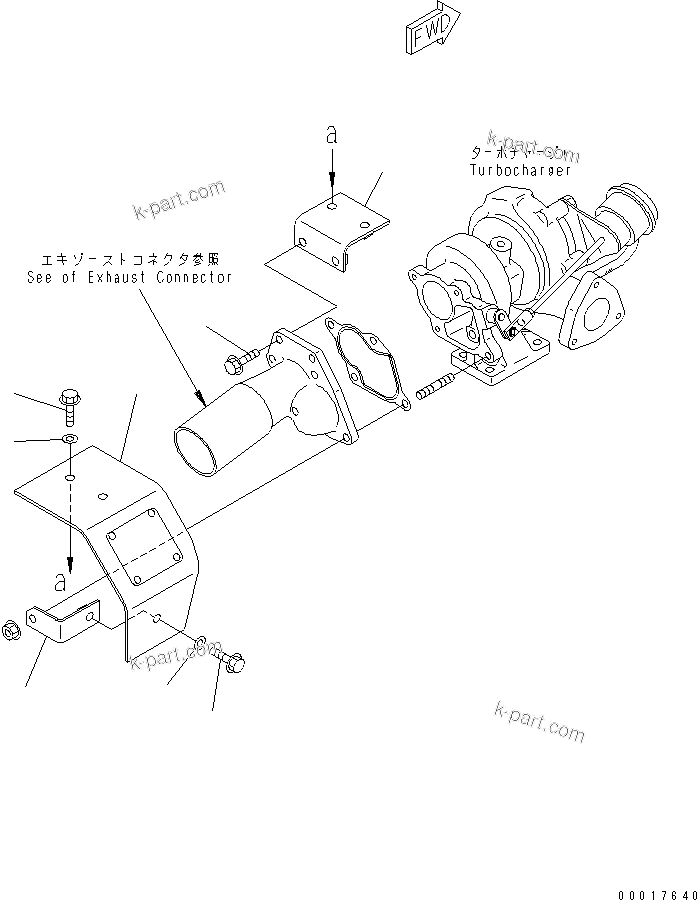

Komatsu parts book diagram for SAA4D95LE-5A S/N 500001-UP: HEAT SHIELD

? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	6208-81-8810	COVER,SHIELD	1	SN: 500001-UP
	?	6208-81-8820	BRACKET	1	SN: 500001-UP
	?	01435-00830	BOLT	2	SN: 500001-UP
	?	01435-00820	BOLT	3	SN: 500001-UP
	?	154-61-16570	WASHER	3	SN: 500001-UP
	?	6208-81-8830	BRACKET	1	SN: 500001-UP

Komatsu SAA4D95LE-5A S/N 500001-UP parts catalog PDF

HEAT SHIELD (A1570-01G4) in SAA4D95LE-5A S/N 500001-UP. Diagram image and parts list.
