6D125-1W S/N 10001-UP

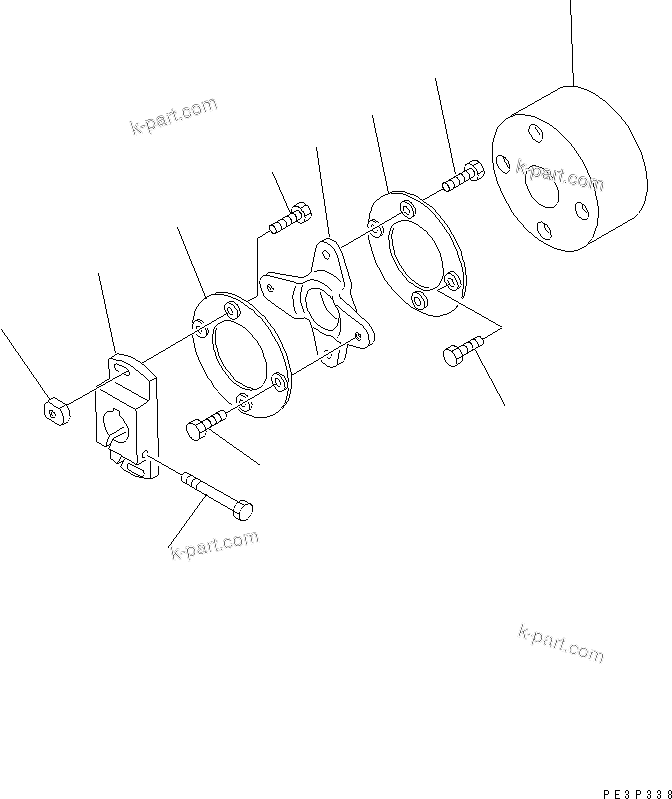

Komatsu parts book diagram for 6D125-1W S/N 10001-UP: FUEL INJECTION PUMP (COUPLING)(#15216-)

? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	6150-71-1313	INJECTION PUMP ASS'Y	1	SN: 34765-UP
	?		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.0451A,0461A,0462A,0471A AND FIGS.0481.	-1
	?	6150-71-1312	INJECTION PUMP ASS'Y	1	SN: 15216-34764
	?		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.0451A,0461,0462,0471A AND 0481.	-1
	?		THE DENSO PART NUMBER IS THAT ND IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW.	-1
	?	ND092500-0431	COUPLING ASS'Y	1	SN: 15216-UP
	?	ND092415-0610	FLANGE,COUPLING	1	SN: 15216-UP
	?	ND092437-0270	COUPLING,CROSS	1	SN: 15216-UP
	?	ND092460-0051	PLATE SUB ASS'Y	2	SN: 15216-UP
	?	ND949040-6640	BOLT	2	SN: 15216-UP
	?	ND949040-6361	BOLT	6	SN: 15216-UP
	?	ND092433-0150	BOLT	1	SN: 15216-UP
	?	ND092431-0130	NUT	2	SN: 15216-UP
	?	ND092551-0430	BLOCK,COUPLING	1	SN: 15216-UP

Komatsu 6D125-1W S/N 10001-UP parts catalog PDF

FUEL INJECTION PUMP (COUPLING)(#15216-) (0471A) in 6D125-1W S/N 10001-UP. Diagram image and parts list.
