3D66-1KB S/N 00613-UP

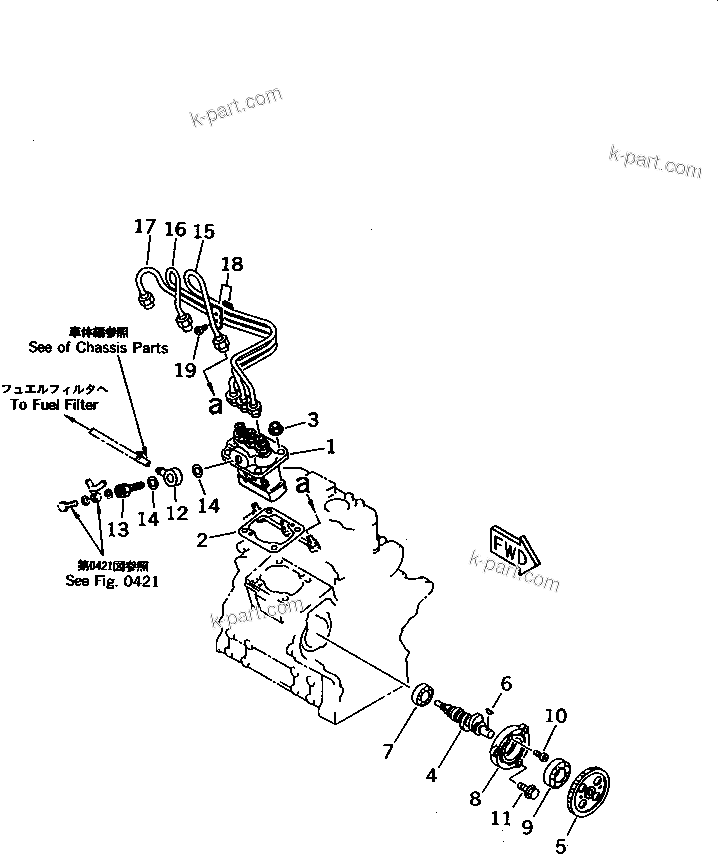

Komatsu parts book diagram for 3D66-1KB S/N 00613-UP: FUEL INJECTION PUMP AND PIPING

	#	Part Number	Partname	Quantity	Options	Reference
	?	YM719246-51100	INJECTION PUMP A.,(SEE FIG.0451)	1	SN: 00613-UP
	?	YM119620-01950	SHIM ASS'Y	1	SN: 00613-UP
	?	YM194990-22050	NUT	4	SN: 00613-UP
	?	YM119225-14200	CAM ASS'Y	1	SN: 00613-UP
	?	YM119260-25900	GEAR	1	SN: 00613-UP
	?	YM22512-040120	KEY	1	SN: 00613-UP
	?	YM24102-063034	BEARING	1	SN: 00613-UP
	?	YM119660-01821	BEARING	1	SN: 00613-UP
	?	YM24101-062034	BEARING	1	SN: 00613-UP
	?	YM26587-080102	SCREW	1	SN: 00613-UP
	?	YM26106-060162	BOLT	3	SN: 00613-UP
	?	YM101304-59020	JOINT	1	SN: 00613-UP
	?	YM119650-59200	BOLT,JOINT	1	SN: 00613-UP
	?	YM104200-59170	GASKET (KIT)	2	SN: 00613-UP
	?	YM119260-59830	PIPE,INJECTION ? NO.3	1	SN: 00613-UP
	?	YM119260-59820	PIPE,INJECTION ? NO.2	1	SN: 00613-UP
	?	YM119225-59810	PIPE,INJECTION ? NO.1	1	SN: 00613-UP
	?	YM129150-59120	CLAMP ASS'Y	1	SN: 00613-UP
	?	YM129150-59131	BOLT	2	SN: 00613-UP

Komatsu 3D66-1KB S/N 00613-UP parts catalog PDF

FUEL INJECTION PUMP AND PIPING (0401) in 3D66-1KB S/N 00613-UP. Diagram image and parts list.
